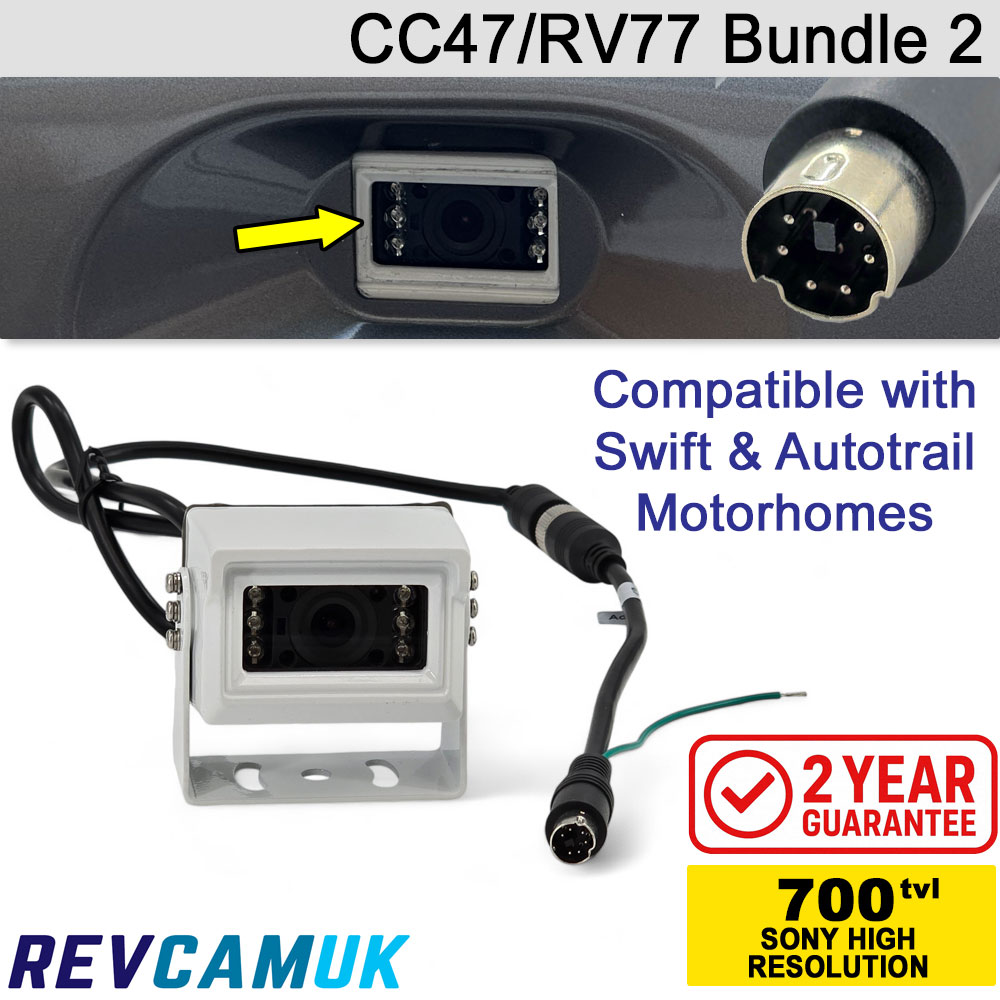

 Replacement Compatible Bundle to replace faulty Swift RV77/CC-47 Single 6 Pin PS/2 Reversing Camera

If you need to replace a faulty RV77 / CC-47 Reversing Camera, originally fitted to some Swift, Autotrail, or Bessacarr Motorhomes, then this is one of the bundles we have supplied customers with for many years. It is worth mentioning that our reversing camera has slightly different dimensions from the original camera. In this bundle, we will supply an adaptor cable to go from our 4-pin screw connector to the 6-pin PS2 connector that is fitted to the original cable. Our adaptor has been wired up the same way as the original was. The adaptor cable has a trigger wire added; if the original camera had an orange trigger lead connected at the back (to reverse feed), then you will need to connect our trigger wire to this (if not, insulate this wire).

We do not recommend trying these on any other system as the pin-outs may be different, we will not be held responsible for experimenting by trial and error with this adaptor/camera bundle. This works to replace the following original equipment supplier's (Sargent Electrical) reversing cameras :

RV77 Reversing Camera (Wysco) aka CC-47-L

If you have a camera with a plastic body (not metal), then you can remove the bracket from our CAM361W camera, open up the original camera, remove the parts inside, then sealant adhesive the camera inside so that the camera points out of the original hole. See image below :

Big thanks to Hamish for sending in his photo below. He chose to mount the camera on the outside of the plastic pod. His description was : "The old camera was in the same housing as the photo you have sent me, I left the housing in place and marked up the alterations to the hole from the outside, once I had opened up the hole to the new camera size I push the camera in till the hing bracket was hard against the back of the panel, then I made a block spacer that push in behind the camera ideally sandwiching the camera in and fix it in place with two screws, I will silicone the edge to finish it off on the outside."
