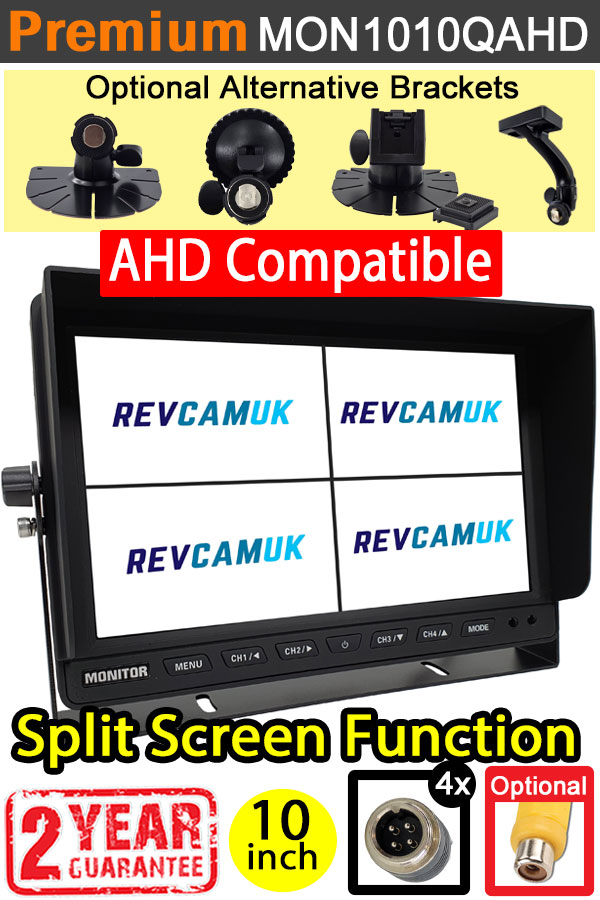

10 Inch Quad Input Monitor for 720P/960P/1080P AHD reversing / side / rear view cameras

4 Channel Split Screen Monitor that can accept up to 4 vehicle side view, rear view, and reversing cameras. Full-screen or split in one of various arrangements on screen. Advanced menu system to make alterations to settings. Full screen, 50/50 split, three-way, quad pattern split screen display. Can accept CVBS, 720P/960P/1080P AHD signal cameras. Heavy-Duty U Bracket. Instructions included, see download section of listing.

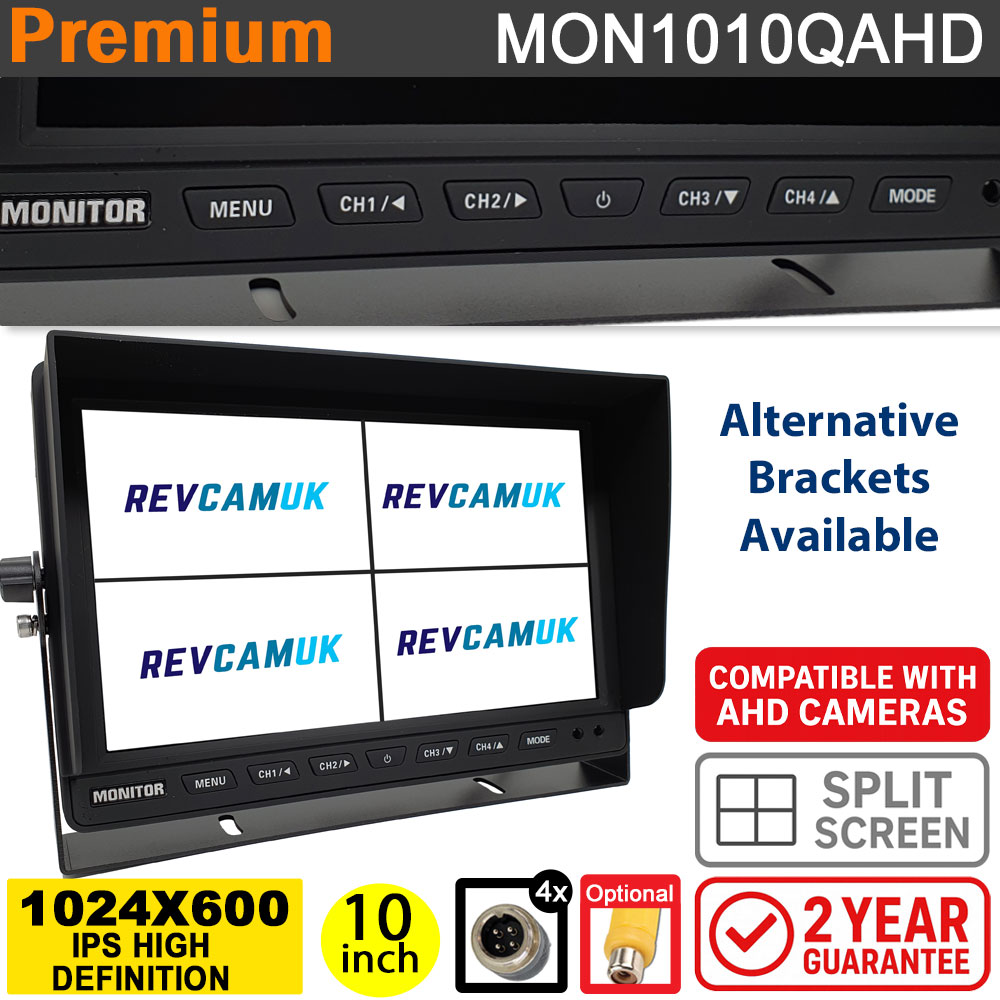

  • Extra Large Display - The 10 inch IPS panel display used on this monitor is a big screen. This size is suitable for larger vehicles with plenty of dash space for mounting.
  • Sharp, Bright, Colourful Image - Thanks to the 1024*600 IPS panel fitted, you can expect sharp, colourful images to be replicated on the screen, especially if they are paired up with decent high-definition side, rear view and reversing cameras. IPS panels are commonly used by PC gamers due to their great ability for colour replication and viewing angle.
  • Accepts up to 4 x 720P/960P/1080P High-definition Cameras - Use for anything from 1 camera to 4. We recommend using 4 of the same signal cameras as opposed to mix-and-match, i.e., all of our AHD stock runs 1080P PAL. We do not recommend mixing 1080P PAL cameras together with 720P NTSC; pick one signal type for best results.
  • Two Year Guarantee - In the unlikely event you should experience a fault within the first two years, we provide a guarantee that covers your monitor. We also like to look after you beyond this time, with low-cost spares and parts.
  • Various Split-Screen Options - This monitor allows you to split the image between your various cameras in a number of ways (see image or downloadable pdf instructions). This monitor even allows you to turn off splits that you don't use, thus making it easier/safer to go between various favourite arrangements whilst driving.
  • Heavy Duty Display - This monitor has been thoroughly tested in some of the harshest conditions. Both the standard def version we stock and this high def version (same factory/case etc.) has been used for years on a number of agricultural machinery, tractors, even a monster truck and some tanks. Tried and tested, this monitor carries on and on. The side mounting brackets help to keep the monitor stable, even when on very bumpy tracks.
  • Optional Alternative Brackets available - You can choose to use any of our brackets for reversing camera monitors with this monitor - using the rear channel.
  • Trigger Functions to Full Screen with Reverse/Side Indicators - Four trigger wires facilitate safe, hands-free monitoring whilst driving. Set time delays for triggers, which is useful when dealing with side cameras to avoid monitor flashing on and off with the indicator light. More than one trigger event at a time? No problem for this screen, which will turn all the channels being triggered into a split arrangement automatically.
  • Increase Cyclist and Pedestrian Safety - Because you can add so many cameras to one screen, this helps to increase the visibility and awareness of pedestrians and cyclists around the vehicle.
  • 12V and 24V Input - Whether you have a 12V Van/Motorhome, or a 24V Truck/HGV/Lorry, this system will regulate the voltage so that 12V is sent back to the cameras via the 4 pin aviation screw connector inputs.
Detailed Images

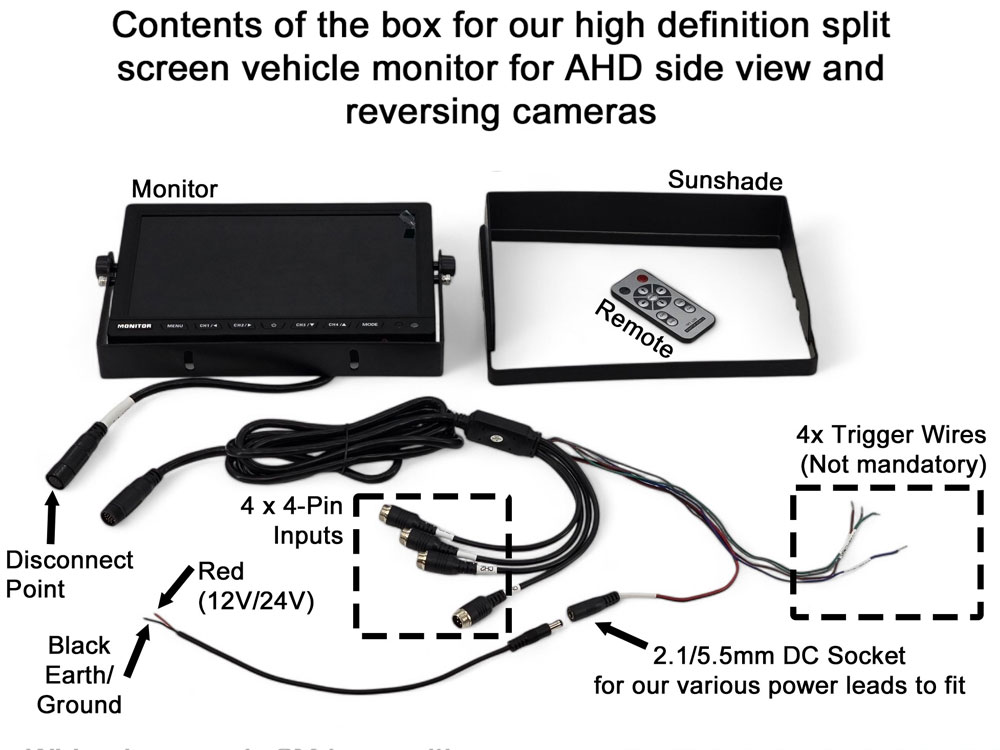

Our fitting and user manual guides you through the wiring and operation of the monitor.

Download instructions for the 10 inch AHD quad screen monitor for AHD reverse and side cameras
  • Power supply: 12 - 24v DC
  • TV system: PAL or NTSC
  • Resolution: 1024 x R.G.B x 600
  • Working temperature: 0 - 60 degrees C
  • Storage temperature: -10 to 70 degrees C
  • Dimensions: 250 x 165 x 31mm (not including bracket)
  • 4 trigger wires to link to indicators or reversing light with time delay
  • On screen menu
  • 10" colour IPS display
