7" Heavy Duty Dash Display + Black "diamond" Shape Reversing Camera Kit - PM89EB

Price

£194.00

VAT Included £32.33
Availability IN STOCK
Product Code: KIT-PM89EB
Cable Length
AHD Upgrade?
Add extra monitor bracket?
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 40)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

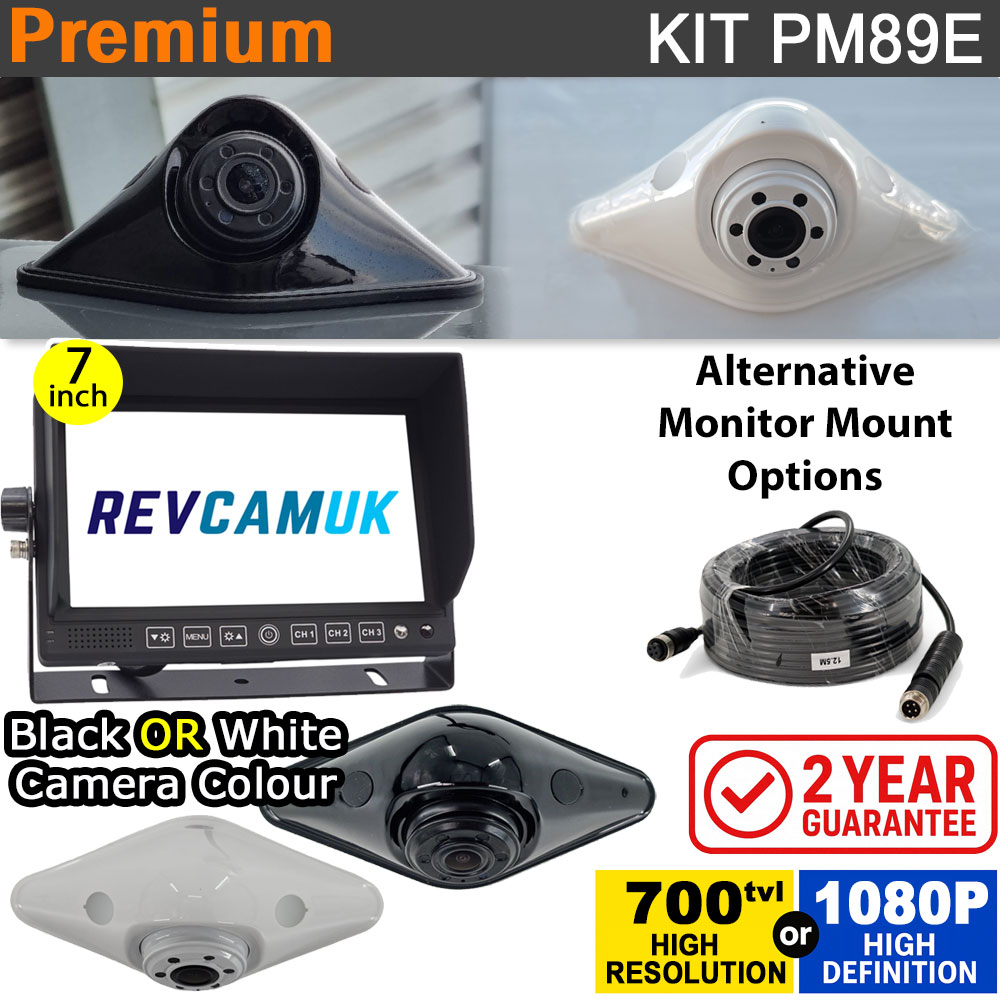

About the 7 inch dash monitor and black "diamond" shape reversing camera kit

  • This reversing camera kit comes with a stand on dash monitor display, fitted with a high quality 7" LCD panel. This monitor comes with a "U" bracket side mounting bracket, other mounts can be added using the drop down menu - these other brackets fit the central rear channel.
  • Monitor is fitted with a light sensor, and will auto dim when it gets dark eg at night/driving through a tunnel - to reduce glare.
  • Comes with a black diamond shaped reversing camera, fitted with one of two top specification image sensors - either the PC4089 700TVL or C2399 1080P AHD (see more about the upgrade option further down).
  • Fitted with a high quality 150 degree wide angle lens - the same all glass composite as we use in our brake light cameras, which avoids the gradual fading over time compared to the cheaper 2xglass, 2xplastic lenses commonly fitted elsewhere.
  • Designed to be mounted on the rear wall of a vehicle - ideally high up.
  • Can be adjusted to look downwards, or backwards.
  • New product for 2023, sure to be popular with Motorhome and Van owners
  • Easy to install, with a range of power options. Just one power connection powers the system.
  • 2 Year Guarantee and Lifetime Support from the leading UK specialists.

About the C2399 1080P AHD Upgrade Option

  • AHD stands for Analogue High Definition - allows long analogue coax cables to be used to transmit high definition digital signal
  • Increases monitor display resolution by 60% with an IPS panel upgrade
  • Upgraded camera uses an improved C2399 1080P AHD image sensor
  • You will experience improved dynamic range, more vivid colours, and superior low light level performance
  • Please note that AHD systems take a little longer to change channels/load up (approx. 2 seconds) vs standard CVBS systems.

Rest assured that whichever option you select, you will have a lovely, good quality image!

See our AHD (Analogue High Definition) FAQ page for more info


Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
  • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
Power Supply Options including lighter plug and piggyback fuse taps

Add an additional monitor bracket/mount

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

Bracket selection for dashboard mounted rear view monitors

See our video below for details about the brackets in the photo above.


Easy-Fit Wiring

  • We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
  • This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
  • It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
  • It keeps contacts clean and dry, plus prevents them from accidental separation.
  • It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
  • All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.


Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.

FAQ'S

Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".

Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

Rough guide:

  • 5M is good for an average size car
  • 7.5M is good for large cars and shorter wheelbase vans
  • 10M is good for a medium length van (around 6M)
  • 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
  • 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
  • 20M is good for super long vehicles

The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility. The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid. In terms of safety, both are on par with each other.

Detailed Images

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Standard Kit Tech Specs 700TVL

Monitor

7” Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W
Digital Screen Resolution: 800 x3(RGB)x480
3 Inputs
PAL/NTSC/AUTO
Full function Remote Control

Camera

Image Sensor : CMOS4089
Effective Pixels : 976(H) * 592(V)
TV Lines : 700TVL
TV System : PAL
Lens : 1.9mm
Min illumination 0Lux (LED ON)
IR LED's : 6pcs
Night Vision Distance : 30ft
Waterproof : IP68
Viewing angle : 150°(D)
Dimensions : 122*57*49.4 (mm)
Camera lens adjustable : 20° (up&down)
Power Voltage : 12V
(our monitors supply 12V despite input voltage being 24V)
Current Consumption : 150mA
Operating temperature : -20℃~+70℃

Upgrade Kit Tech Specs 1080P

Monitor

7” Diagonally Measured Colour IPS screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 1024 x3(RGB)x600
3 Hybrid Inputs
PAL/NTSC/AUTO
Full function Remote Control

Camera

Image Sensor : CMOS2399
Effective Pixels : 1920(H) * 1080(V)
TV System : PAL
Lens : 1.9mm
Min illumination 0Lux (LED ON)
IR LED's : 6pcs
Night Vision Distance : 30ft
Waterproof : IP68
Viewing angle : 150°(D)
Dimensions : 122*57*49.4 (mm)
Camera lens adjustable : 20° (up&down)
Power Voltage : 12V
(our monitors supply 12V despite input voltage being 24V)
Current Consumption : 150mA
Operating temperature : -20℃~+70℃
