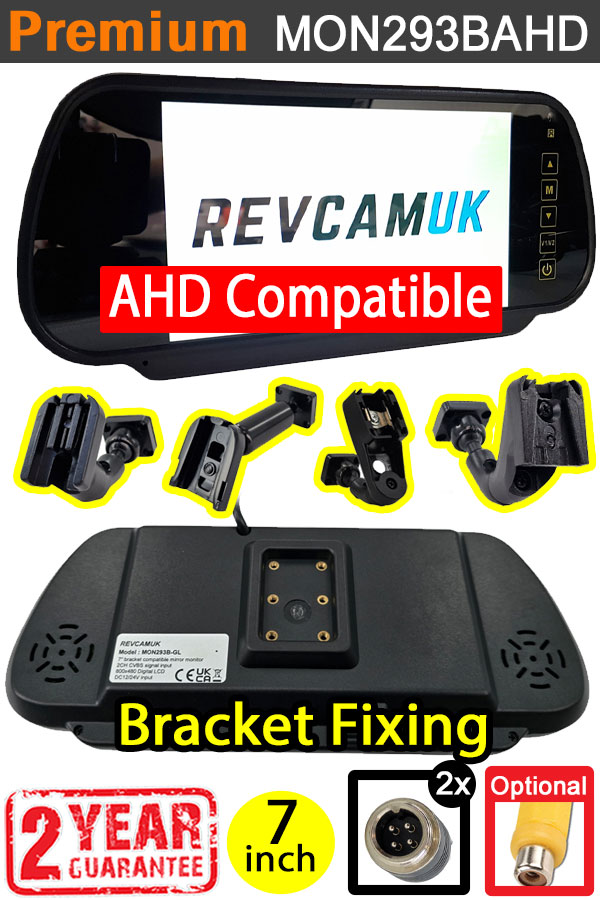

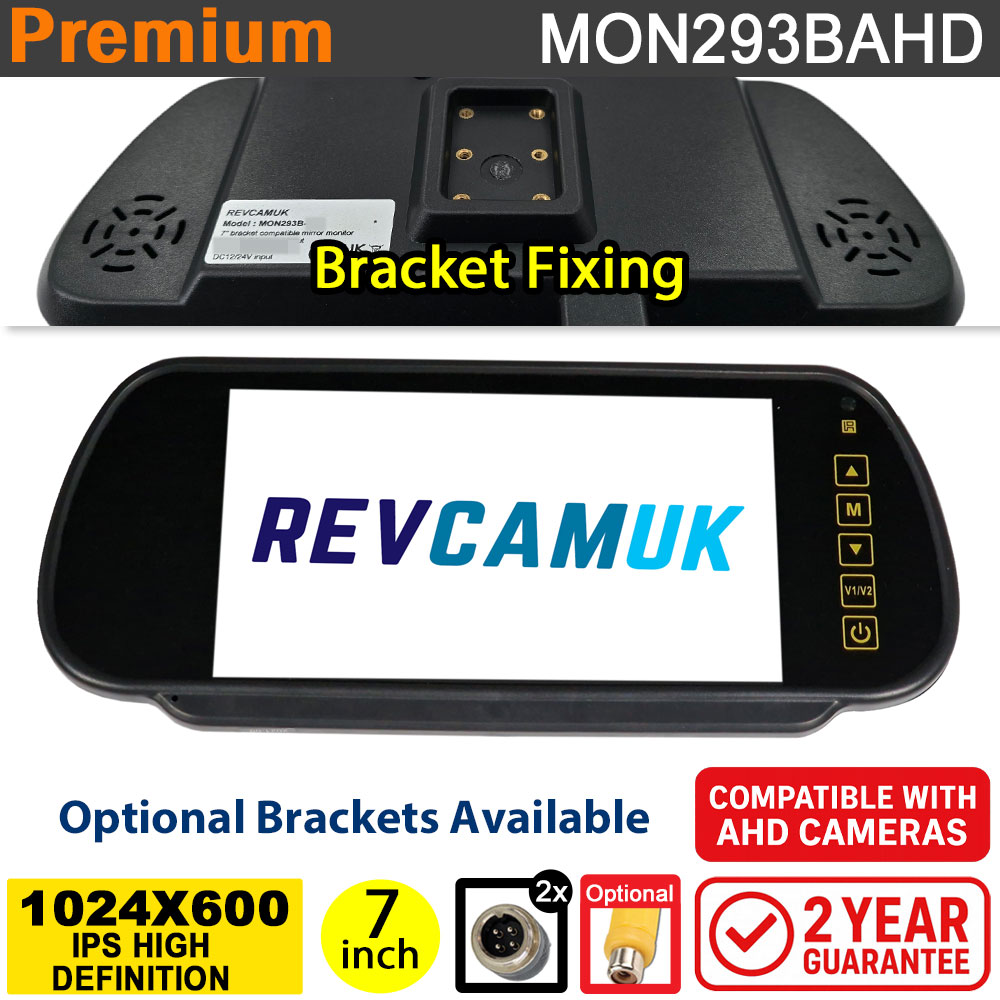

7 inch Mirror Monitor Display for AHD High Definition Reversing / Rear View Camera

  • This AHD monitor for reversing / rear view cameras has two hybrid channel inputs capable of displaying both standard definition cameras, as well as the latest 720P/960P/1080P output AHD reversing cameras.
  • The monitor will fit out range of windscreen stalk mount brackets.
  • Amazing colour replication, and definition, thanks to the 7 inch IPS panel with 1024x600 pixels.
  • The monitor will power up the camera through the ever popular 4 pin aviation cables available from us (and many others now).
  • The monitor has lots of protections built in, and can work on 12V and 24V vehicles, regulating a supply to the reversing camera of 12V.

Bracket Ordering Guide (see images for more info)

The rear of the monitor can be seen below :

Rear view mirror monitor for use with windscreen stalk mount brackets

This will fit in to the following swan neck stalk windscreen mounting brackets:

ACCMB1

We usually see this on Mercedes Sprinter vans with auto wipers and/or lights. If the van does not have this function then please see ACCMB5 further down.

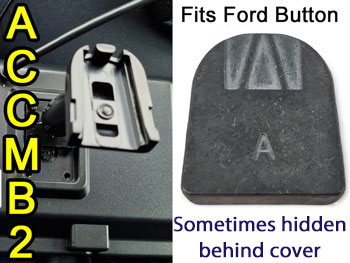

ACCMB2

We usually see this on Ford Transits, although we have seen it fitted to others.  This stub is sometimes known as "the universal button" because it is the easiest windscreen button to glue up.  Plus it is the perfect size to add mounting plates on - see below options.

Swan neck bracket to fit Ford button for rear view mirror monitor

ACCMB2 + MP35

This fits to a type of windscreen button typically found on later versions of Fiat Ducato, Peugeot Boxer, and Citroen Relay vans (those fitted without rain sensors). It usually has a black circular cover over it, as well as a spring clip, both of these need removing prior to install.  We used to stock a twist version of the swan neck bracket, but we much prefer this method due to the ease of fitting.

Mirror swan neck bracket for rear view mirror monitor to fit Fiat Ducato, Peugeot Boxer, and Citroen Relay

ACCMB2+button+glue

If you have any vehicle which is missing a windscreen button then you can order this bracket kit, it comes with Loctite 319 rear view mirror bonder, this was recommended to us by a fitter who installs lots of these.

Add a Ford windscreen button to the windscreen for a rear view mirror monitor with loctite 319 glue

ACCMB3

This is usually seen on some Volkswagens (not the Crafter), Transporters, and 2017+ Crafters tend to come with this style button.

Volkswagen rear view mirror swan neck mount for rear view mirror lcd screen

ACCMB5

This has been seen on a range of vehicles, the most popular use is the Mercedes Sprinter (up until today) and VW Crafters (up until 2017).

Mercedes and VW crafter windscreen mount for rear view mirror monitor

ACCMB6

A universal ceiling mount, for installing on any vehicle with the spare space to screw in to.

Ceiling bracket for mirror monitor

ACCMB7

Often seen on earlier models of the Fiat Ducato/Peugeot Boxer/Citroen Relay vans.

Ducato/Boxer/Relay earlier van windscreen swan neck bracket mount

ACCMB8

Often seen on Renault Master, Vauxhall Viaro/Movano, and Nissan NV400 vans.

Rear View Mirror Monitor Mount option for Renault Master Nissan NV400 Vauxhall Vivaro Movano


Please kindly note :- Although the monitor can be used with traditional standard definition (SD) reversing cameras, we find that the result is not as good as a dedicated standard definition monitor.  This monitor will perform at its best with AHD signal reversing cameras.

Detailed Images

Guide to operating and installing the rear view mirror monitor that can display high definition AHD signal reversing cameras / rear view cameras.

Rear View Mirror Monitor for AHD Reversing Cameras

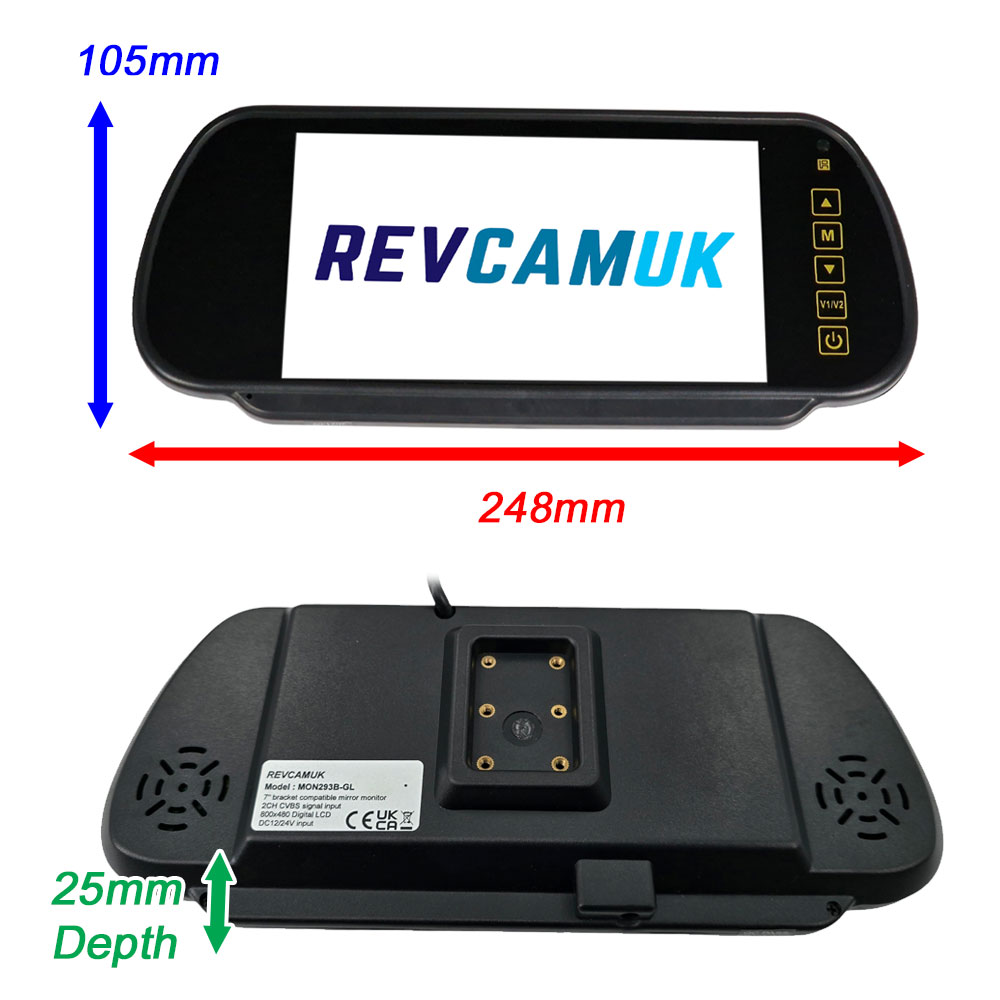

Screen Size : 7 inches diagonally measured
Aspect Ratio : 16:9
Resolution : 1024 (W) x RGB x 600 (H)
TV System : Auto
Brightness : 300cd / m2
Contrast : 400 : 1
Active Area : 154.08(w) x 85.92(h) mm
Viewing Angle : U/D : 40°/65°, R/L : 65°/65°
Video Format : AHD / CVBS
Mirror Flip : Non-mirror, mirror, flip, mirror flip
Video Channels : Two channel video input
Reverse Function : Single trigger (ruler setting function)
Power Supply : 12/24V DC, <6W
Operating Temperature : -20°C to +65°C
Storage Temperature : -25°C to +70°C
