PS/2 Adaptor Cable to Replace Faulty RV66 and RV77/CC-47 Reversing Cameras on Swift/Autotrail/Bessacarr Motorhomes | Adaptor-G

Category: Adaptors for reversing cameras

Description

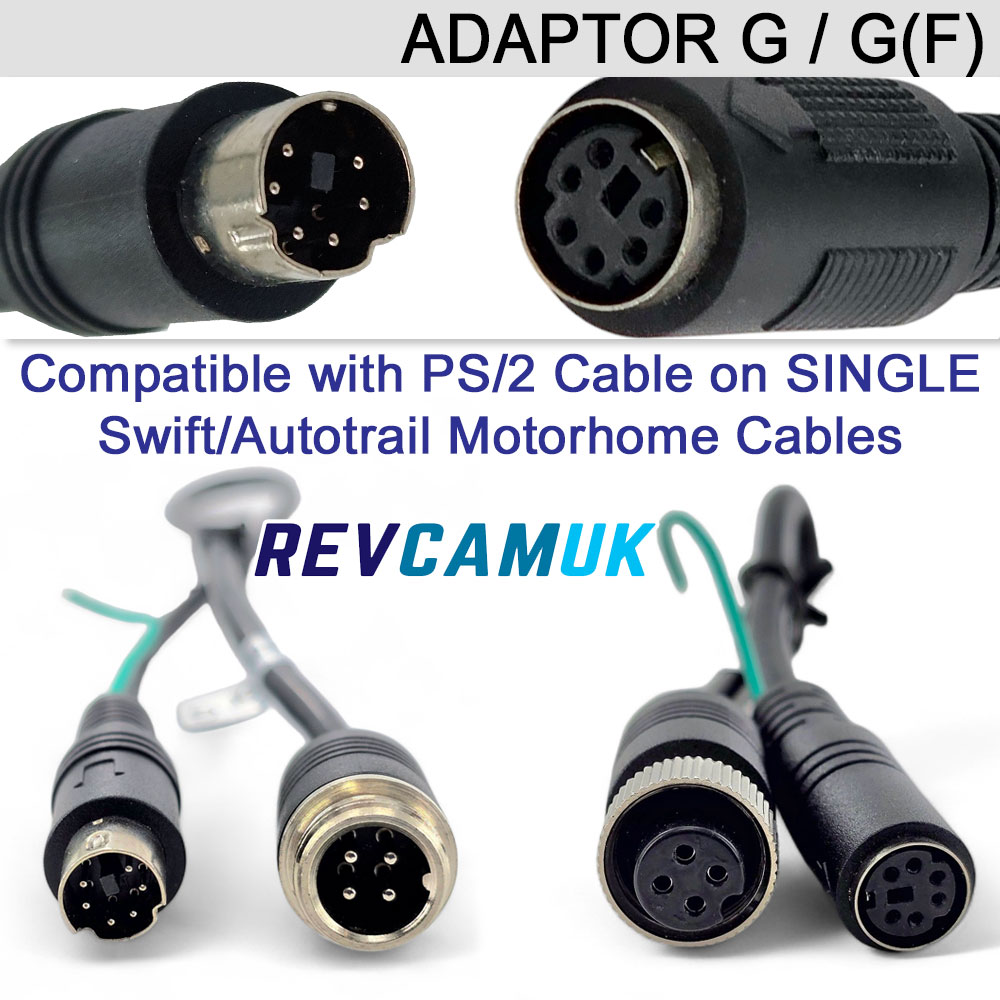

Swift Single Camera Replacement 6 Pin PS/2 to 4 Pin Adaptor Cable to replace RV77/CC-47 and RV66 Reversing Cameras

We have used this adaptor cable to support Swift and Autotrail Motorhome Owners when replacing their original failed factory-installed reversing camera. The adaptor is designed so that one of our 4 pin reversing cameras can be used in the replacement, simply adding this adaptor on to our camera so that it fits the original 6 pin socket on the main extension cable back to the original camera.

We do not recommend trying these on any other system as the pin-outs may be different, we will not be held responsible for experimenting by trial and error with these adaptors.

This works to replace the following original equipment supplier's (Sargent Electrical) reversing cameras :

RV77 Reversing Camera (Wysco) aka CC-47-L

RV77 CC-47 Reversing Camera from Sargent electrical on a Swift Autotrail Motorhome

RV66 Reversing Camera

I don't presently have an image of this type of pod camera on the back of a motorhome.

Black pod camera behind plastic moulding trim on a Swift Motorhome

FAQ'S

Ask a question about this product

Am I losing anything by using a 4 pin camera on a 6 pin connector?

Absolutely not. Most cameras only require between 3-4 pins to be in use. On the reversing camera, the adaptor does have a tail coming off (similar to what is on the original camera), this does allow the reverse light feed to run down one of the 6 pins to the EM 5 Series box at the front of the vehicle.

How many of these have you replaced with success

Many hundreds. We have had no issues in replacing the cameras with one of ours. The original supplier is presently referring customers to us for replacements.

Video

Our Guide to replacing parts on a Sargent Electrical Twin Reverse Camera Kit

Video detailing our compatible bundles that will fit to Swift/Autotrail/Bessacarr motorhomes fitted with the Sargent Electrical Twin Lens Driving / Reversing Camera System
