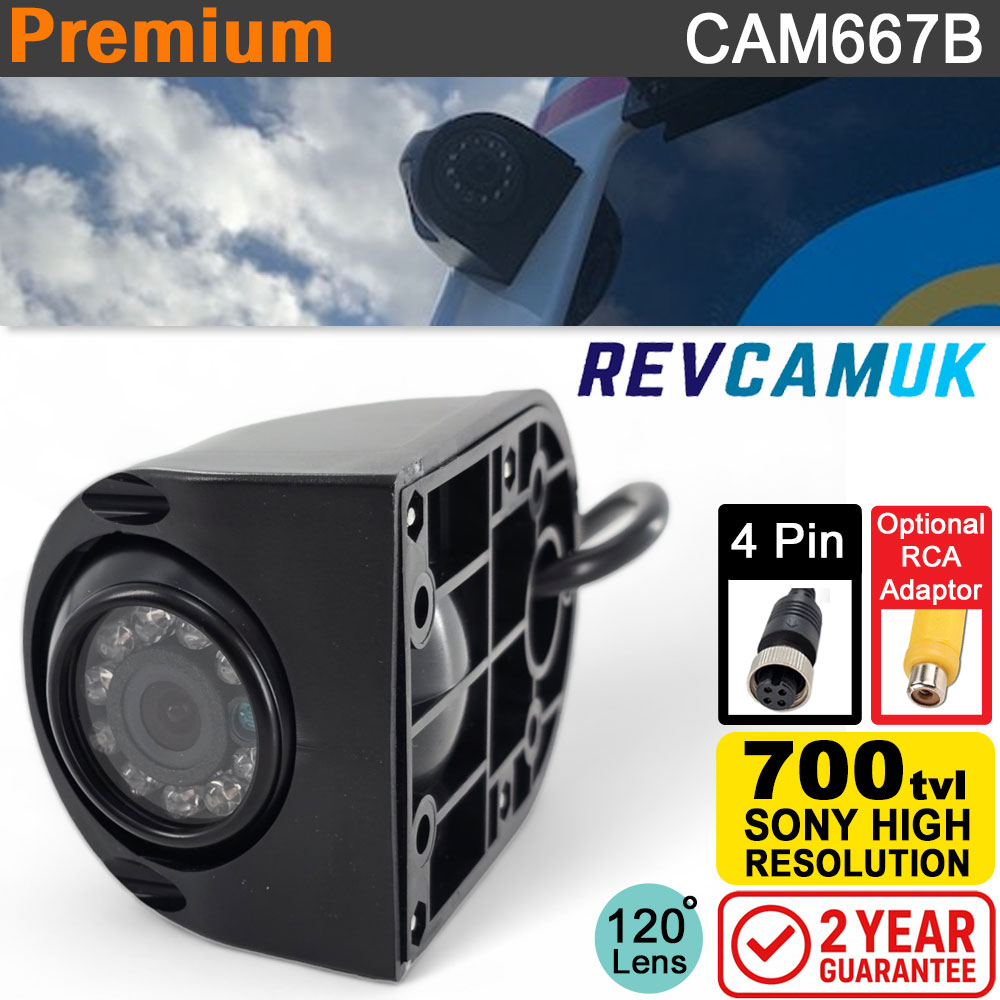

Side / Blind Spot / Cyclist Camera | Sony CCD | Black | 4 Pin connector | CAM667B

Price

£75.00

VAT Included £12.50
Availability IN STOCK
Product Code: CAM667B
Extension Cable?
4 Pin to RCA/Phono Adaptor?
Quantity
(from 1 to 31)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

Blind Spot Cyclist Side View Reverse Camera in black - popular for FORS/DVS compliance

  • Side mounted camera for looking backwards down the blind spot of your vehicle
  • Popular for Lorries, LGV, HGV, to keep an eye out for cyclists in the blind spot
  • Often ordered due to Fors Compliance
  • Fitted with a top spec 700TVL Sony CCD image sensor
  • Night Vision IR LED's for a good night time image
  • Adjustable up and down
  • Can be used on either left side, or right side.  Simply spin the ball camera 180 degrees to swap sides
  • Mirror image picture to simulated what you expect to see in your driving mirrors

Adjustable for Left Side/Right Side/Reverse View

This ball inside this camera can be adjusted to allow it to be fitted to either the left side, the right side, or the rear wall of the motorhome. Simply ensure that the green IR light sensor is at the bottom of the camera so that the image is the correct way up.

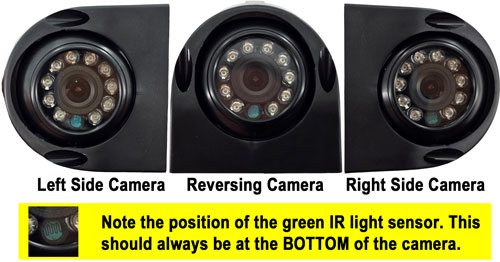

Image showing the camera set as Left side camera, Right side camera or Reversing Camera

Image Sensor for Camera

An image sensor is the part of the camera that detects and captures information to make an image, there are various sizes of sensor usually between 1/4" and 1/3" with the larger sensors able to capture more detail.  In the old days, you used to have to pick CCD for quality as CMOS wasn't as good, this has changed recently with some advancements in CMOS technology (there are varying quality levels of CMOS to confuse matters).  In this particular kit, we are using the Sony 1/3" CCD 700TVL image sensor inside the camera.  We consider this the joint best image sensor in terms of picture quality you can get on a reversing camera.

image sensor inside camera

Fitting instructions to cover the mounting/adjustment of the side view vehicle camera.

Side View Blindspot camera for vehicle instructions preview small image

See our general guide to installing 4 pin reversing cameras.  This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits
  • 1/3 700TVL SONY CCD
  • Video System:- PAL
  • Pixels:- PAL:752(H)*582(V)
  • Horizontal Resolution:-700 TVL
  • Min Illumination:- 0.001Lux (0 Lux IR on)
  • SNR:- ≥50dB
  • Electronic Shutter:- 1-1/10000(S)
  • Video Output:- 1.0V±0.5Vp-p 75Ω
  • View Angle:- 120°
  • Working Voltage:- DC9V-12V±0.5V
  • Consumption:- 70mA±10%
  • Waterproof Rate:- IP68
