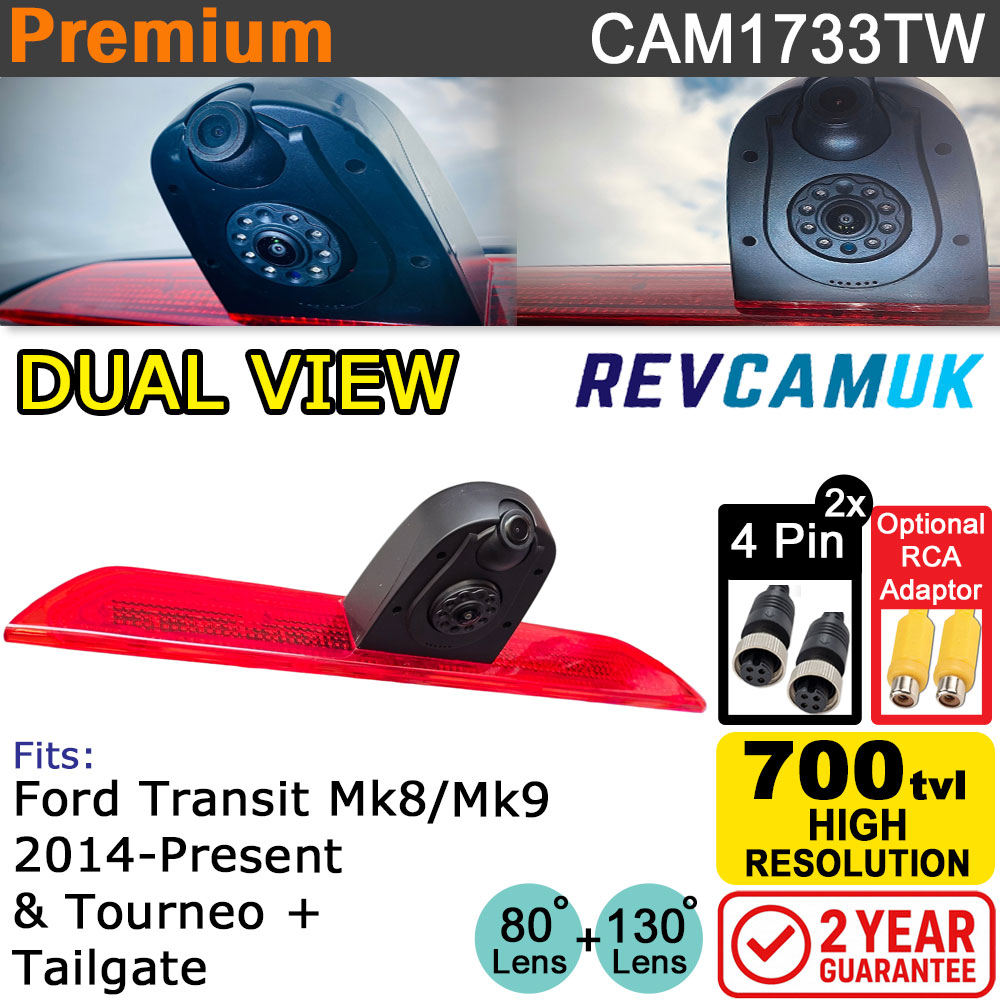

Ford Transit 2014+ Twin Reversing Camera + Rear View Camera to fit brake light | CAM1733TW

Category: Brake Light Reversing Cameras

Printable Version

Gallery Ask a question about this product

Description

Ford Transit brake light reversing +rear view camera

Tidy Factory Look - The brake light reversing camera is designed to be an exact fit to the location of the existing high-level brake light, retaining a tidy factory-fitted appearance on your van.
Two Views - Reverse + Rear View - This camera is useful for 100% of your journey. The camera is fitted with two cameras. One extra wide angle, and one with a slightly more narrow angle. The widest angle is used for parking, whilst the second is used for always-on rear view/driving.
Easy Installation - This camera uses the original mounting points making it easy to secure to vehicle.
IP68 Waterproof - This camera is rated to IP68, a high rating to cope with the strongest torrential downpours you may experience with the great British summer weather.
Superb Image Quality - This camera is fitted with an upgraded 4089 image sensor, which gives great colour replication and also returns a high resolution—700tvl. The camera also boasts an all-glass lens, which lasts a lot longer than the cheaper plastic-glass lens available from elsewhere (ours avoids the UV fade issues).
Ultra Wide Parking Camera Angle - Our brake light reversing camera boasts 160-degree (diagonally measure) ultra-wide viewing angle. The extra wide angle gives you the wide angle required to avoid obstacles around the rear of your vehicle.
Narrower field of View Driving/Rear View Camera - We have had a second camera installed with a more narrow field of view to be used as the rear view camera. This is the same quality lens and image sensor as on the main reversing camera.
Excellent Build Quality - We picked the best brake light camera manufacturer we have come across to build these cameras to our spec. They may cost us more to bring in, but the picture quality, customer satisfaction, and reliability is worth it.
2-Year Guarantee - The factory we use is happy to support the two-year guarantee we offer for the brake light cameras. Feel reassured that your purchase is protected by us - Reversing Cameras UK Ltd, aka REVCAMUK. If any non-user damage fault shows itself in the two-year post-sale period, we will swap the camera to ensure your vehicles reversing safety.

What vehicle does this fit?

Ford Transit 2014-Present

Ford Transit Tailgate Version 2014-Present

Image Sensor for Cameras

Both cameras in this dual lens brake light camera are fitted with the PC4089 700tvl image sensors. This is a modern, premium CMOS sensor. It can be trusted to provide a clear and colourful image.

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your 2006-2013 Ford Transit van, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2 year guarantee.

FAQ'S

Ask a question about this product

Will the brake light reversing /rear view camera be an exact replacement for my Ford Transit van?

Our reverse camera will fit the same location/entry point as the original brake light. The original lights plug will be inserted into the new brake light reverse camera to keep the high-level brake light working well.

Why can I find some sellers selling cheaper versions of the reversing camera that look the same?

There could be a number of reasons they may be cheaper than us, the most common are below :

Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
Cheaper Components Used - There are different standards of image sensor, support chips, lenses and camera bodies. We opt for better quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.

In short, trust us to find the best quality and support you for safety and peace of mind.

Detailed Images

Ford Transit Dual Lens Reversing and Rear View Camera displayed on Monitor (sold separately)

Twin Ford Transit reversing camera plus rear view camera to fit brake light

Dimensions of the Ford Transit dual lens brake light reversing and rear view camera

Wiring Layout of Ford Transit Dual Lens Rear View and Reversing Camera for Brake Light Fitting

Instructions

Fitting a 4 pin reverse camera - including using adaptors to RCA/Phono

Download

See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Technical Specs

Rear View Camera (Upper camera)

Sensor: 1/3 PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 2.6mm
Min illumination: 0.1 LUX
Waterproof: IP68
View angle: V 65 degrees, H 80 degrees D 105 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation

Reversing Camera (Lower camera)

Sensor: 1/3 PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
