White Twin Lens Reversing Camera / Rear view | Sony CCD | RCA Phono connectors | Stainless Steel bracket | CAM222WRCA

Price

£130.00

VAT Included £21.67
Availability IN STOCK
Product Code: CAM222WRCA
Quantity
(from 1 to 20)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

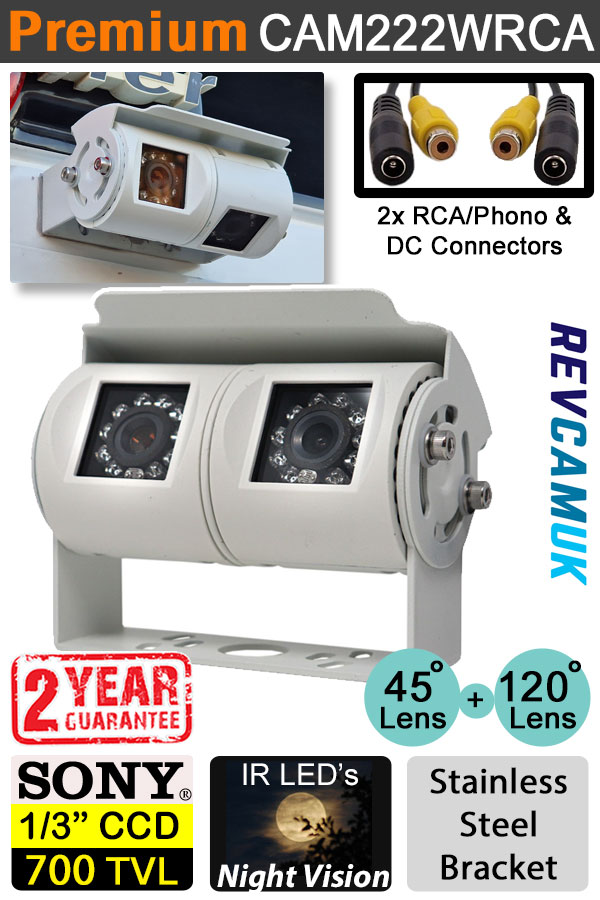

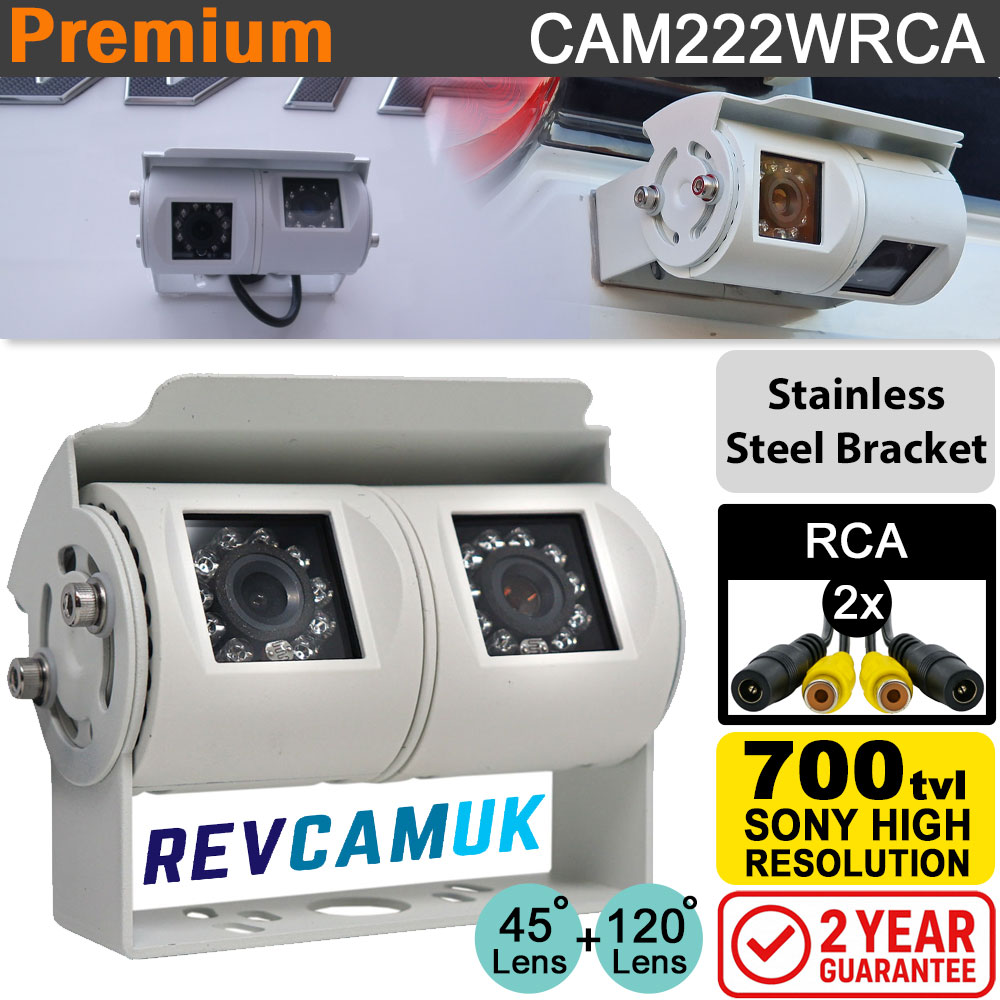

White Twin Lens Reversing / Rear View camera with stainless steel bracket and Sony 1/3" CCD 700TVL image sensors | RCA/Phono Version

  • The twin lens camera is very popular with motorhomes.
  • Two cameras are mounted in to one bracket. One with a wide angle (120°) for parking/reversing. One with a narrow angle (45°) for driving/rear view.
  • The bracket is painted stainless steel for corrosion resistance.
  • The image sensor fitted is one of the best available - the Sony 1/3" CCD 700TVL!

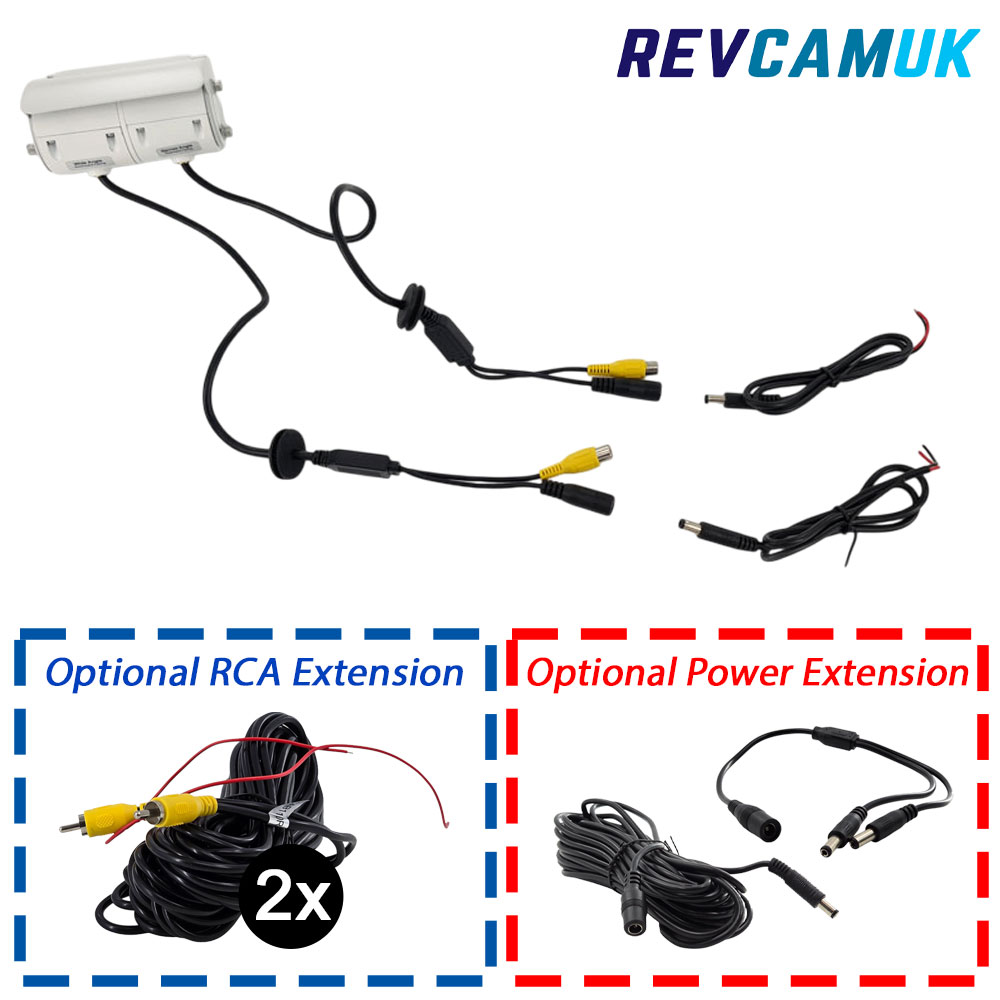

  • Each camera has a yellow RCA Phono socket, and a 2.1mm DC socket (which we supply a power lead that converts to a bare red (+12V) and black (earth) wire.

Image Sensor for Camera

An image sensor is the part of the camera that detects and captures information to make an image, there are various sizes of sensor usually between 1/4" and 1/3" with the larger sensors able to capture more detail.  In the old days, you used to have to pick CCD for quality as CMOS wasn't as good, this has changed recently with some advancements in CMOS technology (there are varying quality levels of CMOS to confuse matters).  In this particular kit, we are using the Sony 1/3" CCD 700TVL image sensor inside the camera.  We consider this the joint best image sensor in terms of picture quality you can get on a reversing camera.

image sensor inside camera

Anti-Corrosion Stainless Steel Camera Bracket

The camera has a stainless steel bracket, which is shown to last a very long time without corrosion unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months.

stainless steel bracket for reversing camera

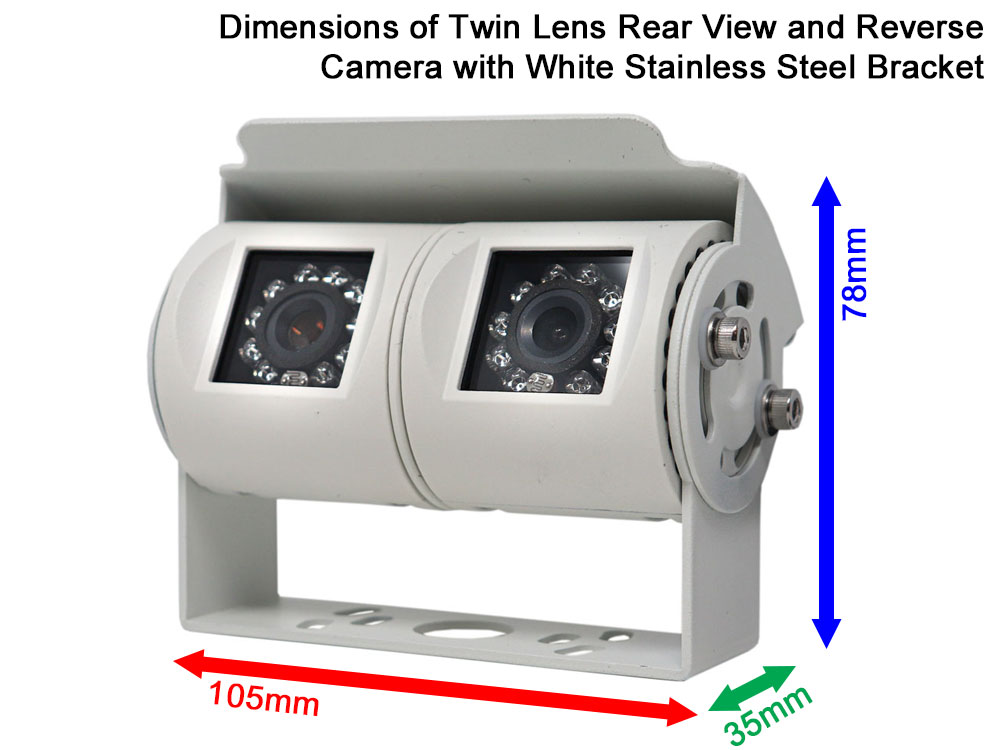

Detailed Images

Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR LEDs on)
Waterproof to Ip68
Infrared LEDs to provide night view
Two Cameras one with wide 120-degree lens and one with narrow 45-degree lens
Mirror image only
Stainless Steel Bracket (painted)
