DVS Direct Vision Standard Blind Spot Detection 10" Split Screen Monitor (Quad) for reversing cameras + side cameras - 4x 4 pin inputs | MON1010Q-AHD-BSD

Price

£258.00

VAT Included £43.00
Availability IN STOCK
Product Code: MON1010Q-AHD-BSD
Quantity
(from 1 to 38)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

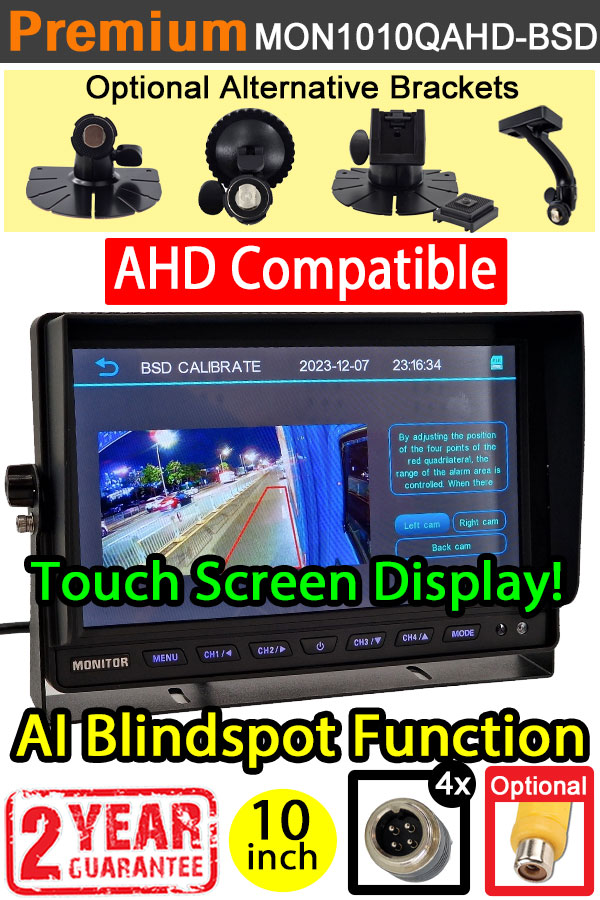

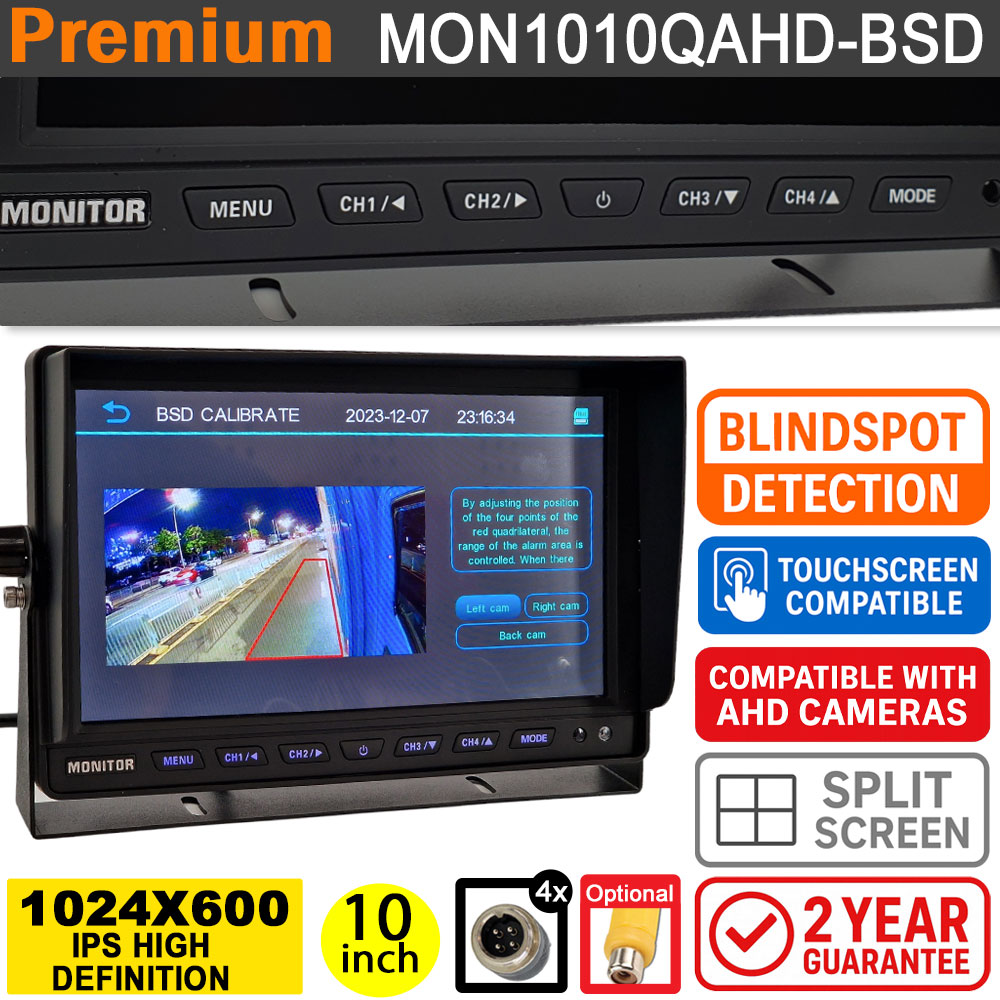

DVS Direct Vision Standard Blind Spot Detection 10" Split Screen Monitor (Quad) for reversing cameras + side cameras

  • Ideal for achieving compliance with DVS Direct Vision Standard.
  • Acts as an assistant to help monitor your blind spots, looking for pedestrians and cyclists.
  • Helps to increases safety by allowing multiple side/rear cameras to help cover blind spots.
  • Has the ability to add boxes of concern so that the monitor warns the driver when it believes there is something to be concerned about in that area.
  • Options to warn audibly, or simply to display boxes over a subject of concern.
  • Large 10 inch IPS 1024x600 panel display.
  • Has basic quality recording at 360P. If full HD recording is desired, then this would require an additional MDVR. 256GB max SD card (not provided)
  • Works best with 4 cameras (2 side, 1 rear, 1 forward). Please note that the video format of all channels must match e.g. if you have 1080P PAL side cameras, the remaining channels must also be 1080P PAL.
  • You can have 4 cameras fitted to this monitor
  • Trigger wires - to auto change channel when a trigger occurs eg selecting reverse gear, indicating left/right etc.
  • If you attach a trigger wire to the left indicator power supply, you can set it to stay on for a few seconds after power is last detected - avoiding the channel turning on/off with the indicator flashes.
  • Fitted with a 10" Hi-Resolution 1024x600 pixel Digital LCD display.
  • Comes with a heavy-duty U bracket, which connects to the side mounting points, other reversing camera monitor brackets available.
  • Comes with a deep removeable sunhood/sunshade.
  • Comes with a full function remote control.

Detailed Images
  • Power supply: 12 - 24v DC
  • TV system: PAL or NTSC
  • Resolution: 1024 x R.G.B x600
  • 4 trigger wires to link to indicators or reversing light with time delay
  • On screen menu
  • 10" colour high resolution panel with LED backlight
  • Individual control of mirror/normal on each channel
