Quad Reversing Camera Monitor - 4 Channel Inputs - Split Screen Image Modes | MON7005

7 Inch Quad Split Screen Monitor for reversing cameras - popular for agricultural use and large vehicles

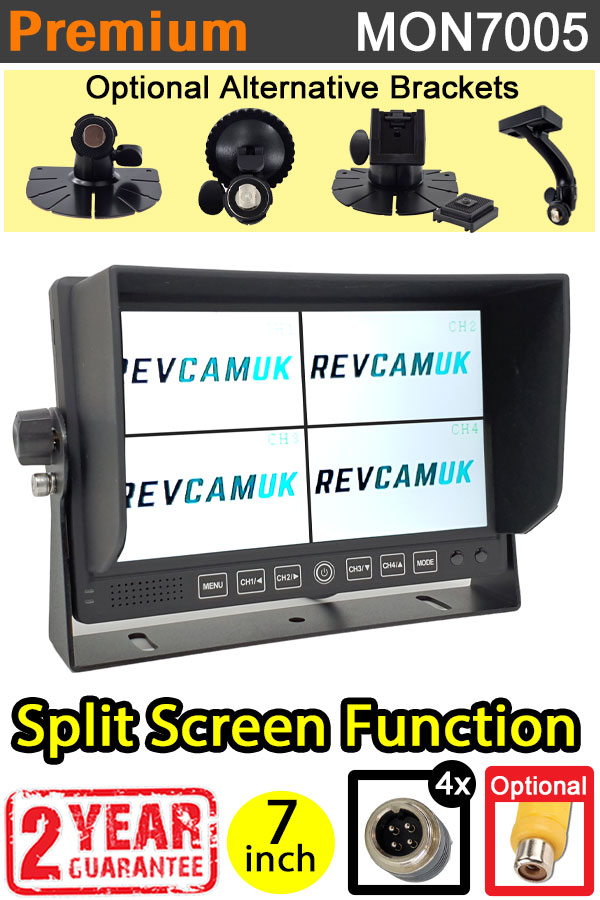

• The 7 inch Quad/ Split-Screen monitor allows you to view 1, 2, 3, or 4 cameras at once.
• It is worth mentioning that we don't recommend using quad/split screen monitors if your intention is to full screen one camera most of the time - because split screen monitors use multiplexers to digitally handle the picture, which reduces the picture quality slightly when in full screen mode, compared to using a traditional non split screen monitor.
• 4x trigger wire - to auto change channel when a trigger occurs eg selecting reverse gear, indicating left/right etc.
• If you attach a trigger wire to the left indicator power supply, you can set it to stay on for a few seconds after power is last detected - avoiding the channel turning on/off with the indicator flashes.

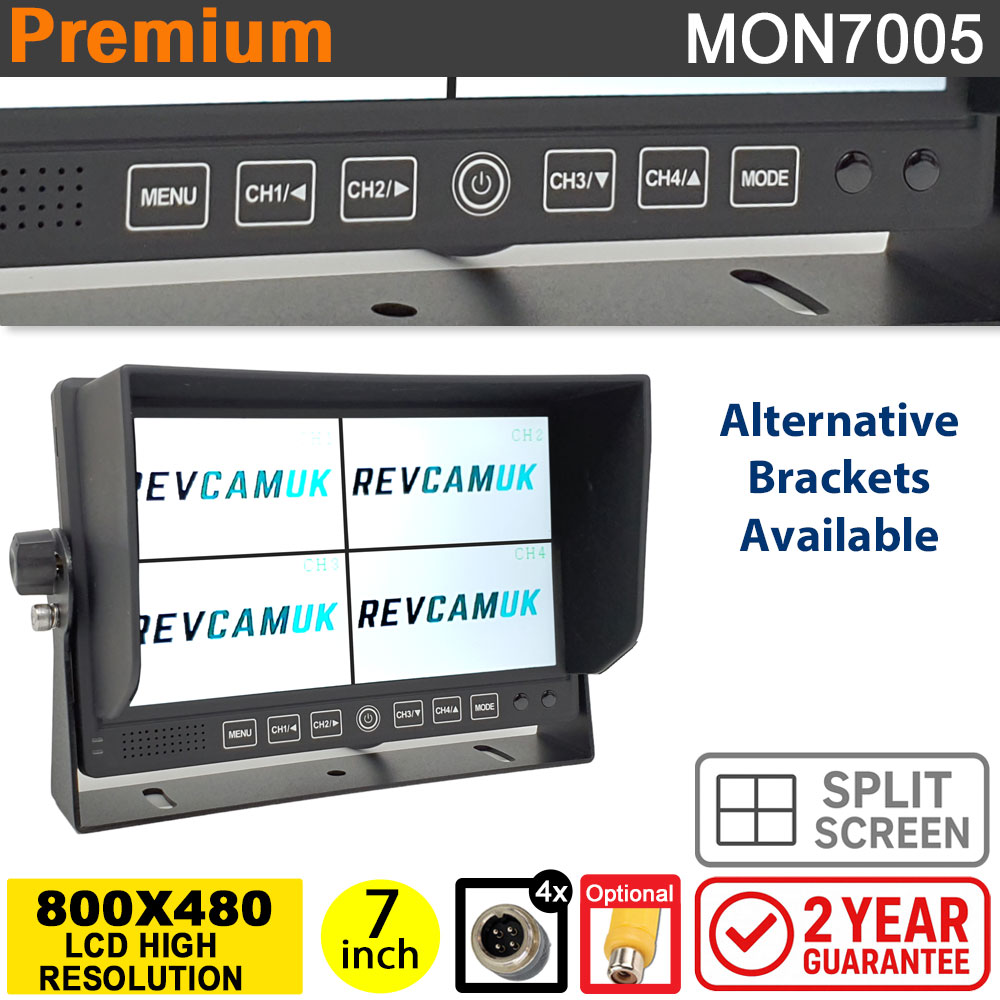

• Fitted with a 7" Hi-Resolution 800x480 pixel Digital LCD display (this is higher resolution than the cheaper 480x234 pixel analogue LCD)
• Comes with a heavy-duty U bracket, which connects to the side mounting points, other reversing camera monitor brackets available.
• Comes with a deep removeable sunhood/sunshade.
• Comes with a full function remote control.
• Can be left on all the time, the monitor provides power to the camera down the 4 pin connector.
• Comes with a 150cm power loom / wiring harness with 4x 4 pin "aviation" connectors (most commonly used in the industry).
• Accepts CVBS (D1) video signal inputs (this is the most common video signal type used on probably 99% of all systems fitted).
• The menu allows you to mirror/unmirror each channel individually, and also set trigger delays.

Monitor has Digital LCD Panel - Not Standard LCD

This monitor uses a top-spec Hi-Res digital panel LCD screen with an 800x480 pixel display. Two monitors with the same number of pixels can have a huge picture quality difference. Rest assure that we only stock LCD panels that have the brightest backlights, and the best colour replication. This costs us approx. 50% more than we could buy the monitors for. However, because of the picture quality, reliability, and many happy repeat customers, we are willing to pay the extra - you get what you pay for!

Split Screen Modes
