7" waterproof/heavy dustproof monitor display for reversing cameras (ideal for agricultural use) IP66 | MON705W

Category: Home
Printable Version
7
Monitor operating in a fish tank!
Dimensions of waterproof monitor
Gallery Video Ask a question about this product
Price

£168.00

VAT Included £28.00
Availability IN STOCK
Product Code: MON705W
Quantity
(from 1 to 6)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

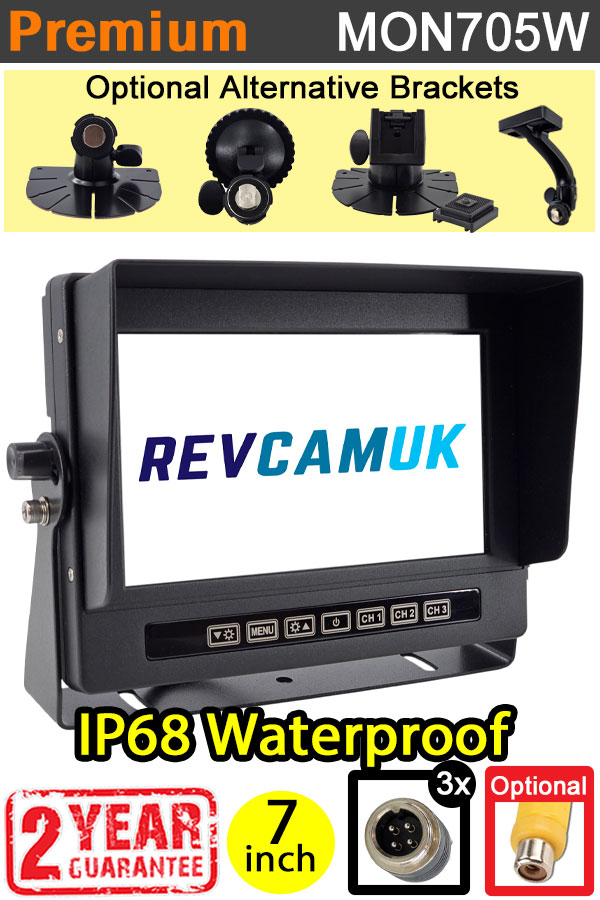

7 inch waterproof monitor display for reversing cameras

  • We supply these mainly to agricultural customers, who either have very dusty environments, or the monitors will be exposed to the elements and covered in rain.
  • This monitor is designed to be used with our 4 Pin Connector Cameras and 4 Pin Connector Cables.  Select up to 3 cameras and cables to make a complete system.
  • Our photo below shows the monitor working underwater, however I should point out that it is not intended to be used in an environment where it will be submerged for long periods eg 30 mins plus.  It is mainly designed to be operated on equipment that may have no protection from the elements, or has very high levels of dust in the air which could affect standard monitors which aren't sealed up like this monitor is.
  • Work on both 12V and 24V vehicles
  • Fitted with a digital Hi-Res 7 inch LCD panel 800x480 pixels
Detailed Images

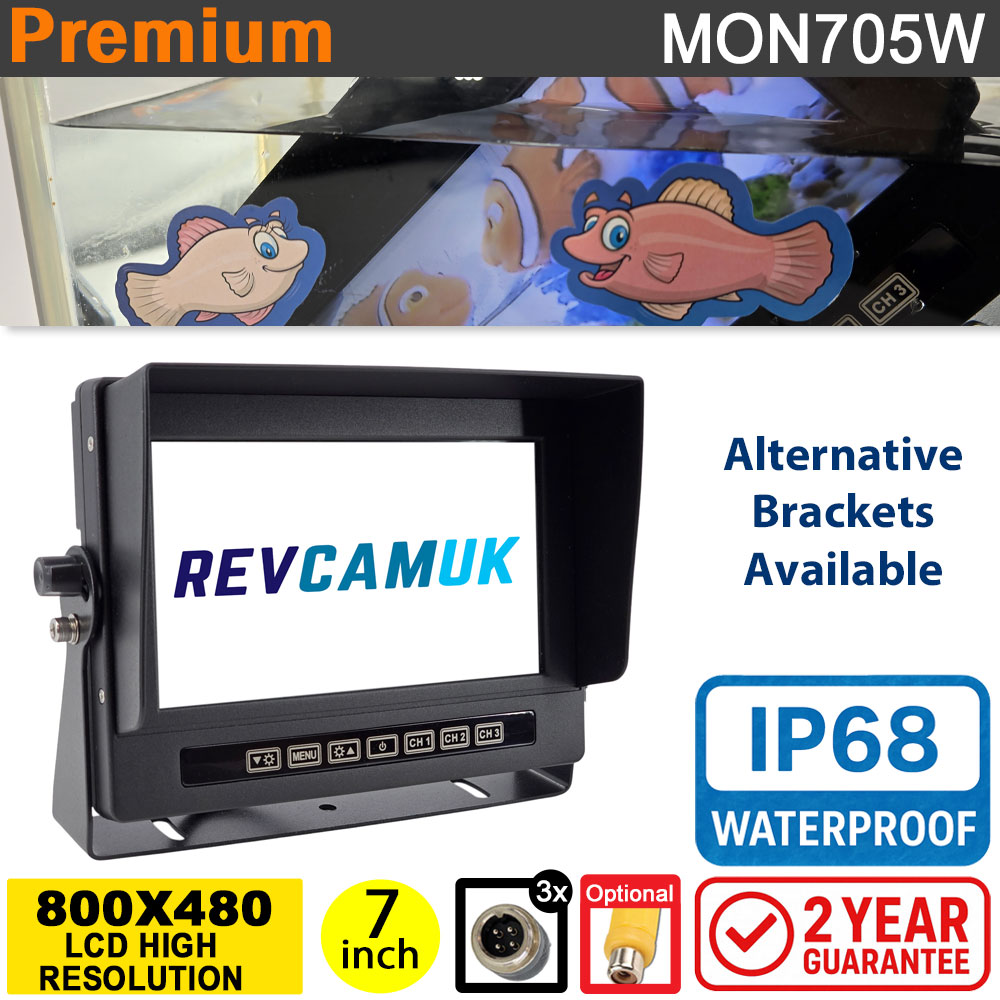

Monitor operating in a fish tank!

Monitor operating in a fish tank!

Dimensions of waterproof monitor

Dimensions of waterproof monitor

Video

Testing Monitor Underwater

Our IP66 Waterproof and Dustproof Reversing Camera Monitor/Display is ideal for machinery and vehicles operating in dusty areas, or areas which may occasionally be subject to water spray or open to the elements. Accepts up to 3 cameras.

Screen Ratio : 16:9
Back Light Luminance : LED, 250 cd/㎡
Resolution : 800 x RGB x 480
Compatible System : NTSC & PAL (automatically)
OSD Control : Colour, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portuguese, Italian, Dutch, Simplified Chinese)
View Angle : Horizontal L(70) R(70), Vertical UP(50) DOWN(70)
Image Reversion : UP/Down and Left/Right
Power Requirement : DC 12–24V
Power Consumption : 5W
Storage Temperature : -30°C to 80°C
Working Temperature : -20°C to 70°C
Size : 191 x 140.5 x 132 mm
Weight : 980g
Key Colour : Touch button, light grey 8400C silk-screen
Shockproof Level : 4G
Dustproof & Waterproof Level : IP68
AV Inputs : 3-way video input
Number of Trigger and Display : 3 triggers
Other Features : Touch button, With U type metal bracket, Aluminium alloy shell
