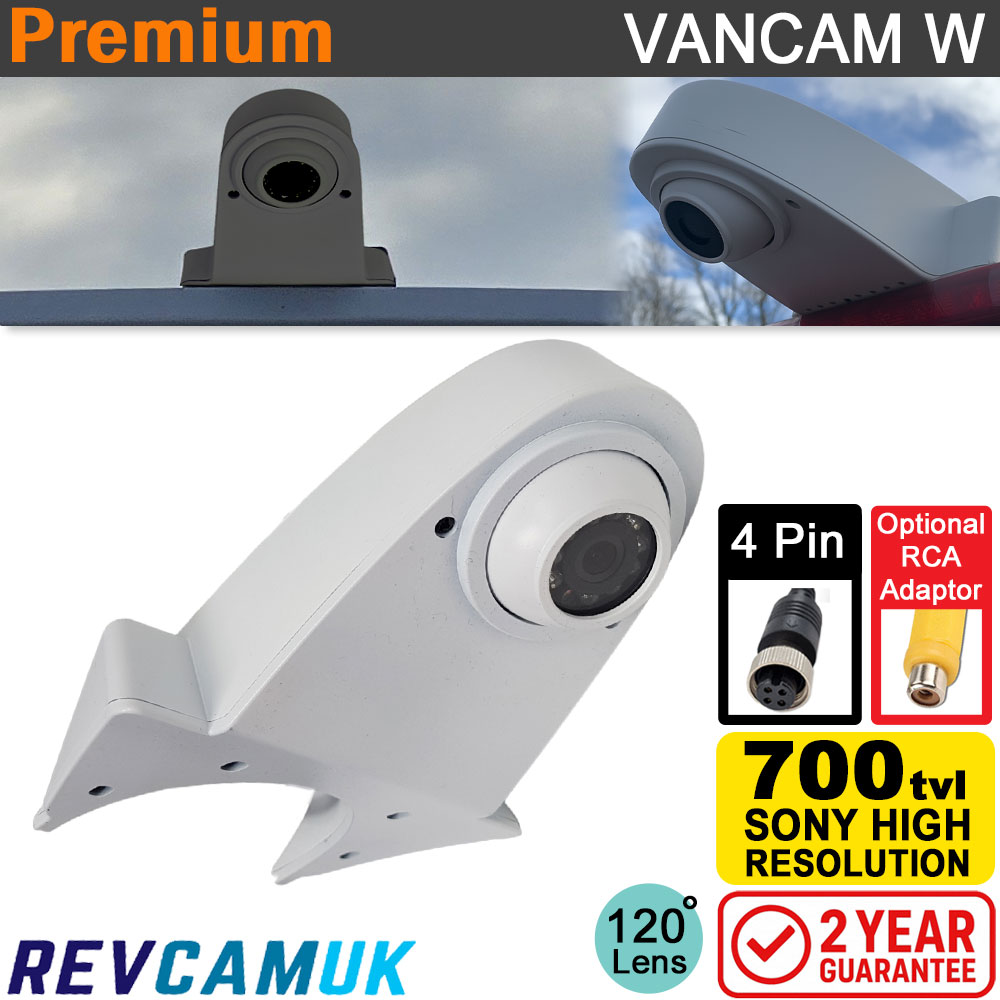

White Roof / Overhang Reversing Camera | Sony CCD | 4 pin connector | VANCAMW

White Roof / Overhang Reversing Camera for Motorhomes / Vans / HGV / Lorries

• Reversing camera to mount on roof of vehicles such as Motorhomes, Vans, HGV, and Lorries.
• High performance 1/3" Sony CCD 700TVL image sensor for good day time colour / resolution, plus high sensitivity in the dark.
• Night vision IR LED's fitted.

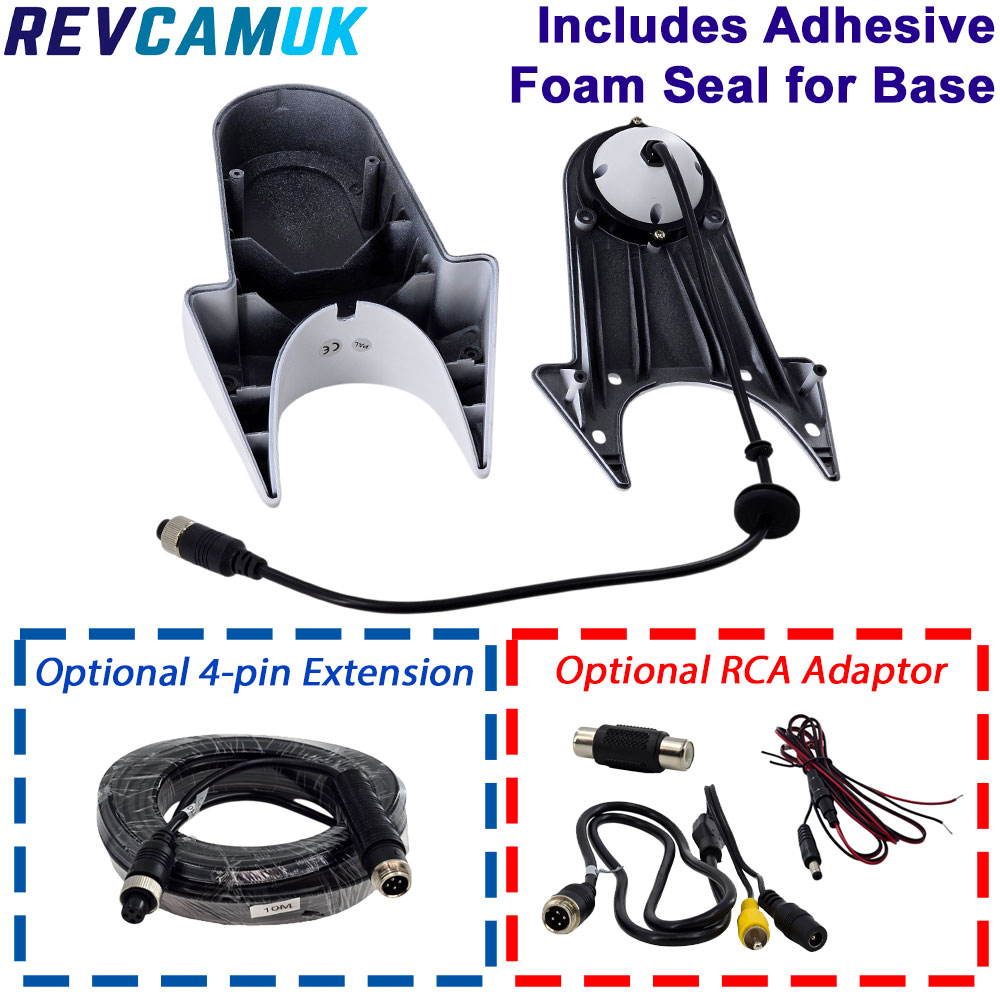

• This camera is fitted with a 4 pin screw connector, if you require RCA/Phono then please select the adaptor from the drop down menu.
• Approximately 120 degrees diagonally measured viewing angle

Image Sensor for Camera

An image sensor is the part of the camera that detects and captures information to make an image, there are various sizes of sensor usually between 1/4" and 1/3" with the larger sensors able to capture more detail.  In the old days, you used to have to pick CCD for quality as CMOS wasn't as good, this has changed recently with some advancements in CMOS technology (there are varying quality levels of CMOS to confuse matters).  In this particular kit, we are using the Sony 1/3" CCD 700TVL image sensor inside the camera.  We consider this the joint best image sensor in terms of picture quality you can get on a reversing camera.

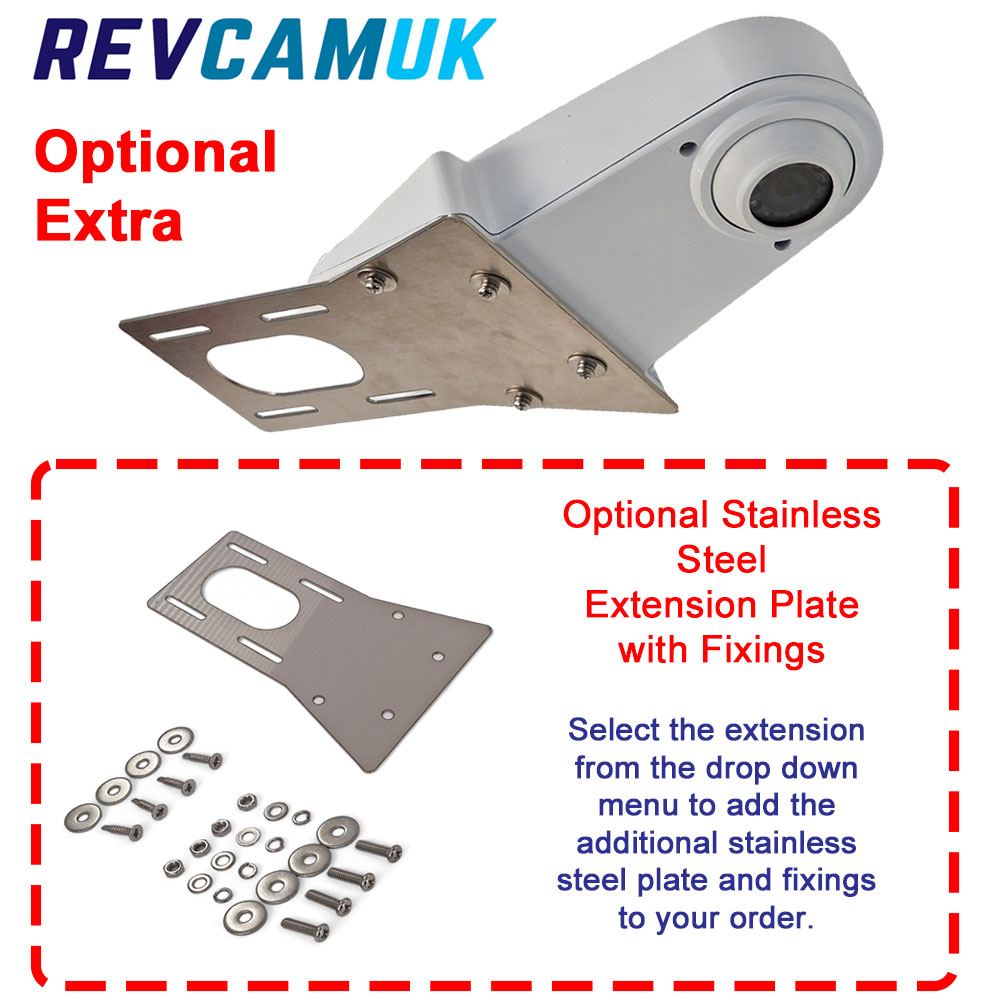

Optional Extension Plate

Click Here to view a stainless steel extension plate for this camera, this is only needed if you have a van with thick doors and need to extend the camera further out and higher to get the camera to view beyond these doors.
