2003-2019 VW Volkswagen Caddy Reversing Camera Brake Light kit with 7" Mirror Monitor - PM39BLP

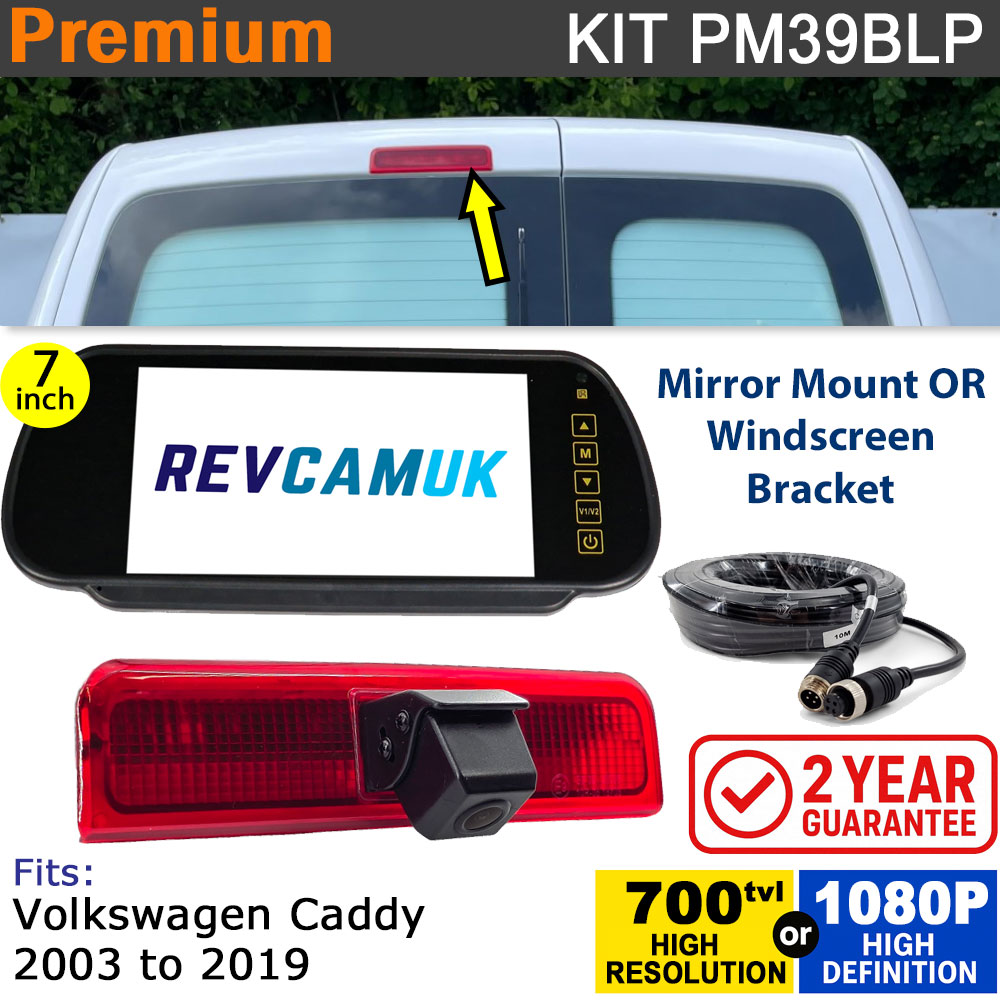

About the VW Caddy brake light reversing camera kit with 7" mirror monitor

• Exact fit for the VW Caddy 2003-2019 OEM Brake Light - Designed to replace the original factory brake light and give you that tidy factory fitted appearance.
• Choice of Mirror Mounting Options - We stock two versions of the mirror monitor, one with strong spring loaded clips in order to secure against the original interior mirror, one that has screw holes to the rear in order to attach to one of our windscreen stalk brackets.
• Easy Installation - This camera uses the original mounting points making it easy to secure to the vehicle.
• IP68 Waterproof - This camera is rated to IP68, a high rating to cope with the strongest torrential downpours you may experience with the great British summer weather.
• Superb Image Quality - This camera is fitted with an upgraded 4089 image sensor, which gives great colour replication and also returns a high resolution—700tvl. The camera also boasts an all-glass lens, which lasts a lot longer than the cheaper plastic-glass lens available from elsewhere (ours avoids the UV fade issues).
• Optional Guidelines - You can choose to display guidelines or none at all during fitting.
• Ultra Wide Angle - Our brake light reversing camera boasts a 150-degree (diagonally measured) ultra-wide viewing angle. The extra wide angle gives you the wide angle required to avoid obstacles around the rear of your vehicle.
• Excellent Build Quality - We picked the best brake light camera manufacturer we have come across to build these cameras to our spec. They may cost us more to bring in, but the picture quality, customer satisfaction, and reliability is worth it.
• No CANBUS issues - We use monitors and cabling that allow the monitor to provide power to the camera instead of relying on the rear light. This means that there is no risk of CANBUS cutting power to the rear camera due to unusual power consumption.
• 2-Year Guarantee - The factory we use is happy to support the two-year guarantee we offer for the brake light cameras. Feel reassured that your purchase is protected by us - Reversing Cameras UK Ltd, aka REVCAMUK. If any non-user damage fault shows itself in the two-year post-sale period, we will swap the camera to ensure your vehicle's reversing safety.

What vehicle does this reversing camera fit?

VW Volkswagen Caddy vans built between 2003-2019

Mirror Mounting Options

We stock a few different options for the mounting the mirror monitor. To choose, please use the drop down menu next to the "add to basket" options.

Clip over original mirror

This type of mirror monitor has spring loaded clips on the rear, instead of 4 screw holes for our swan neck brackets to fit. Ideal if you have a van with an interior mirror already fitted.

ACCMB2+button+glue

If you have a vehicle without a windscreen button, then you can order this bracket kit. It comes with Loctite 319 rear view mirror bonder, a Ford/Universal button, and the Ford/Universal bracket. This glue was recommended to us by a fitter, who installs lots of these.

ACCMB3 - Fit to OEM VW Button

If you have a vehicle with a windscreen button, check the image out below. You can order the ACCMB3 option using the drop down menu.

Choice of kit power options

• On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
• The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
• For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
• Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
• Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).

Easy-Fit Wiring

• We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
• This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
• It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
• It keeps contacts clean and dry, plus prevents them from accidental separation.
• It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
• All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

Image Sensor for Camera

This particular system uses the PC4089 1/3" Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication.  We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure.  With our camera you can be assured of good performance and long term reliability.

Monitor has Digital LCD Panel - Not Standard LCD

Our monitor uses a Hi-Res digital panel LCD screen with an 800x480 pixel display.  To complicate matters we have seen a difference in quality between 800x480 pixel panels. We only stock LCD panels that have the brightest backlights, and the best colour replication.  This costs us approx. 50% more than we could buy the monitors for, however, the reliability, picture quality, our reputation in keeping our many return customers happy, means we are willing to pay the extra (you get what you pay for!).

2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.

Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.
