Renault Master, Nissan NV400, Vauxhall Movano Brake Light Reversing Camera | CAM401

Gallery Ask a question about this product

Description

About the Renault Master, Nissan NV400, Vauxhall Movano brake light reversing camera

Our top-quality High-Resolution Brake Light Reversing Camera to fit 2010+ Renault Master and Nissan NV400 vans, as well as 2010-2022 Vauxhall Movano vans. Upgraded 4089 700tvl hi-res image sensor, durable, night vision IR LED's, wide-angle, OEM look brake light camera.

Factory Fit Appearance - Exact Fit Replacement Brake Light Camera for 2010+ Renault Master, 2010+ Nissan NV400, and 2010-2022 Vauxhall Movano Vans
Upgraded Image Sensor - The image sensor is one of the most important aspects in achieving good picture quality on a reversing camera. We don't accept the base spec when it comes to our cameras. We opt for improved components that we know work well. This reverse camera is fitted with the 4089 premium 700tvl image sensor. We have used it for many years; it provides great colours, a high resolution, as well as being reliable.
All Glass Composite Lens - Often overlooked is the quality of the lens fitted to the camera. This camera is fitted with an all-glass composite lens, giving an excellent image for many years. We steer clear of the cheaper standard plastic+glass lenses, which fade over time due to UV damaging the plastic layers. There is no problem with this camera and the all-glass construction lens.
Two-Year Guarantee - The brake light factory that we trust to produce these cameras is the best we have found. The quality is fantastic, and they back this up by fully supporting our 2-year guarantee. In the unlikely event a fault should arise during this time, we will provide a replacement unit to ensure you are always benefiting from the safety of this fantastic camera.
Easy to Fit - Brake Light cameras use the original fixings and openings for the OEM brake light. This makes them very easy to fix to the vehicle, as it avoids the requirement for adding new fixing and sealant.
Night Vision IR LED's - When night time comes you will still benefit from this camera due to the ring of fitted IR LED's. The combination of the IR LED's and the sensitive modern 4089 image sensor means that you will still see any obstacles even at night. Don't worry about these shining at anyone following you; the light is visible to the camera but invisible to the human eye.
Guidelines ON/OFF - As standard the brake light camera will come with static guidelines being added. There will be a trigger loop that allows you to remove these should you not wish to use them.

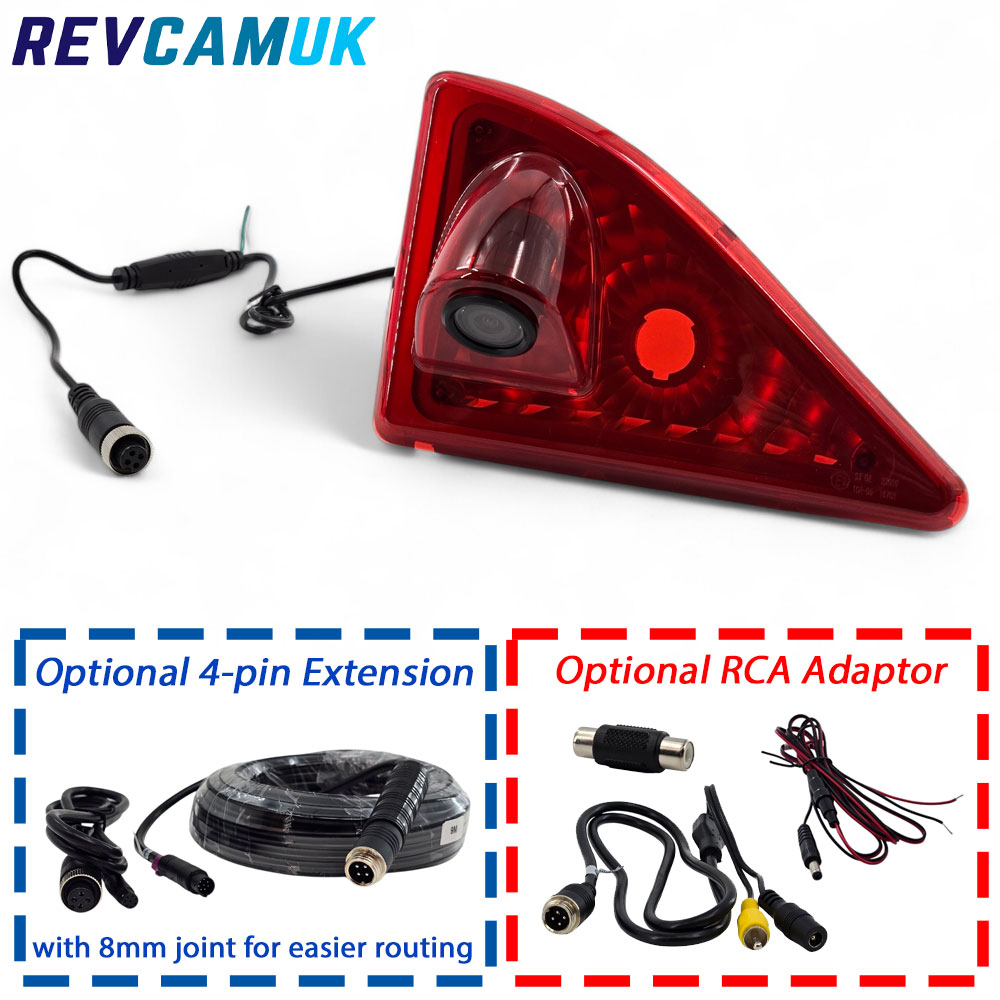

4 Pin Connector / RCA Adaptor Option - The camera has a 4 pin connector on as standard, you can also choose to select an optional discounted RCA Adaptor set should you wish to connect this to an RCA Monitor/Stereo.

What vehicle does this brake light reversing camera fit?

Renault Master 2010-Present

Nissan NV400 2010-Present

Vauxhall Movano 2010-2022

FAQ'S

Ask a question about this product

Will the brake light reversing camera be an exact replacement for my Renault Master, Vauxhall Movano, or Nissan NV400 van?

Our reverse camera for the brake light will fit the same entry point and fixings as the original camera making fixing the camera up a breeze.

Why can I find some sellers selling cheaper versions of the reversing camera that look the same?

There could be a number of reasons they may be cheaper than us, the most common are below :

Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
Cheaper Components Used - There are different standards of image sensor, support chips, lenses and camera bodies. We opt for better quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.

In short, trust us to find the best quality and support you for safety and peace of mind.

Detailed Images

Reversing camera for Renault Master, Vauxhall Movano, and Nissan NV400 vans built 2010 to present

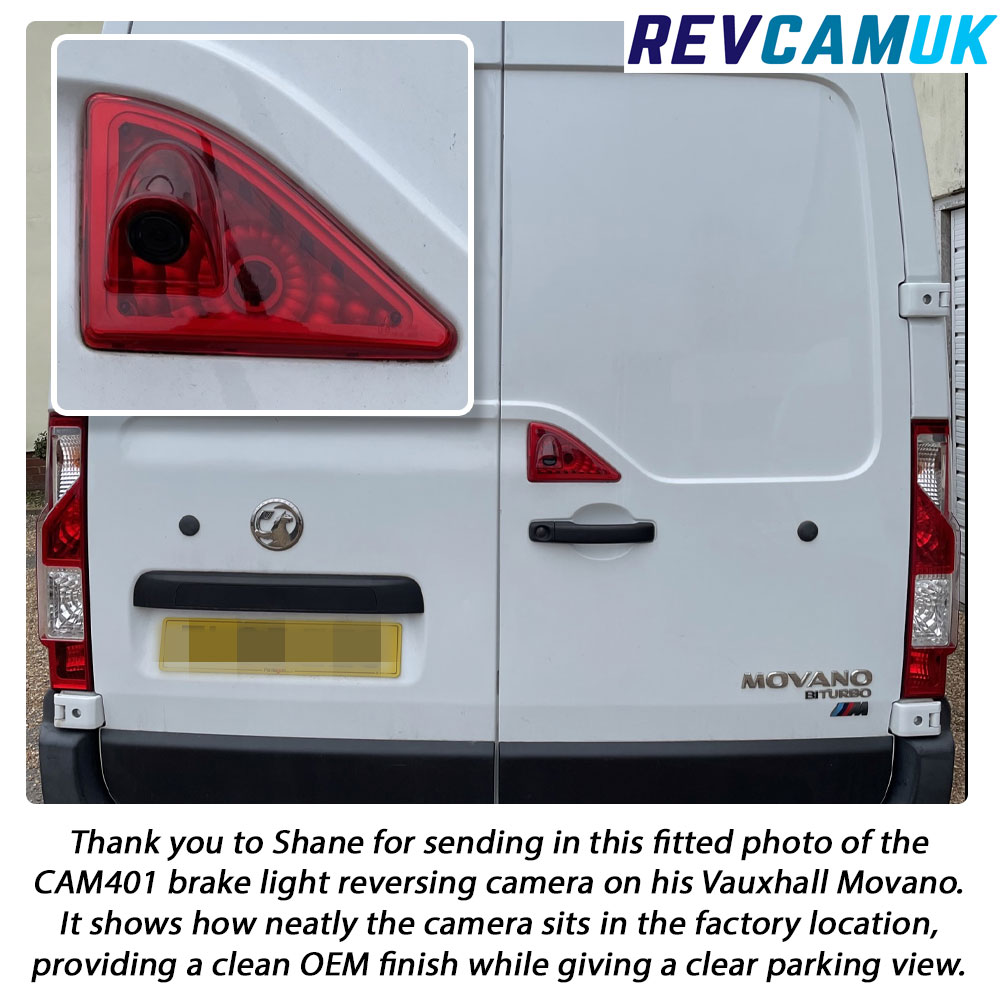

Thanks Shane for your picture of the brake light camera fitted to your van

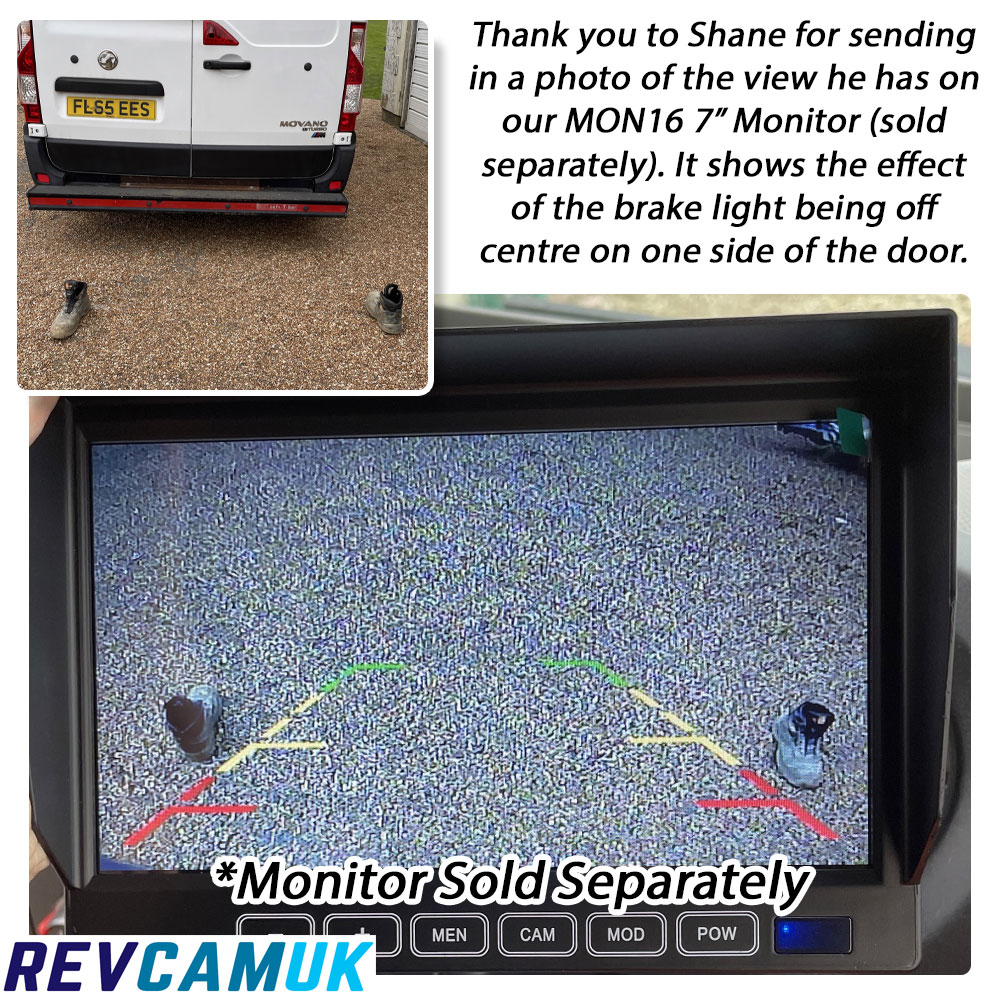

Thanks Shane for your picture showing the field of view from the brake light camera. Being low down and off centre has a bit of impact for the passenger side visibility

Instructions

Fitting a 4 pin reverse camera - including using adaptors to RCA/Phono

Download

See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Technical Specs

Image Sensor : 1/3" colour Super CMOS
Effective Pixels : 976(H) x 592(V)
Resolution : 700TVL
IR LED : 8pcs
Minimum illuminations : 0.1 Lux (with IR)
Lens Angle : 160 degrees
Waterproof : IP68
AGC : Auto
Signal to noise ratio : Better than 48dB
White balance : Auto
Electronic Shutter : Auto
Backlight compensation : Auto
Power Supply : DC12V
Operating Temperature : -20C to 70C RH95% MAX
Storage Temperature : -40C to 80C RH95% MAX
