White Slimline Reverse Camera Kit with 7" Mirror Monitor - PM35W

Price

£185.00

VAT Included £30.83
Availability IN STOCK
Product Code: KIT-PM35W
High Definition Upgrade?
Mirror Mount (Info Below)
Cable Length Options
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 10)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

White Slimline Reverse Camera Kit with 7" Mirror Monitor

  • Reversing camera kit with a white slimline camera and a 7 inch mirror monitor (choice of clip-over type or bracket to windscreen mounting plate type).
  • Very high quality mirror monitor, the best quality we have found over the many years we have been sourcing quality products.
  • Two choices of spec level, both premium. Choose from 700tvl high resolution 4089 image sensor and 800x480 pixel digital panel LCD monitor panel, or upgrade to the latest 1080P high definition 2399 image sensor and 1024x600 pixel IPS monitor panel.
  • Fitted with a high-quality all-glass lens with a very wide angle (150 degrees) - ideal for parking.
  • The waterproof rating of this camera is IP68, more than enough to cope with the great British weather.
  • Easy to install, with a range of power options. Just one power connection powers the system.
  • 2 Year Guarantee and Lifetime Support from the leading UK specialists.

    See below for information about the option choices above in the drop-down menus


    Cable Length Options

    We stock a large range of cable lengths to suit any vehicle, whether you have a car, van, motorhome, tractor, coach, bus, or HGV. We also stock adaptors for the Dometic/Waeco 6 pin screw locking cable commonly found pre-fitted on Burstner and Baileys motorhomes. We can also provide a slimline 8mm disconnect point to our 10M/12.5M/15M cable lengths to help you run the cable through tight gaps without having to drill a large hole for the main connector.

    4 pin extension cable length options for reversing camera kit

    Power Options

    • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
    • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
    • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
    • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
    • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
    Power Supply Options including lighter plug and piggyback fuse taps


    Upgrade Option - C4089 700tvl Hi-Res vs C2399 AHD 1080P High-Def

    • Recent option, introduced in early 2022
    • AHD stands for Analogue High Definition - allows long analogue coax cables to be used to transmit high definition digital signal
    • Increases monitor display resolution by 60% with an IPS panel upgrade
    • Camera is fitted with the amazing C2399 1080P AHD chipset
    • You will experience improved dynamic range, more vivid colours, and superior low light level performance
    • Please note that AHD systems take a little longer to change channels/load up (approx. 2 seconds) vs standard CVBS systems.

    Rest assured that whichever option you select, you will have a lovely, good quality image!

    See our AHD (Analogue High Definition) FAQ page for more info


    Mirror Mounting Options

    For many years, we have supplied the universal clip-over existing interior mirror rear view monitor. More recently we also began to offer the monitor with a variety of attach direct to windscreen stalk brackets. We have windscreen brackets to fit the most popular van and motorhome models, as well as one where you can glue a mounting plate to the windscreen for a universal bracket to fit. See our guide below for more information about the different bracket options.

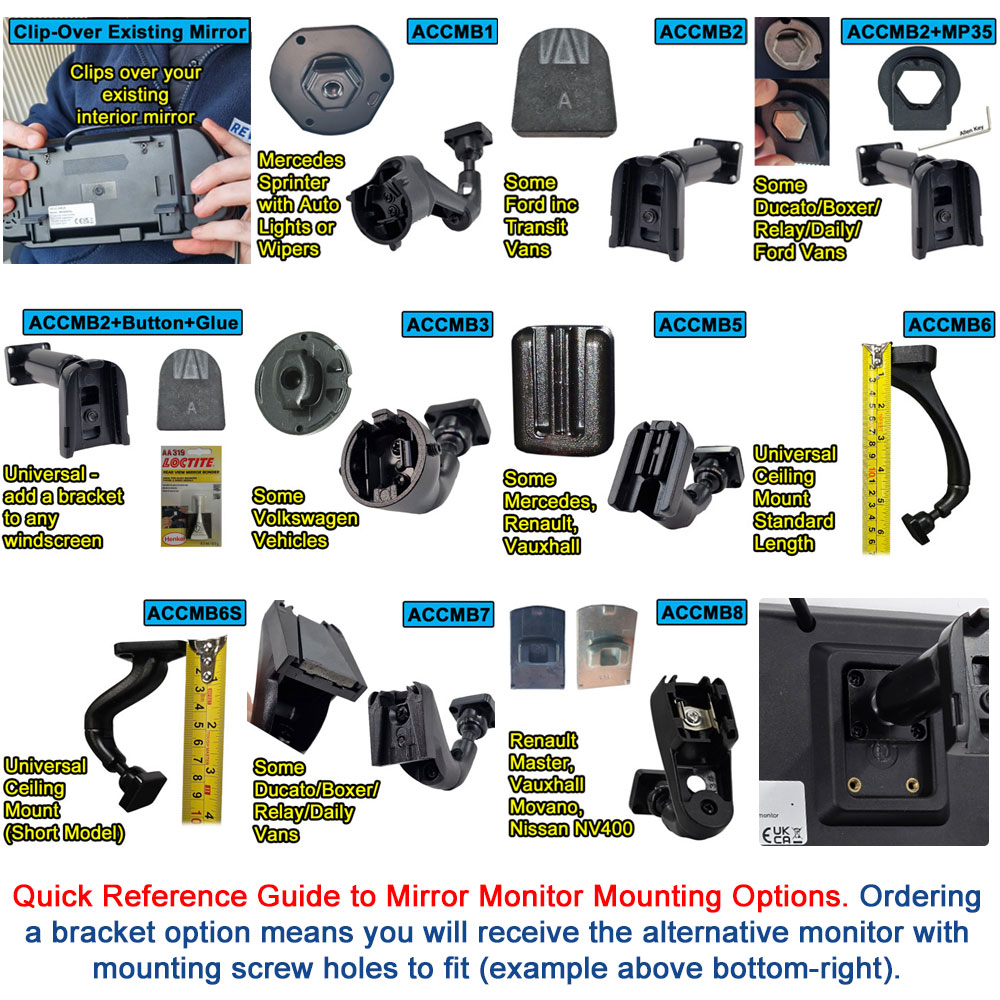

    Rear View Mirror Monitor Bracket Choice Image

    Some popular van models are listed below with the bracket options we commonly see. This is a rough guide, and we have seen lots of variation. If in doubt, Email Us a clear photo of what you have fitted to your windscreen.

    ACCMB1

    • Mercedes Sprinter *WITH AUTO LIGHTS/WIPERS ONLY (See ACCMB5 for the more common type fitted)

    ACCMB2

    • Ford Transit
    • Ford Tourneo
    • Ford Connect
      and many other Ford's

    ACCMB2+MP35

    • Citroen Relay (More Recent Models)
    • Fiat Ducato (More Recent Models)
    • Ford Transit (Some Models)
    • Peugeot Boxer (More Recent Models)
    • Vauxhall Movano (Latest Models)
    • Vauxhall Vivaro (Latest Models)

    ACCMB2+Button+Glue (For Windscreens with NO mounting plate for mirror)

    For vehicles that have no mounting plate fitted to the vehicle, this option will provide you with a universal mounting plate, a bracket to fit this plate, as well as the Loctite 319 glue that is designed to fix this to your windscreen. We have researched and produced detailed fitting instructions for fixing the windscreen rear view mirror mounting plate up with Loctite 319 - read these carefully as they help avoid any issues.

    ACCMB3

    Various Volkswagen Vehicles such as :

    • VW Caddy
    • VW Crafter (Later Model - Earlier models see ACCMB5)
    • VW Transporter
      and many more....

    ACCMB5

    • Mercedes Sprinter
    • Mercedes Vito
    • Nissan NV400/NV300
    • Renault Kangoo
    • Renault Master
    • Renault Trafic
    • Vauxhall Movano
    • VW Crafter (Pre-2017)
      and many more....

    ACCMB6

    • Universal ceiling bracket to fit any vehicle by screwing the monitor to a surface above where the monitor is to be installed.

    ACCMB7

    • Citroen Relay (Earlier models)
    • Fiat Ducato (Earlier models)
    • Iveco Daily
    • Peugeot Boxer (Earlier models)

    Easy-Fit Wiring

    • We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
    • This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
    • It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
    • It keeps contacts clean and dry, plus prevents them from accidental separation.
    • It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
    • All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.
    Easy to fit easy wire 4 pin aviation connector cables

    2 Year Guarantee

    We supply with a 2-year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.

    2 Year Guarantee - product guarantee should you experience any issue within 24 months

    Parts Tested in the UK

    The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR LEDs and menu functions to reduce any chance of having a non-working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.

    All products tested before dispatch in the UK
    FAQ'S

    Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".

    The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility.  The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid.  In terms of safety, both are on par with each other.

    Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

    Rough guide:

    • 5M is good for an average size car
    • 7.5M is good for large cars and shorter wheelbase vans
    • 10M is good for a medium length van (around 6M)
    • 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
    • 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
    • 20M is good for super long vehicles
    Detailed Images

    Our general 4 pin cable based fitting instructions.

    4 pin reversing camera kit fitting instructions

    Instructions for our clip-over mirror monitor + 700tvl option.

    Our instructions for the rear view mirror monitor


    Instructions for our windscreen bracket mounting mirror monitor + 700tvl option.

    Rear View mirror monitor for swan neck brackets menu guide instructions

    Instructions for our mirror monitor (Clip-over and Windscreen Bracket Mounting), supplied with the 1080P AHD option.

    Tech Specs of Monitor Provided with 700tvl Spec Camera Option

    • 7” Colour LCD screen
    • Power supply: 12V/24V
    • Power Consumption: 8.64W or lower
    • Digital Screen Resolution: 800 x3(RGB)x480
    • Operating Temperature: -10C to +65C
    • 2 Inputs
    • PAL/NTSC/AUTO
    • Rotation/Mirror on both channels
    • Full function Remote Control

    700tvl Camera Tech Specs

    • Image Sensor : CMOS4089
    • Effective Pixels : 976(H) * 592(V)
    • TV Lines : 700TVL
    • TV System : PAL
    • Lens : 1.9mm
    • Min illumination 0.1Lux / 0Lux (LED ON)
    • Waterproof : IP68
    • Viewing angle : 150°(D)
    • Power Voltage : 12V
    • Operating temperature : -20℃~+70℃

    Tech Specs of Monitor Provided with 1080P Spec Camera Option

    • Screen Size : 7 inches diagonally measured
    • Aspect Ratio : 16:9
    • Resolution : 1024 (W) x RGB x 600 (H)
    • TV System : Auto
    • Brightness : 300cd / m2
    • Contrast : 400 : 1
    • Active Area : 154.08(w) x 85.92(h) mm
    • Viewing Angle : U/D : 40°/65°, R/L : 65°/65°
    • Video Format : AHD / CVBS
    • Mirror Flip : Non-mirror, mirror, flip, mirror flip
    • Video Channels : Two channel video input
    • Reverse Function : Single trigger (ruler setting function)
    • Power Supply : 12/24V DC, <6W
    • Operating Temperature : -20°C to +65°C
    • Storage Temperature : -25°C to +70°C

    1080P Camera Tech Specs

    • Image Sensor : CMOS2399 1080P AHD
    • Effective Pixels : 1920(H) * 1080(V)
    • TV System : PAL
    • Lens : 1.9mm
    • Min illumination 0.1Lux / 0Lux (LED ON)
    • Waterproof : IP68
    • Viewing angle : 150°(D)
    • Power Voltage : 12V
    • Operating temperature : -20℃~+70℃
