White Van Motorhome Bolt Reversing Camera | Rear Wall or Number Plate Mounting | CAM072

About the White Van Motorhome Bolt Reversing Camera

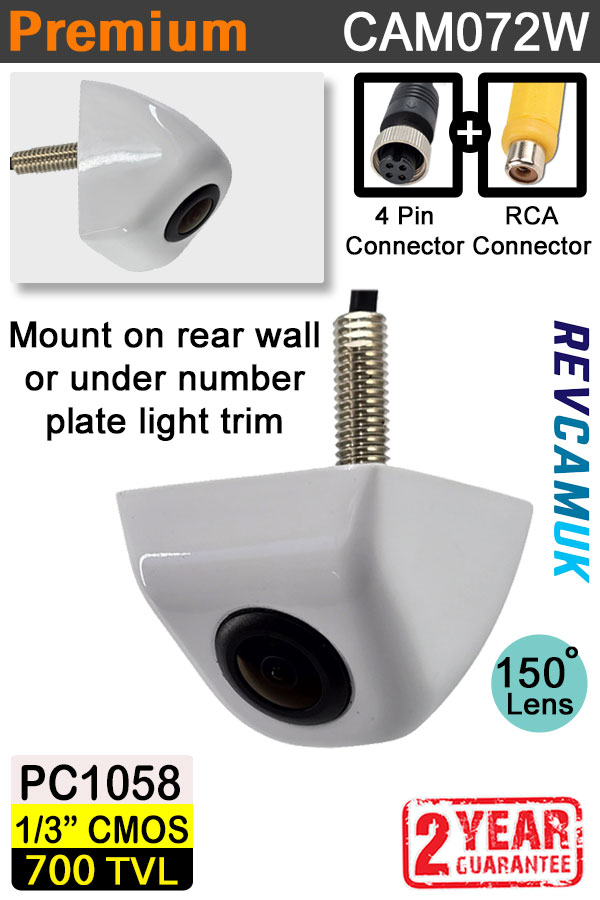

White Motorhome reversing camera, fitted with a vertical flip so you can mount the camera up high on a vertical wall or low down on the numberplate light trim. Comes with both 4 Pin Connector AND RCA connector wiring. High-resolution image Sensor with a wide field of view. The cable entry is via the bolt that fixes it to the bodywork. Simply drill a hole for the bolt, attach the supplied split nut and tighten to secure. Guideline function can be turned ON or OFF. Adhesive camera base gasket supplied.

Small White Discreet Reverse Camera - This camera is very small and discreet, which makes it hard to spot when installed against a white vehicle such as a Motorhome or Van.

Great Image Quality - The camera has a high-quality PC1058 Image Sensor fitted, which returns a 700tvl high-resolution image. Check out our photos of the camera outputting its image to a Monitor (sold separately).

Wide Viewing Angle - With a 150 degree lens fitted, this camera gives you a lovely wide field of view to help avoid obstacles around the rear of your vehicle.

6G Lens - Fitted with 6x Glass Layers, 1 with a coated film filter that only allows 380-650nm visible light to pass (the same spectrum as the human eye). This reduces interference from other wavelengths such as UV and IR light. Also helping prevents damaging UV rays from affecting the image sensor. This all means that you get a great colour replication and a clear image.

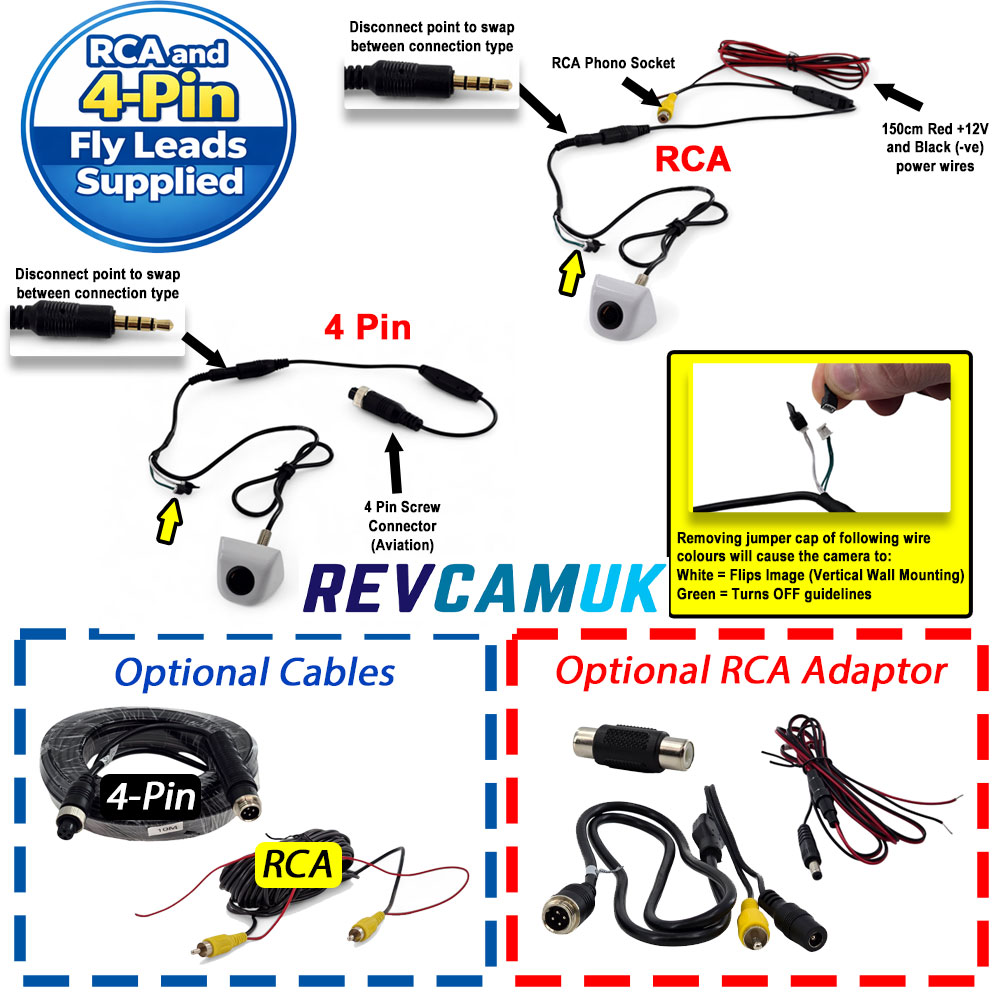

Vertical Flip Function allows mounting to Rear Wall OR above Number Plate - We had this camera produced with a function loop that connects in to a jumper on the camera main board to tell it whether you plan to mount the camera against a rear wall, or hanging underneath the number plate light trim. For fitting to the rear wall simply unplug the jumper cap on the white wire loop (see our images). If you are currently watching the camera whilst removing the caps the change won't take effect until the camera has been power cycled (system turned off and back on).

Static Guideline Function ON/OFF - As standard the guidelines are turned ON, to remove them unplug the jumper cap on the green wire loop (see images). If you are currently watching the camera whilst removing the caps the change won't take effect until the camera has been power cycled (system turned off and back on).

4 Pin + RCA Connector Wiring Supplied - This camera has a small connector to help get through the small hole drilled for the bolt that the wire comes through. This then connects in to one of two wiring looms. The first is 4 pin screw aviation type. The second is RCA Phono connector type.

Increased Reversing Safety - With almost a quarter of vehicle accidents in the UK occur when in reverse, this brilliant little camera will help to reduce blindspots and help to avoid incidents.
