Wing Mirror Mount Clamping Side View Camera | Sony CCD | 4 Pin connector | CAM777

Category: 4 Pin Screw Connector Reversing Cameras

Gallery Ask a question about this product

Description

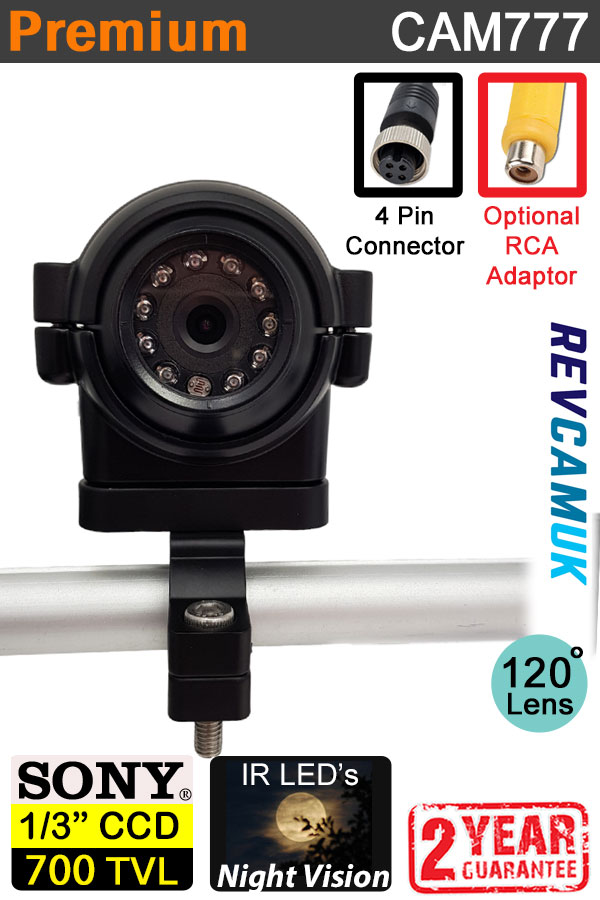

Clamping Wing Mirror Mount Side View Camera with Sony CCD image sensor

Can be clamped on to various diameters of tubes such as HGV/Lorry/LGV side mirrors (tubular type) to use as a blind spot or side view camera, clamped to a bike rack to be used as a reversing camera.
Fitted with one of the top quality image sensors - 1/3" Sony 700TVL CCD.
Supplied with 4 pin connector, if you require an RCA/Phono type, then please use the drop down menu on this page to order the adaptors.

Image Sensor fitted inside Camera

With this camera, we are using the Sony 1/3" CCD 700TVL image sensor. We consider this the joint best image sensor in terms of picture quality you can get on a reversing camera.

Detailed Images

Camera Dimensions

Optional Extra - Adaptor Set (bundle discount included)

Instructions

Fitting a 4 pin reverse camera - including using adaptors to RCA/Phono

Download

See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Technical Specification

Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
Infra red LEDs to provide night view
Waterproof
Mirror image
