Fiat Ducato, Citroen Relay, Peugeot Boxer, Vauxhall Movano brake light reversing camera - screw version | CAM1723

Category: Brake Light Reversing Cameras

Printable Version

Gallery Ask a question about this product

Description

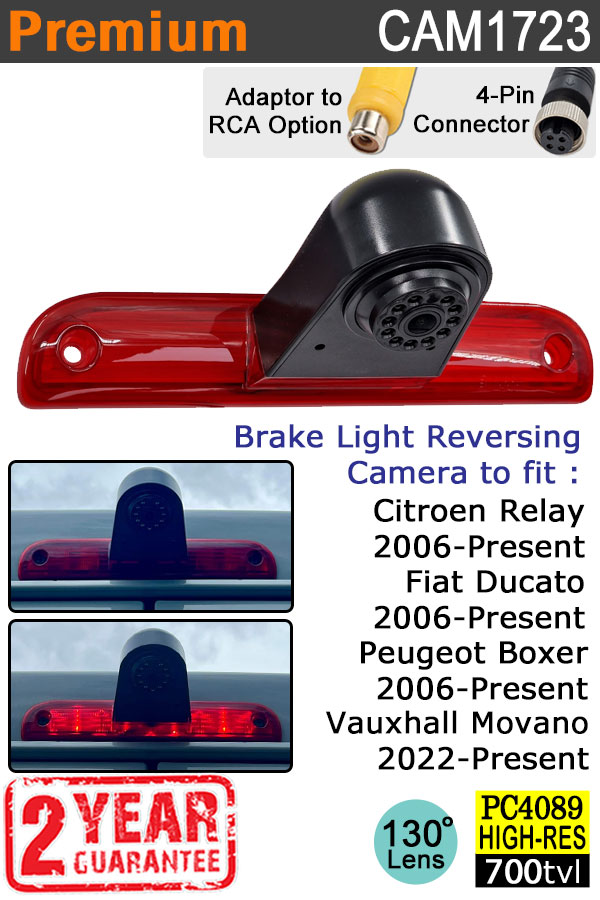

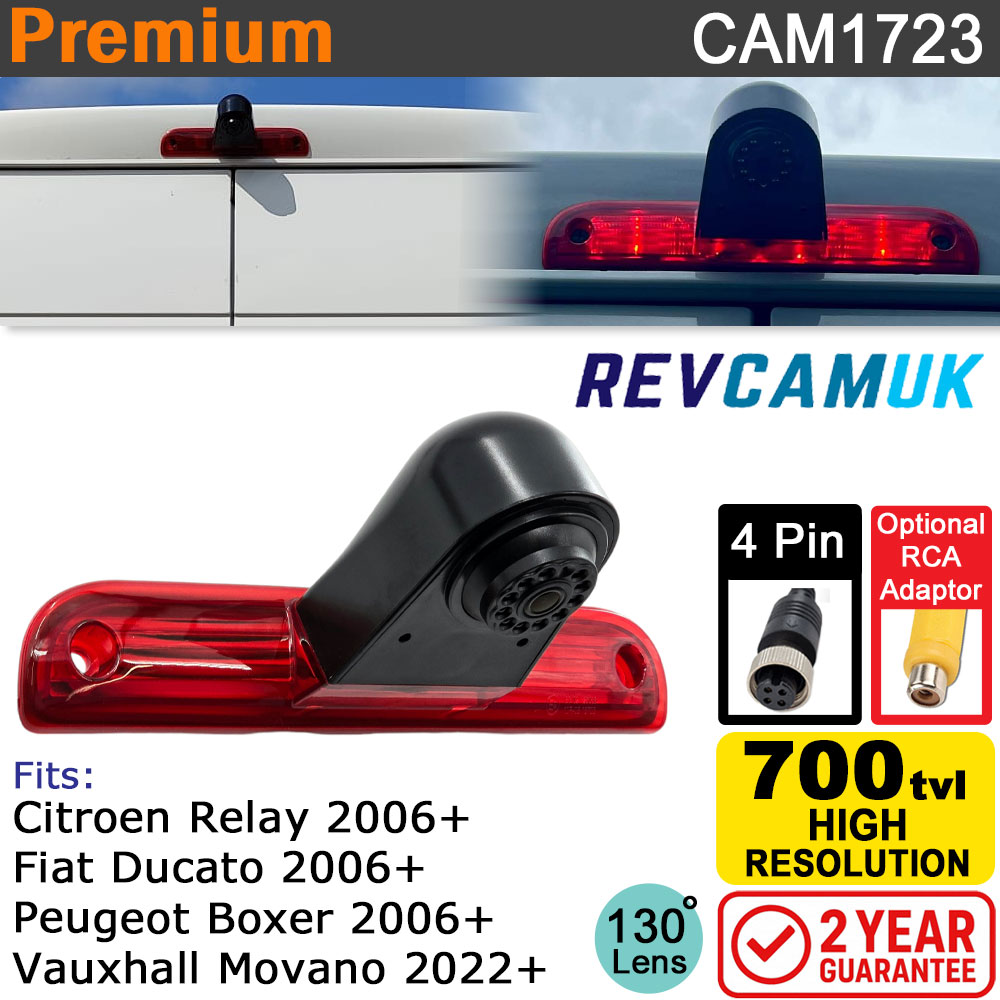

Fiat Ducato, Citroen Relay, Peugeot Boxer, Vauxhall Movano brake light reversing camera

Tidy Factory Look - The brake light reversing camera is designed to be an exact fit to the location of the existing high-level brake light, retaining a tidy factory-fitted appearance on your van.
Easy Installation - This camera uses the original mounting points making it easy to secure to vehicle.
IP68 Waterproof - This camera is rated to IP68, a high rating to cope with the strongest torrential downpours you may experience with the great British summer weather.
Superb Image Quality - This camera is fitted with an upgraded 4089 image sensor, which gives great colour replication and also returns a high resolution—700tvl. The camera also boasts an all-glass lens, which lasts a lot longer than the cheaper plastic-glass lens available from elsewhere (ours avoids the UV fade issues).
Ultra Wide Angle - Our brake light reversing camera boasts a 160-degree (diagonally measure) ultra-wide viewing angle. The extra wide angle gives you the wide angle required to avoid obstacles around the rear of your vehicle.
Excellent Build Quality - We picked the best brake light camera manufacturer we have come across to build these cameras to our spec. They may cost us more to bring in, but the picture quality, customer satisfaction, and reliability is worth it.
2-Year Guarantee - The factory we use is happy to support the two-year guarantee we offer for the brake light cameras. Feel reassured that your purchase is protected by us - Reversing Cameras UK Ltd, aka REVCAMUK. If any non-user damage fault shows itself in the two-year post-sale period, we will swap the camera to ensure your vehicles reversing safety.

Brake Light Reversing Camera to fit :

Citroen Relay 2006-Present

Peugeot Boxer 2006-Present

Fiat Ducato 2006-Present

Vauxhall Movano 2022-Present

Add a monitor and cable with one of our premium brake light reversing camera kits

If you would like a complete reversing camera kit for your van, including a display, please check out our links below. The kits come with this camera, a quality monitor, cabling, and a 2 year guarantee.

Fitting the brake light camera

Fitting the brake light camera is very simple. The brake light reversing camera re-uses your existing brake light strip. Simply remove the existing brake light via the two securing cross head screws. Gently release the three tabs on the top and bottom of the brake light to release the light strip. Then transplant this in to the new brake light camera. Re-screw this back to your vehicle with the two original screws.

See our video below for details about fitting the brake light camera

FAQ'S

Ask a question about this product

Will the brake light reversing camera be an exact replacement for my Fiat Ducato, Citroen Relay, Peugeot Boxer, or Vauxhall Movano van?

Our reverse camera for the brake light will fit the same entry point and fixings as the original camera. In fact this particular model uses the original brake lights light strip.

Why can I find some sellers selling cheaper versions of the reversing camera that look the same?

There could be a number of reasons they may be cheaper than us, the most common are below :

Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
Cheaper Components Used - There are different standards of image sensor, support chips, lenses and camera bodies. We opt for better quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.

In short, trust us to find the best quality and support you for safety and peace of mind.

Detailed Images

Installation images sent in of brake light reversing camera fitted to Citroen Relay, Peugeot Boxer, and Fiat Ducato vans

Fiat Ducato, Citroen Relay, and Peugeot Boxer Reversing Camera for Brake Light Mounting

Installation Guide for Transferring light strip from OEM brake light to the new Brake Light Reversing Camera

Instructions

Fitting a 4 pin reverse camera - including using adaptors to RCA/Phono

Download

See our general guide to installing 4 pin reversing cameras. This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Technical Specs

Sensor: 1/3" PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
