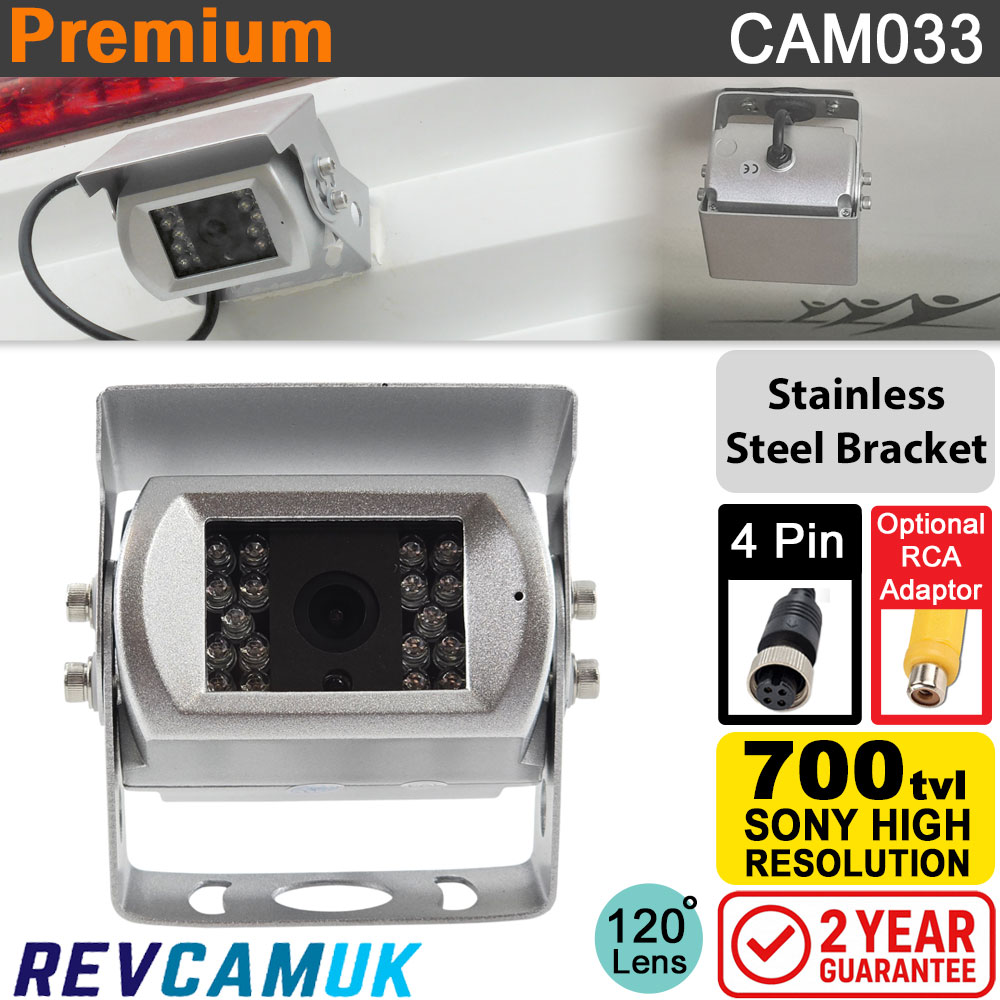

Silver Parking Camera | Sony CCD | 4 pin connector | Stainless Steel bracket | CAM033

Price

£68.00

VAT Included £11.33
Availability IN STOCK
Product Code: CAM033

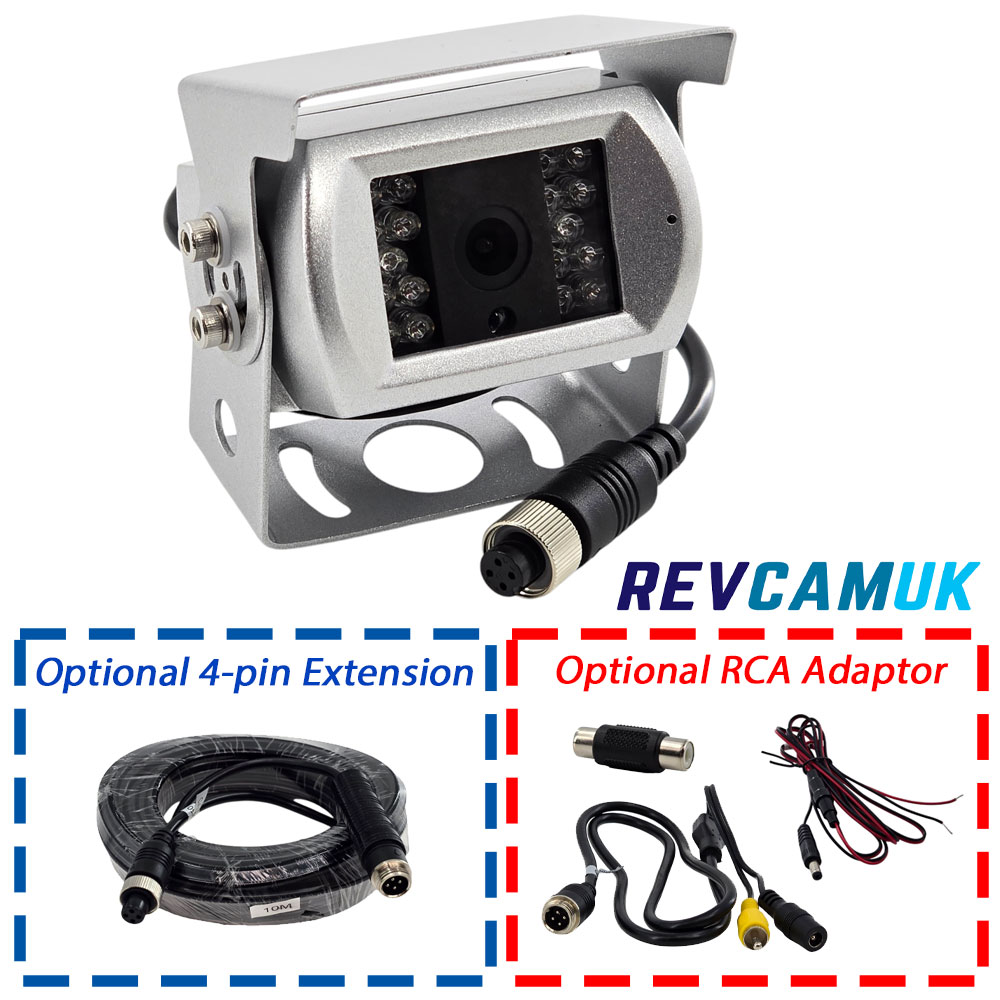

Extension Cable?
4 Pin to RCA/Phono Adaptor?
Quantity
(from 1 to 46)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

CAM033 - Reverse parking camera with Sony CCD 700TVL image sensor and silver painted stainless steel bracket

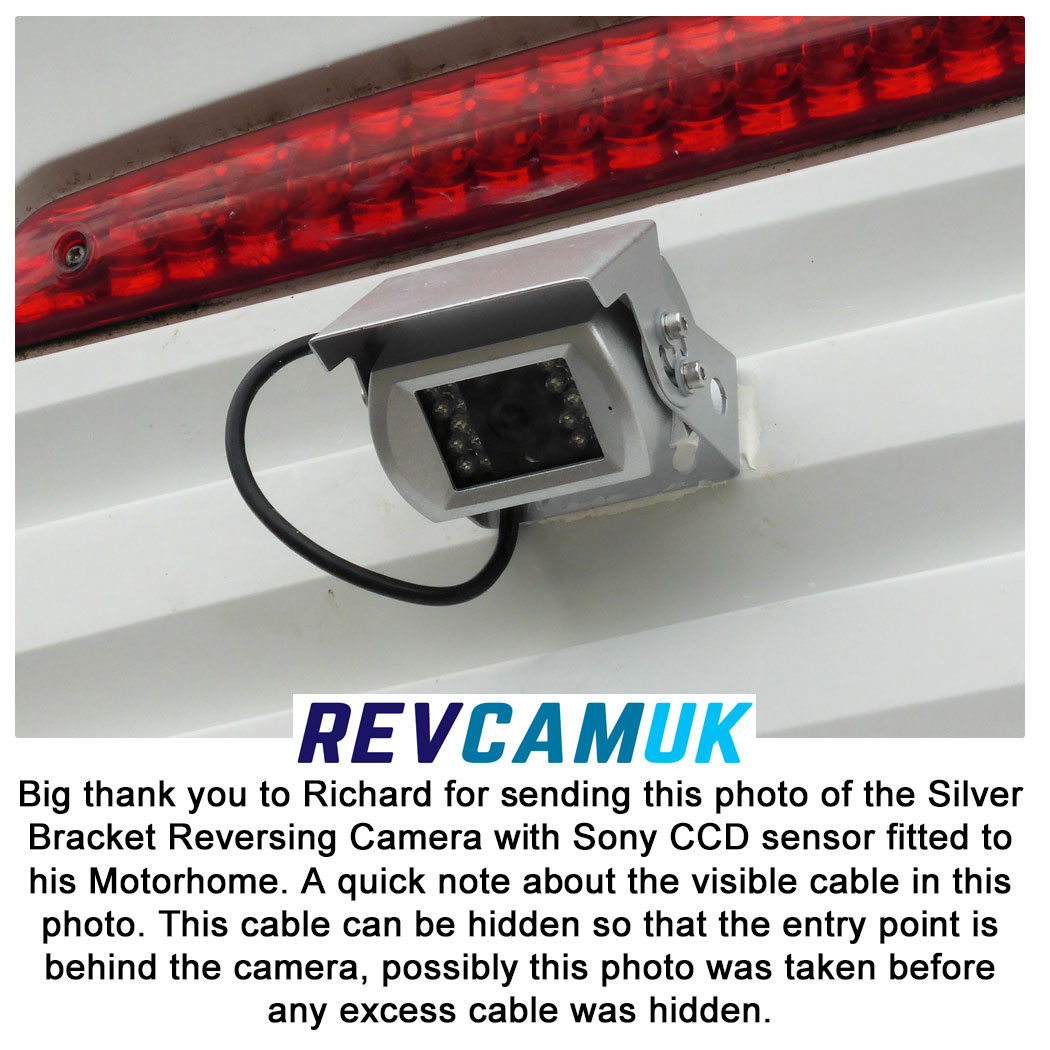

  • Bracket reversing cameras such as this one are still the most popular style of camera, especially with motorhomes, caravans, HGV, and vans.
  • The camera bracket is made from corrosion resistant stainless steel that has been painted silver.
  • The image sensor is made by Sony, it is a 1/3" CCD 700TVL image sensor.  This means you get good day and night picture.
  • There are night vision IR LED's fitted to allow you to see in the dark when parking.  These come on automatically as the light level drops.  The light is only visible to the camera, it won't shine distracting light at any vehicles behind you.
  • The reversing camera will send a mirror image to the monitor.  This is essential for cameras pointing backwards, to ensure that the obstacles on your left are displayed to the left of the display - like a mirror does.
  • The camera has a fly lead with a 4 pin screw connector (also known as an aviation connector).  This is our preferred type of connector, and is a very good waterproof connection, thanks to the mechanical seal that the rubber O-ring produces, when the screw locking collar is tightened up.
  • The camera will cope with whatever the weather can throw at it as it is waterproof to IP68.
  • The reversing camera has approximately 120 degree viewing angle (diagonally measured).

Anti-Corrosion Stainless Steel Camera Bracket

The camera has a stainless steel bracket, which is shown to last a very long time without corrosion, unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months.

stainless steel bracket for reversing camera

Image Sensor for Camera

An image sensor is the part of the camera that detects and captures information to make an image, there are various sizes of sensor usually between 1/4" and 1/3" with the larger sensors able to capture more detail.  In the old days, you used to have to pick CCD for quality as CMOS wasn't as good, this has changed recently with some advancements in CMOS technology (there are varying quality levels of CMOS to confuse matters).  In this particular kit, we are using the Sony 1/3" CCD 700TVL image sensor inside the camera.  We consider this the joint best image sensor in terms of picture quality you can get on a reversing camera.

image sensor inside camera

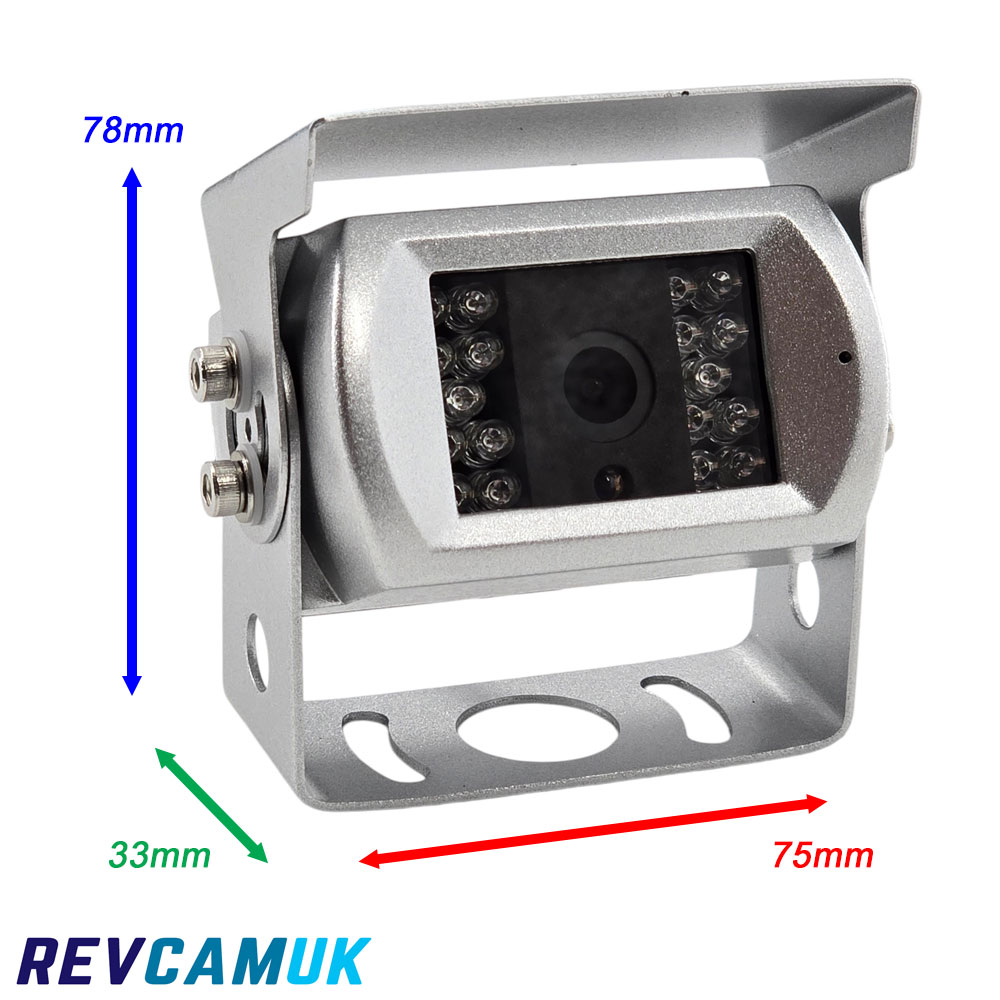

Detailed Images

See our general guide to installing 4 pin reversing cameras.  This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
18 Infra red LEDs to provide night view
Waterproof with adjustable shade to prevent glare from sun
Mirror image only
Stainless Steel Bracket (painted)
