Mercedes Vito Tail lift door vans from 2016+ Brake Light Reversing Camera | CAM440

Price

£90.00

VAT Included £15.00
Availability IN STOCK
Product Code: CAM440
4 Pin to RCA/Phono Adaptor?
Cable Options
Quantity
(from 1 to 3)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

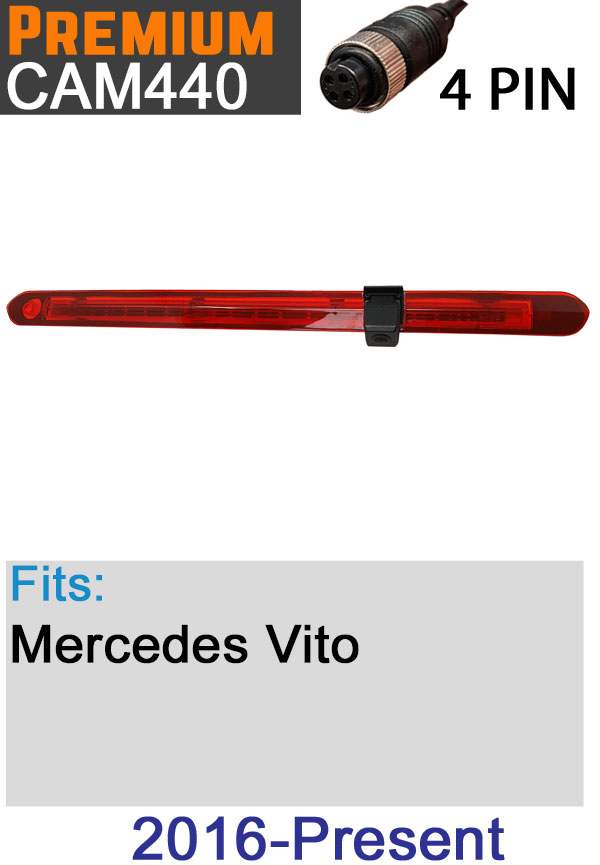

Mercedes Vito Tail Lift Door 2016+ brake light reversing camera

  • Brake light reversing cameras have quickly become the most popular option when retrofitting a camera on to a panel van as it's easy to install and looks original.
  • This model is designed to fit the Mercedes Vito vans with the single tail lift door built from 2016 onwards.
  • The camera uses the preferred 4 pin aviation connector, however if you intend to use phono/RCA cabling we sell an adaptor set that is selectable in the drop down options of this listing.
  • Waterproof to IP69K.
  • 170 degrees ultra-wide viewing angle.

Image Sensor for Camera

This particular system uses the PC4089 1/3" Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication. We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure. With our camera you can be assured of good performance and long term reliability.

Image sensor key
FAQ'S

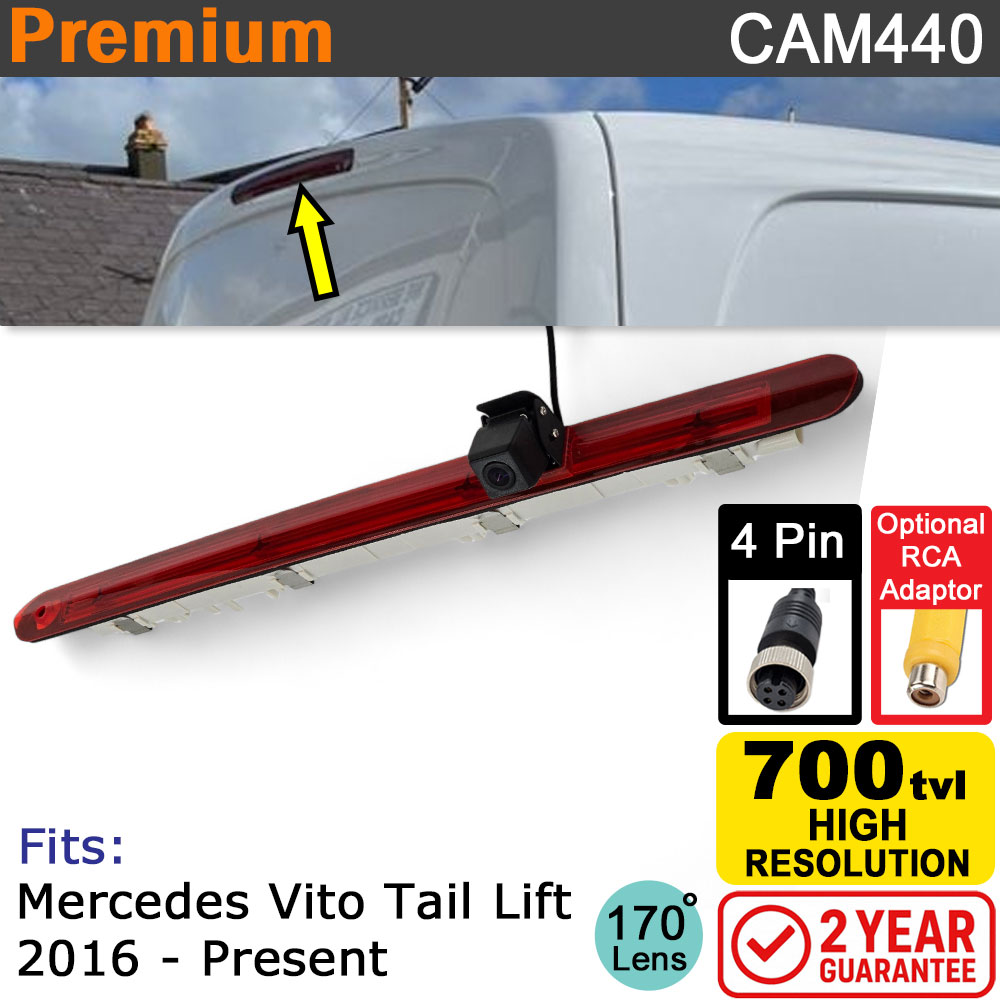

The reverse camera will fit where the original high-level stop lamp was. This will still function as a brake light, as well as giving enhanced safety with the improved rear vision.

There could be a number of reasons they may be cheaper than us, the most common are below :

  • Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
  • Cheaper Components Used - There are different standards of image sensor, support chips, lenses and camera bodies. We opt for better quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
  • Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.

In short, trust us to find the best quality and support you for safety and peace of mind.

Detailed Images

See our general guide to installing 4 pin reversing cameras.  This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Image Sensor : 1/3" colour Super CMOS
Effective Pixels : 976(H) x 592(V)
Resolution : 700TVL
Minimum illuminations : 0.1 Lux (day)
Lens Angle : 170 degrees
Waterproof : IP69K
AGC : Auto
Signal to noise ratio : Better than 48dB
White balance : Auto
Electronic Shutter : Auto
Power Supply : DC12V
Operating Temperature : -20C to 70C RH95% MAX
Storage Temperature : -40C to 80C RH95% MAX
