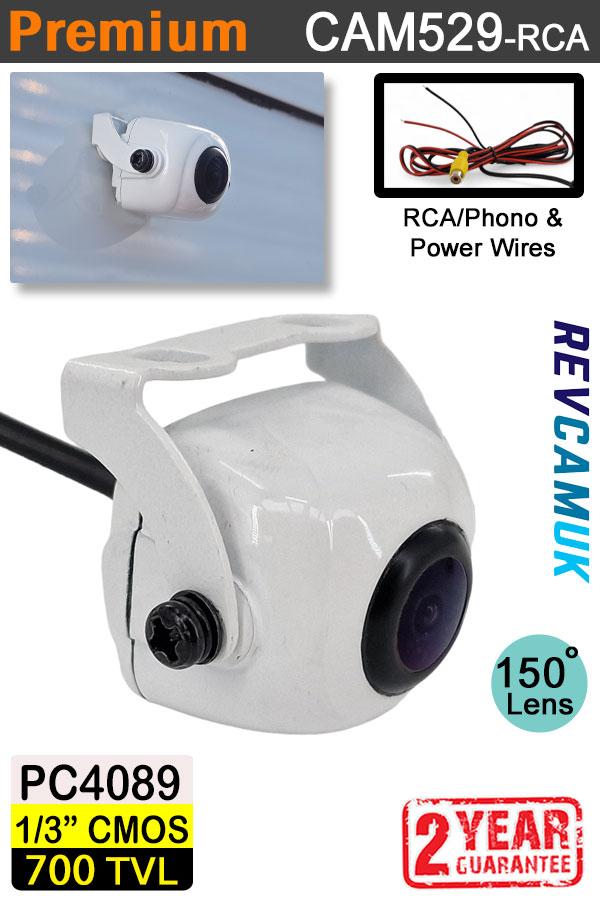

Small White Bracket Reversing Camera | 700TVL CMOS | RCA/Phono connector | CAM529-RCA

About the Small White Bracket Reversing Camera

This is one of our latest cameras in, we wanted to add a small flexible camera to our range, but still with a high resolution.  We asked for these cameras to be made with the PC4089 image sensor - the same sensor we use in our brake light cameras, we spent extra to spec the cameras out with 4 glass lenses, instead of the standard 2 glass/2 plastic that you would usually see on these type of cameras (we chose all glass lenses because the plastic lenses go cloudy over time, because of UV exposure from the sun).  The PC4089 image sensor is one of the modern latest generation of CMOS (not to be confused with the cheap and cheerful CMOS of the past).  As the price is lower than CCD, we have passed these savings on to you.

The camera has an RCA/Phono connector on it's lead, with positive and earth tails.

The camera is waterproof up to IP68.

There are trigger loops which can turn guidelines on/off, and mirror/unmirror the camera (non-mirror is ideal if using the camera facing forward).

Camera works on 12V.

Technical Specs

Image device:- PC4089 CMOS sensor

Resolution: 700 TVL

Mirror/Normal image selectable

Selectable guidelines

NTSC format

IP rating: Ip68

Camera angle: 170 degrees diagonal

HD all glass composite lens

10G vibration rating
