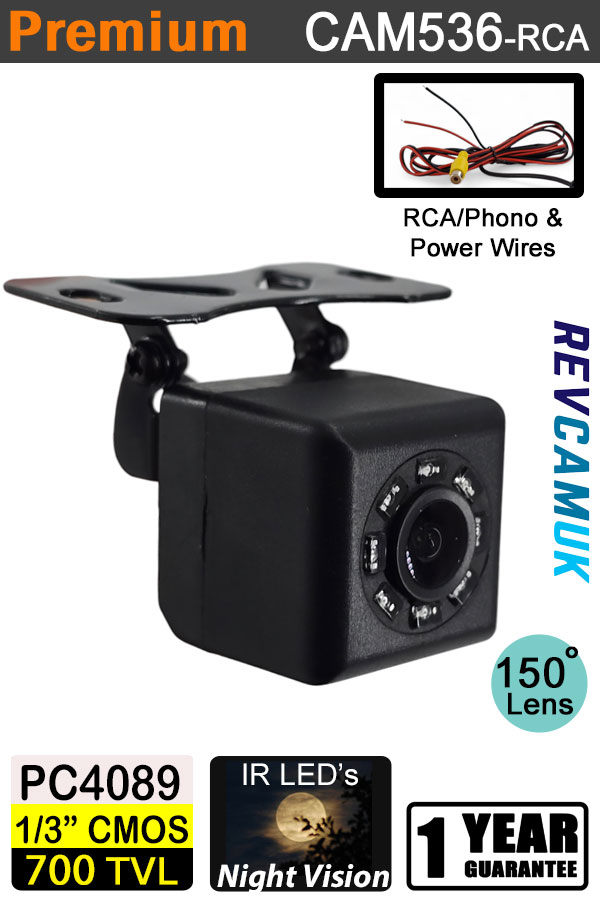

CAM536 - RCA Phono 700TVL High Res CMOS Small Reversing Camera With Night Vision

This is one of our latest cameras in, we wanted to add a small flexible camera to our range, with a high resolution, but still with IR LED's for night time.  We asked for these cameras to be made with the PC4089 image sensor - the same sensor we use in our brake light cameras, we spent extra to spec the cameras out with 4 glass lenses, instead of the standard 2 glass/2 plastic that you would usually see on these type of cameras (we chose all glass lenses because the plastic lenses go cloudy over time, because of UV exposure from the sun).  The PC4089 image sensor is one of the modern latest generation of CMOS (not to be confused with the cheap and cheerful CMOS of the past).  As the price is lower than CCD, we have passed these savings on to you.

The camera has the phono socket on it's fly lead and a 2.1mm DC power input (we provide adaptor to +12v and earth bare wire).

The camera is waterproof up to IP68.

There are trigger loops which can turn guidelines on/off, and mirror/unmirror the camera (non-mirror is ideal if using the camera facing forward).

Camera works on 12V but if you buy with a 12V/24V monitor, the monitor reduces the voltage down to 12V.  This is the norm, and most 24V systems actually only supply 12V to the camera.

Technical Specs

Image device:- PC4089 CMOS sensor

Resolution: 700 TVL

Mirror image

Selectable grid lines

Selectable guidelines

NTSC format

IP rating: Ip68

Camera angle: 170 degrees diagonal

HD all glass composite lens

10G vibration rating
