Number Plate Frame Wireless Parking Camera Kit with 7" monitor | DW25F

About this kit

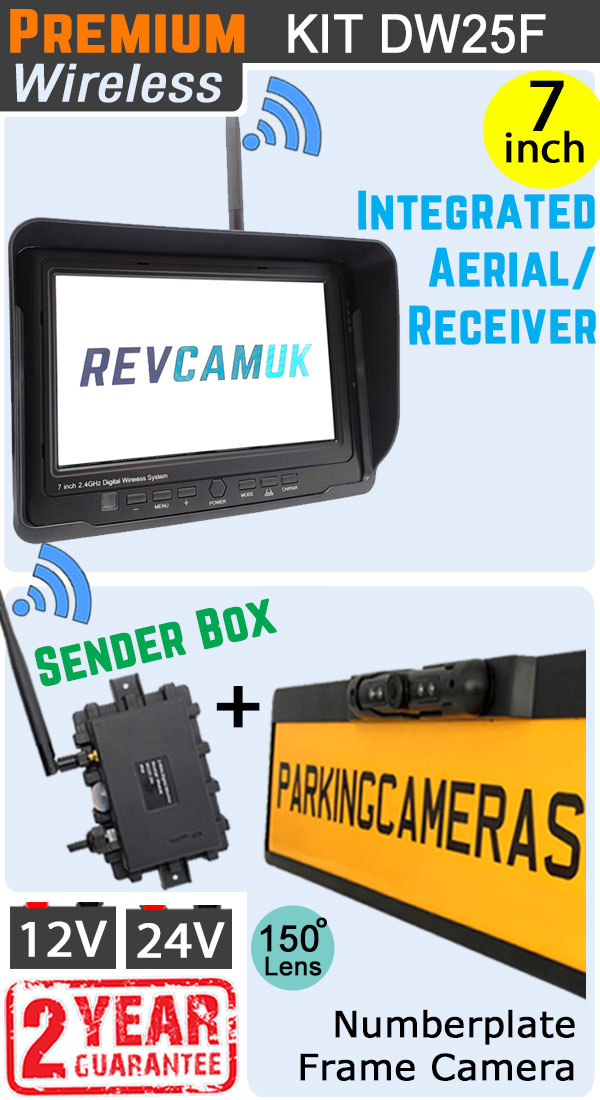

This kit combines our latest built in digital wireless receiver 7" monitor.  The monitor comes with both a cigarette lighter plug and a hardwire kit, so you can choose which method to power the monitor from. This kit comes with one of our numberplate frame cameras using the new generation 600TVL image sensor for an excellent image and a transmitter box to plug the camera in to.  Simply power the sender box and this will power the camera.  If you wish to mount the camera more than 2ft away from the sender box then please select an extension cable in the options to do this. This camera is popular as you simply remove your existing numberplate and place it in the frame of the camera and re-screw the numberplate back in to the original holes and this locks the camera frame in to position.

How to fit the number plate frame reverse camera to your vehicle

This camera is very easy to install.

1. Unscrew your existing number plate from your vehicle

2. Slide the number plate in to the new number plate frame camera

3. Fix the number plate + frame camera to the vehicle using the original screws

4. Make a small channel on the number plate light to allow the wire to enter the vehicle without getting crushed (or use the attached grommet).

See our video below to see the installation of the number plate reversing camera. For best viewing, ensure the playback quality is set to HD.

Download our fitting guide for the number plate frame camera

Digital Wireless Vs Older Analogue Wireless

This wireless reversing camera kit uses digital wireless technology, which is significantly better than the older analogue wireless (which is somehow still about today).  Below is some information about the differences:

• Wireless reversing camera systems are still carrying a bad reputation, due to the original analogue technology.  This older technology was so bad that we only stocked links that we marketed to cross the gap from the gas locker of a caravan, to a car boot.
• The older analogue models were restricted in the UK and European market to just 10mW of power due to the "dirty" signals they produced.  This would have interrupted other networks had they allowed a stronger signal.  The new digital wireless technology uses 10 times this, transmitting at 100mW.
• The older analogue wireless used to provide plenty of static interference to the picture, and we would hear many stories of people driving along, only to suddenly see the view from someone's CCTV camera, and even the odd horse - whilst passing a horse box trailer.  The new digital wireless technology never has any static, or picture from elsewhere.  The transmitter and receiver pair together and use encryption, to ensure that the receiver ignores any other interference that is present.

Who Should use Wireless?

We recommend wireless for customers who have trailers (like caravans, Artics and horsebox trailers), they are also useful when an application is very difficult to run a cable front to back (heavily fitted out vans etc).  We wouldn't recommend wireless for cars, the main reason being the time saved by not feeding a cable around 2-3M through the interior is usually negated by the time taken making an extra power link for the transmitter.  Also with modern cars running CANBUS to the lights, if you come across a sensitive supply you may need to run a relay which is more cost and time.  For cars we recommend our premium cabled kits where the monitor provides power to the camera and just one cable needs to be run front to back and you don't have to attach in to the reverse light supply unless you wanted to activate the trigger.
