Sony CCD White Bracket Wireless Reverse / Rear View Camera with 7" mirror monitor | DW31W
Description

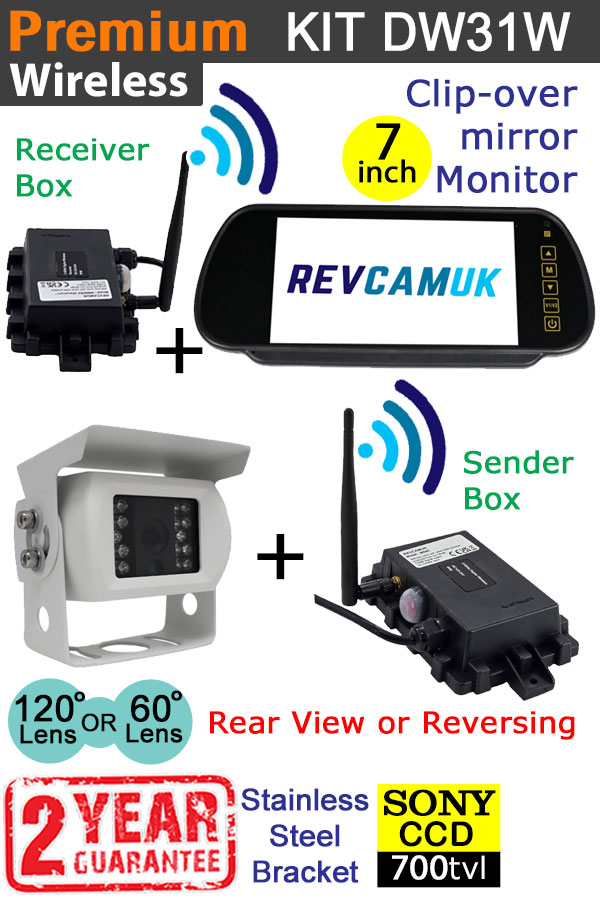

About the wireless reversing camera kit with 7 inch mirror monitor and white bracket camera
Lens Angle 60° vs 120°For people wishing to use the camera to only look back down the road as a rear view camera we would recommend a 60 degree lens option (selectable on the drop down menu), for people wanting a general camera to use for either parking or to see cars/motorbikes tucked in close whilst driving then we would recommend the 120 degree option. Digital Wireless Vs Older Analogue WirelessThis wireless reversing camera kit uses digital wireless technology, which is significantly better than the older analogue wireless (which is somehow still about today). Below is some information about the differences:
Who Should use Wireless?We recommend using wireless reversing camera kits for trailers and caravans. This makes fitting easier, as you don't have to install cables and a trailer link. If you have a modern car, van, or motorhome, then we recommend using a cabled reversing camera kit instead. This is because these modern vehicles don't often have non-canbus ignition switched power supplies to tap off. On caravans/trailers it is not an issue to tap off things like side lights to power the sender/camera as the car doesn't run canbus checks on trailer lights. Image Sensor for CameraAn image sensor is the part of the camera that detects and captures information to make an image, there are various sizes of sensor usually between 1/4" and 1/3" with the larger sensors able to capture more detail. In the old days, you used to have to pick CCD for quality as CMOS wasn't as good, this has changed recently with some advancements in CMOS technology (there are varying quality levels of CMOS to confuse matters). In this particular kit, we are using the Sony 1/3" CCD 700TVL image sensor inside the camera. We consider this the joint best image sensor in terms of picture quality you can get on a reversing camera. Anti-Corrosion Stainless Steel Camera BracketThe camera has a stainless steel bracket, which is shown to last a very long time without corrosion unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months. Monitor has Digital LCD Panel - Not Standard LCDThe monitor uses a Hi-Res digital panel screen with more than 3 times the amount of pixels of the standard analogue LCD screens most other retailers sell. (Please note some sellers multiply the first number by 3 for RGB, if we were to do that it sounds even more impressive (2400x480). We prefer to keep it simple but check carefully our competitors, the last number is normally better to go by as this is the number of vertical lines of pixels. 2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts. Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all wiring, digital links, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us. |
FAQ'S
Absolutely! The majority of people set it up this way. Our main customers for wireless kits are caravan owners. As a previous caravan owner myself, I found using one of our digital wireless kits made driving whilst towing so much easier. The camera gave me confidence when changing lanes, allowed me to be aware of drivers "tucked in" behind me, and allowed me to reverse back with ease when taking wrong turns.
We have yet to be defeated by a rig that has been too big for our digital wireless systems. We used to use a 40M system previously, and this was more than capable, our base level uses 60M spec chips, which is ample.
If the camera is being fitted to either a trailer or caravan then most people will use running/side lights, or a fridge supply. If the vehicle fitting to is a motorhome, then you would need to locate a non-canbus power supply that switches off when the ignition is off.
Detailed Images
Monitor Dimensions
Camera Dimensions
Wireless box dimensions
Wiring Layout (monitor side)
Cable layout on the sender box (camera side)
Video
Video showing our wireless reverse camera kit in action. Best watched with the settings set to 1080P.
This is a video to show how the clip over mirror monitor for reversing/rear view cameras clips over the existing interior mirror.
A guide to installing the wireless link boxes with our monitors/cameras.
Monitor7” Diagonally Measured Colour LCD screen 120° wide angle camera optionImage Sensor :1/3 SONY CCD 960H 700TVL 60° narrow angle camera optionImage Device:SONY 1/3" CCD 811 700TVL 960H Sender BoxPower Input DC 12-24 V |
