7" Mirror monitor display for AHD reversing camera - 2x inputs (720P/960P/1080P/CVBS) | MON293AHD

Category: Monitors for reversing camera
Printable Version
7
Monitor Dimensions
Mirror monitor clipped over original car/van mirror
Monitor cabling layout (extension leads to camera supplied separately)
Gallery Ask a question about this product
Price

£134.00

VAT Included £22.33
Availability IN STOCK
Product Code: MON293AHD
Quantity
(from 1 to 38)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

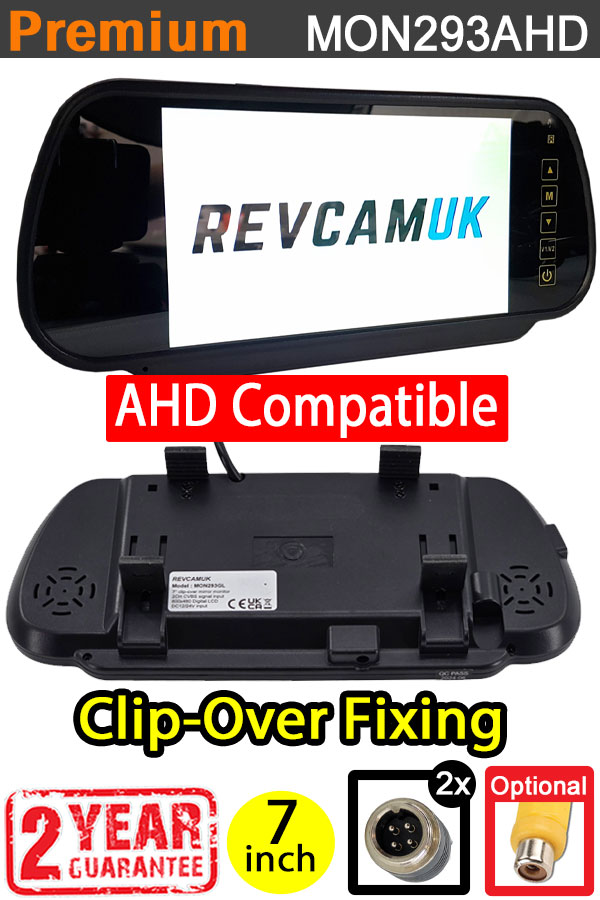

7 inch Mirror Monitor Display for AHD High Definition Reversing / Rear View Camera

  • This AHD monitor for reversing / rear view cameras has two hybrid channel inputs capable of displaying both standard definition cameras, as well as the latest 720P/960P/1080P output AHD reversing cameras.
  • The monitor is fitted with strong, spring loaded clamps (with rubber grips), that will clamp on to your existing interior mirror.

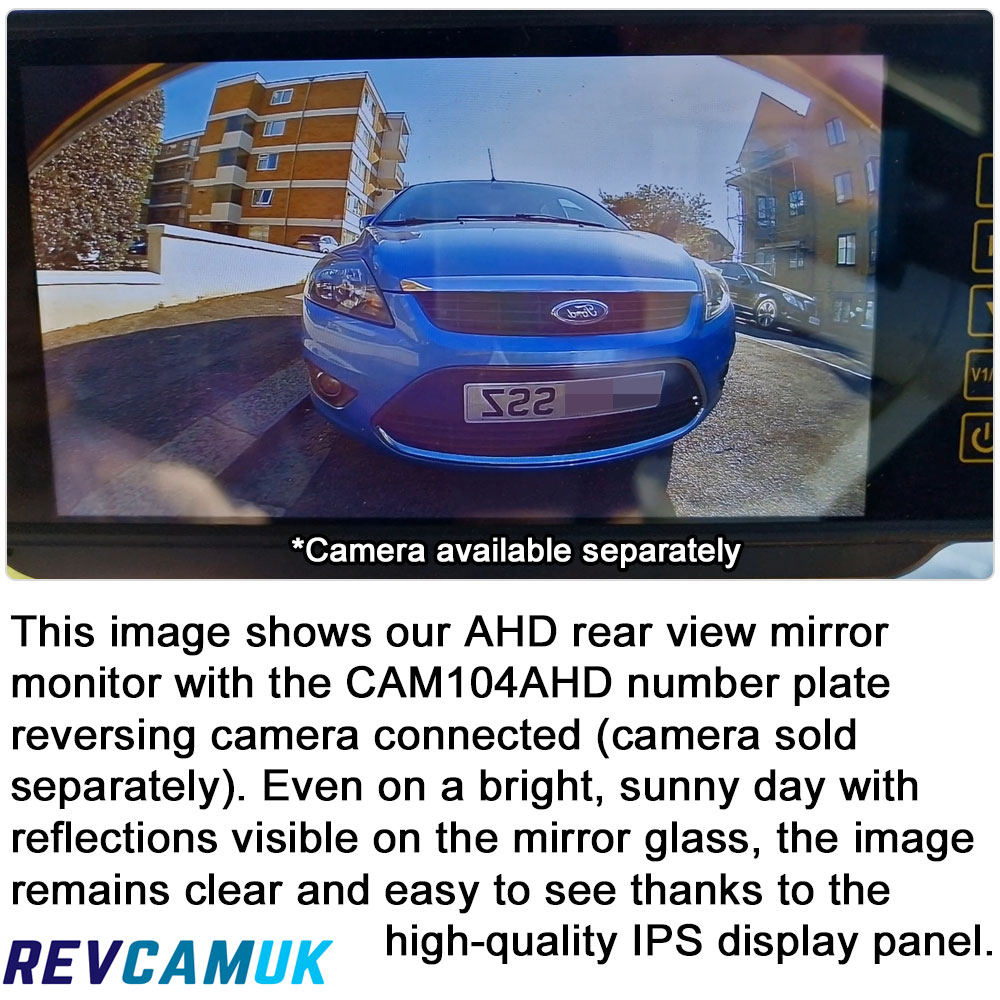

  • Amazing colour replication, and definition, thanks to the 7 inch IPS panel with 1024x600 pixels.
  • The monitor will power up the camera through the ever popular 4 pin aviation cables available from us (and many others now).
  • The monitor has lots of protections built in, and can work on 12V and 24V vehicles, regulating a supply to the reversing camera of 12V.

Please kindly note :- Although the monitor can be used with traditional standard definition (SD) reversing cameras, we find that the result is not as good as a dedicated standard definition monitor.  This monitor will perform at its best with AHD signal reversing cameras.
Detailed Images

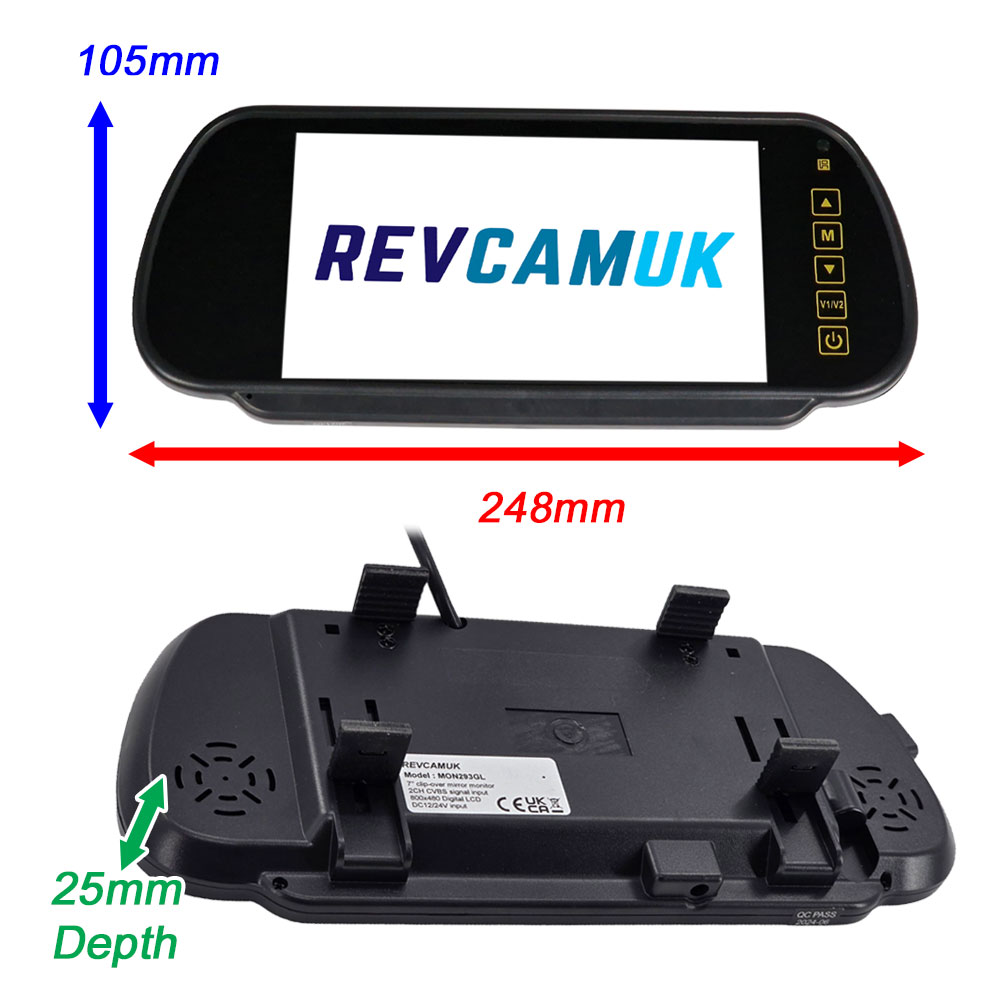

Monitor Dimensions

Monitor Dimensions

Mirror monitor clipped over original car/van mirror

Mirror monitor clipped over original car/van mirror

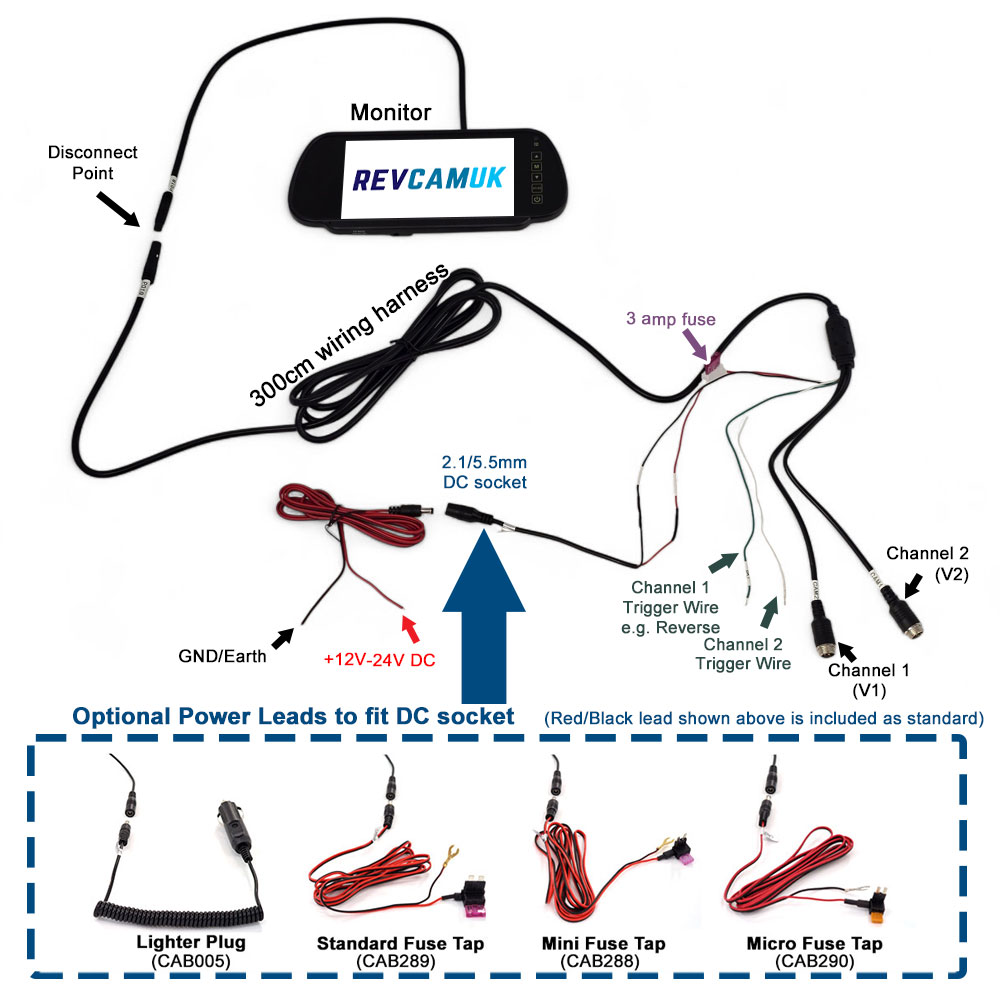

Monitor cabling layout (extension leads to camera supplied separately)

Monitor cabling layout (extension leads to camera supplied separately)

Instructions for our high definition rear view mirror monitor for AHD reversing cameras

Download

Guide to operating and installing the rear view mirror monitor that can display high definition AHD signal reversing cameras / rear view cameras.

instructions for the high definition rear view mirror monitor

Screen Size : 7 inches diagonally measured
Aspect Ratio : 16:9
Resolution : 1024 (W) x RGB x 600 (H)
TV System : Auto
Brightness : 300cd / m2
Contrast : 400 : 1
Active Area : 154.08(w) x 85.92(h) mm
Viewing Angle : U/D : 40°/65°, R/L : 65°/65°
Video Format : AHD / CVBS
Mirror Flip : Non-mirror, mirror, flip, mirror flip
Video Channels : Two channel video input
Reverse Function : Single trigger (ruler setting function)
Power Supply : 12/24V DC, <6W
Operating Temperature : -20°C to +65°C
Storage Temperature : -25°C to +70°C
