2x Sony CCD or AHD White Bracket Reverse Cameras Kit ideal for Horseboxes - PM32W

Price

£250.00

VAT Included £41.67
Availability IN STOCK
Product Code: KIT-PM32W
CCD or AHD (see description)
Mirror Mount (Info Below)
Cable Length 1
Cable Length 2
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 43)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

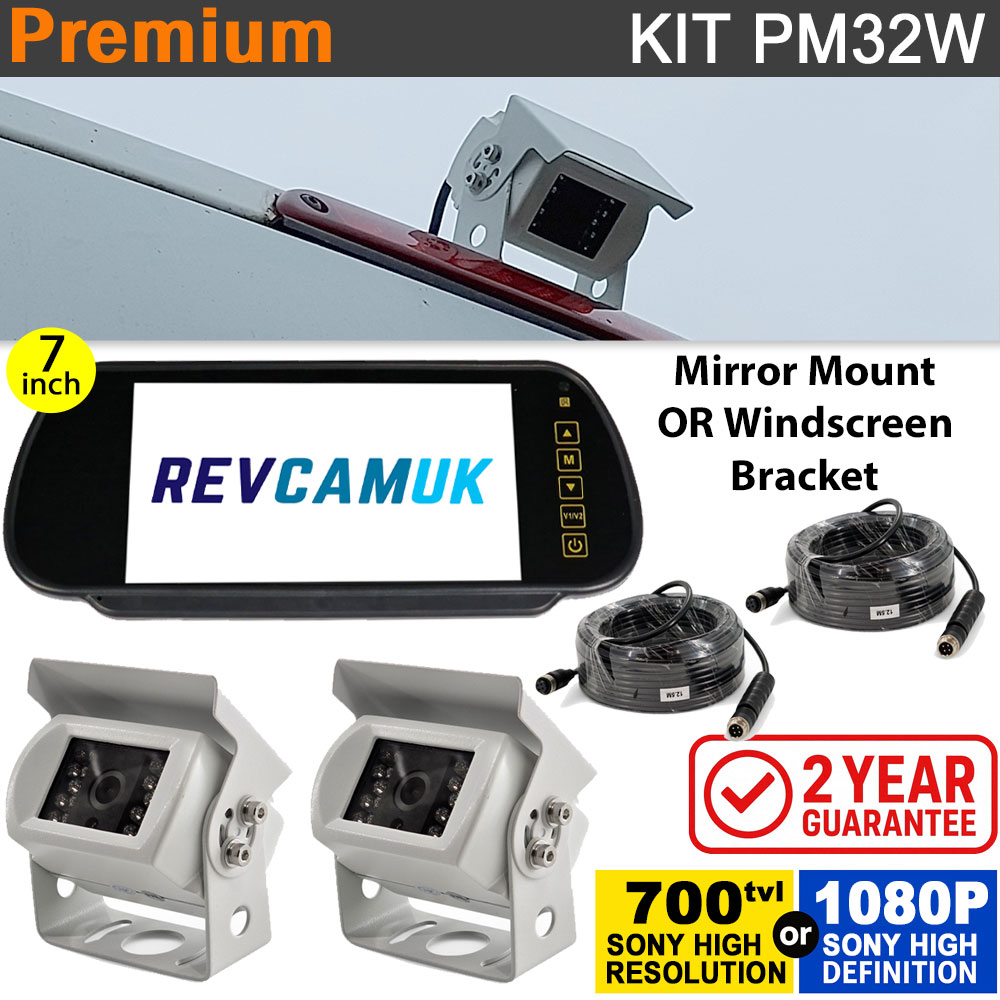

PM32W - 7 inch mirror monitor and 2x white bracket cameras kit

  • The reversing camera kit + additional camera comes with a rear view mirror monitor display, which is fitted with a 7" LCD panel. This monitor secures itself to the existing interior mirror with strong, spring-loaded grips.
  • Popular with customers who require two cameras in two different locations, such as horsebox owners. The cameras can be used both inside and outside.
  • Comes with two white bracket cameras, fitted with one of two top specification image sensors - either Sony CCD or Sony 1080P AHD (see more about the upgrade option further down). Switch between the two with the V1/V2 button on the monitor, or by attaching the trigger wire to reverse light feed.
  • The cameras are fitted with a stainless steel bracket, which has proven itself to protect against rust.
  • 120 degree wide angle lens fitted to cameras.
  • Easy to install, with a range of power options. Just one power connection powers the system.
  • 2 Year Guarantee and Lifetime Support from the leading UK specialists.

Upgrade Option - Sony CCD vs Sony AHD 1080P

  • Recent option, introduced in early 2022
  • AHD stands for Analogue High Definition - allows long analogue coax cables to be used to transmit high definition digital signal
  • Increases monitor display resolution by 60% with an IPS panel upgrade
  • Both cameras use an improved Sony 1080P AHD image sensor
  • You will experience improved dynamic range, more vivid colours, and superior low light level performance
  • Please note that AHD systems take a little longer to change channels/load up (approx. 2 seconds) vs standard CVBS systems.

Rest assured that whichever option you select, you will have a lovely, good quality image!

See our AHD (Analogue High Definition) FAQ page for more info


Mirror Mounting Options

For many years, we have supplied the universal clip-over existing interior mirror rear view monitor. More recently we also began to offer the monitor with a variety of attach direct to windscreen stalk brackets. We have windscreen brackets to fit the most popular van and motorhome models, as well as one where you can glue a mounting plate to the windscreen for a universal bracket to fit. See our guide below for more information about the different bracket options.

Rear View Mirror Monitor Bracket Choice Image

Some popular van models are listed below with the bracket options we commonly see. This is a rough guide, and we have seen lots of variation. If in doubt, Email Us a clear photo of what you have fitted to your windscreen.

ACCMB1

  • Mercedes Sprinter *WITH AUTO LIGHTS/WIPERS ONLY (See ACCMB5 for the more common type fitted)

ACCMB2

  • Ford Transit
  • Ford Tourneo
  • Ford Connect
    and many other Ford's

ACCMB2+MP35

  • Citroen Relay (More Recent Models)
  • Fiat Ducato (More Recent Models)
  • Ford Transit (Some Models)
  • Peugeot Boxer (More Recent Models)
  • Vauxhall Movano (Latest Models)
  • Vauxhall Vivaro (Latest Models)

ACCMB2+Button+Glue (For Windscreens with NO mounting plate for mirror)

For vehicles that have no mounting plate fitted to the vehicle, this option will provide you with a universal mounting plate, a bracket to fit this plate, as well as the Loctite 319 glue that is designed to fix this to your windscreen. We have researched and produced detailed fitting instructions for fixing the windscreen rear view mirror mounting plate up with Loctite 319 - read these carefully as they help avoid any issues.

ACCMB3

Various Volkswagen Vehicles such as :

  • VW Caddy
  • VW Crafter (Later Model - Earlier models see ACCMB5)
  • VW Transporter
    and many more....

ACCMB5

  • Mercedes Sprinter
  • Mercedes Vito
  • Nissan NV400/NV300
  • Renault Kangoo
  • Renault Master
  • Renault Trafic
  • Vauxhall Movano
  • VW Crafter (Pre-2017)
    and many more....

ACCMB6

  • Universal ceiling bracket to fit any vehicle by screwing the monitor to a surface above where the monitor is to be installed.

ACCMB7

  • Citroen Relay (Earlier models)
  • Fiat Ducato (Earlier models)
  • Iveco Daily
  • Peugeot Boxer (Earlier models)

Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
  • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
Power Supply Options including lighter plug and piggyback fuse taps

Easy-Fit Wiring

  • We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
  • This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
  • It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
  • It keeps contacts clean and dry, plus prevents them from accidental separation.
  • It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
  • All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

Anti-Corrosion Stainless Steel Camera Bracket

The camera has a stainless steel bracket, which is shown to last a very long time without corrosion unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months.

stainless steel bracket for reversing camera

2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.


Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.

FAQ'S

Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".

The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility.  The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid.  In terms of safety, both are on par with each other.

Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

Rough guide:

  • 5M is good for an average size car
  • 7.5M is good for large cars and shorter wheelbase vans
  • 10M is good for a medium length van (around 6M)
  • 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
  • 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
  • 20M is good for super long vehicles
Detailed Images
Video

How the monitor clips to mirror

Video to show how the clip-over mirror monitor attaches to the interior mirror.

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Instructions for our clip-over mirror monitor + Sony CCD option.

Our instructions for the rear view mirror monitor


Instructions for our windscreen bracket mounting mirror monitor + Sony CCD option.

Rear View mirror monitor for swan neck brackets menu guide instructions

Instructions for our mirror monitor (Clip-over and Windscreen Bracket Mounting), supplied with the Sony AHD 1080P option.

Standard Kit Sony CCD 700TVL Tech Specs

Monitor

7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x RGB x 480
2 Inputs
PAL/NTSC/AUTO

Camera

120° wide angle camera

Image Sensor :1/3 SONY CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Minimum Illuminstion: 0.01 LUX
S/N Ratio: ≥48dB(AGC OFF)
Horizontal Resolution: 700 TV lines
Video Output:1.0vp-p,75Ohm
Backlight compensation: Auto
Vibration Rate: 4G
Built-in Lens: 3.6mm
Lens Angle: 120° (D) / 85°(H)
Working Temperature: -20℃ to 80℃ RH95% Max
Storage Temperature: -30℃ to 85℃ RH95% Max
Waterproof to Ip68
18 Infra red LEDs to provide night view (approx 5-10M effective range)
Stainless Steel Bracket (painted)

Upgrade Kit Sony AHD 1080P Tech Specs

Monitor

Screen Size : 7 inches diagonally measured
Aspect Ratio : 16:9
Resolution : 1024 (W) x RGB x 600 (H)
TV System : Auto
Brightness : 300cd / m2
Contrast : 400 : 1
Active Area : 154.08(w) x 85.92(h) mm
Viewing Angle : U/D : 40°/65°, R/L : 65°/65°
Video Format : AHD / CVBS
Mirror Flip : Non-mirror, mirror, flip, mirror flip
Video Channels : Two channel video input
Reverse Function : Single trigger (ruler setting function)
Power Supply : 12/24V DC, <6W
Operating Temperature : -20°C to +65°C
Storage Temperature : -25°C to +70°C

Camera

120° wide angle camera

Image sensor : Sony IMX307 AHD
Resolution: 1920*1080P (2 million pixels)
Night Vision: 850 / IR-CUT night vision
Wide Dynamic: Support (mobile frame rate 100DB)
SNR: >52DB (AGC OFF)
System: PAL
Image: Mirror image
Waterproof Level: IP68
Shockproof Level: 4G
Connectors: 4 Pin aviation
Power Supply: 12V (our monitors supply 12V to the camera regardless of their input voltage)
Power Consumption: Approx 1.8W per camera
Video Output: 1080P
Working Temperature: -20°C to +70°C
Storage Temperature: -30°C to 85°C
Stainless Steel Bracket (painted)
