Vauxhall Vivaro (2014-2019) / Renault Trafic (2014-Present) Brake Light Reversing Camera kit with 7" Mirror Display - PM39BLE

Price

£190.00

VAT Included £31.67
Availability IN STOCK
Product Code: KIT-PM39BLE
Cable Length
Mirror Mounting Option
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 16)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

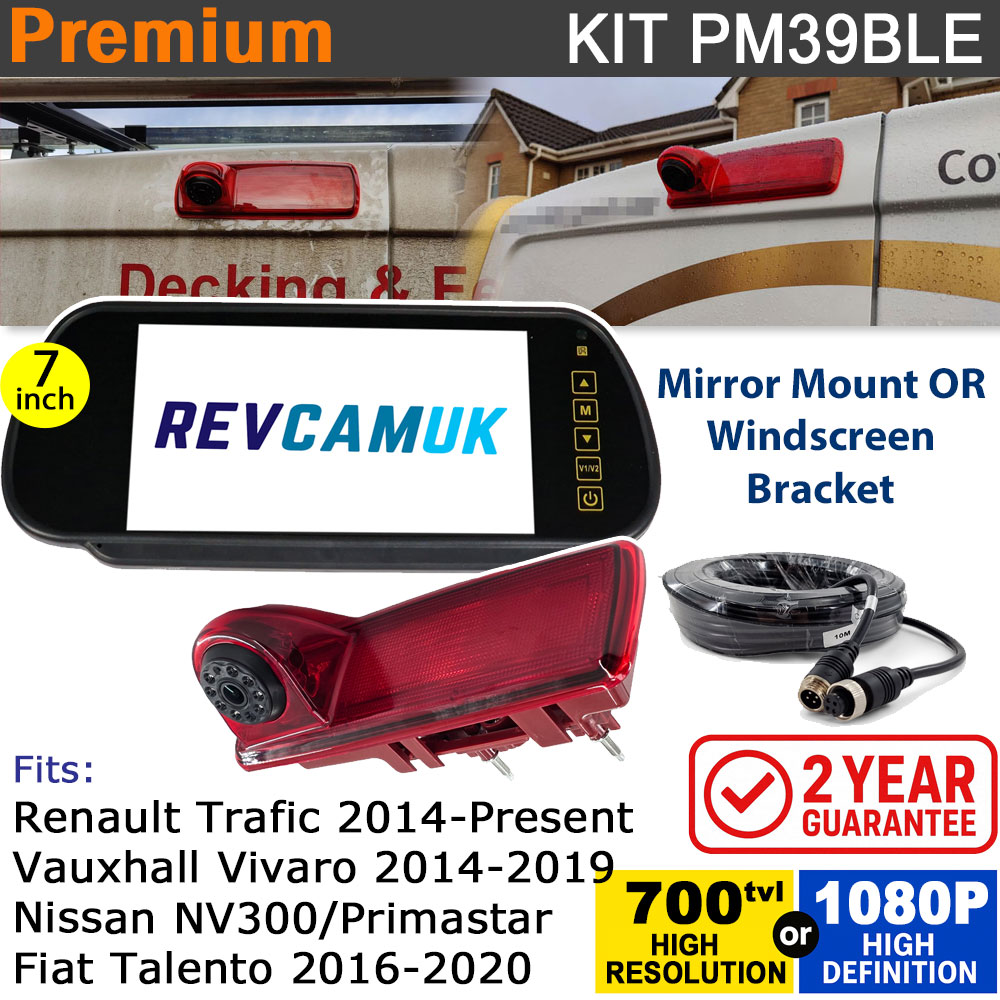

About the Vauxhall Vivaro / Renault Trafic brake light reversing camera with 7 inch mirror monitor kit

Fit a reversing camera kit to your Vauxhall Vivaro (2014-2019) or Renault Trafic (2014-Present) van with our premium brake light reversing camera kit with a mirror monitor. The camera is fitted with a premium upgraded image sensor - the PC4089 700tvl, not to mention a very high-quality mirror monitor—able to fully show off the camera's potential with its great colour replication and sharp image quality. Add or remove guidelines from the image to assist with parking. The monitor powers the reverse camera, making it easy to wire. We offer a 2-year Guarantee with us—the forum favourite REVCAMUK. Support beyond this time with low cost monitor repairs and spare parts. Choice of mirror mounting options.

  • Tidy Factory Look - The brake light reversing camera is designed to be an exact fit to the location of the existing high-level brake light, retaining a tidy factory-fitted appearance on your van.
  • Easy Installation - This camera uses the original mounting points making it easy to secure to vehicle.
  • IP68 Waterproof - This camera is rated to IP68, a high rating that will easily cope with the strongest torrential downpours you may experience with the great British summer weather.
  • Superb Image Quality - This camera is fitted with an upgraded 4089 image sensor, which gives great colour replication and also returns a high resolution—700tvl. The camera also boasts an all-glass lens, which lasts a lot longer than the cheaper plastic-glass lens available from elsewhere (ours avoids the UV fade issues).
  • Ultra Wide Angle - Our brake light reversing camera boasts a 160-degree (diagonally measured) ultra-wide viewing angle. The extra wide angle gives you the wide angle required to avoid obstacles around the rear of your vehicle.
  • Excellent Build Quality - We picked the best brake light camera manufacturer we have come across to build these cameras to our spec. They may cost us more to bring in, but the picture quality, customer satisfaction, and reliability is worth it.
  • 2-Year Guarantee - The factory we use is happy to support the two-year guarantee we offer for the brake light cameras. Feel reassured that your purchase is protected by us - Reversing Cameras UK Ltd, aka REVCAMUK. If any non-user damage fault shows itself in the two-year post-sale period, we will swap the camera to ensure your vehicles reversing safety.
  • Choice of Mirror Mounting Options - Choose from either a clip over the existing mirror monitor or a bracket directly to the windscreen option.

What vehicle does this fit?

Vauxhall Vivaro 2014-2019

Renault Trafic 2014+


Choice of mirror mounting options

We stock two types of mirror monitor depending on how you would like to mount the display.  The default option is the clip-over mirror monitor, which is fitted with strong spring-loaded clamps that attach securely to an existing interior mirror.  The second has screw holes on the rear, which can fit to our direct-to-windscreen swan neck bracket attachments. See the choice options below :

  • Clip-over mirror monitor type - Fitted with strong spring-loaded clamps that attach securely to an existing interior mirror.
Clip-over existing interior mirror monitor image

If you stock any of the other rear view mirror mounting options, you will receive a display with screw holes to the rear (see image below). This has no spring loaded clips, but a reinforced mounting back for our range of swan neck mirror brackets to fit. See info below for the various options available for this kit.

Direct to windscreen mirror monitor image

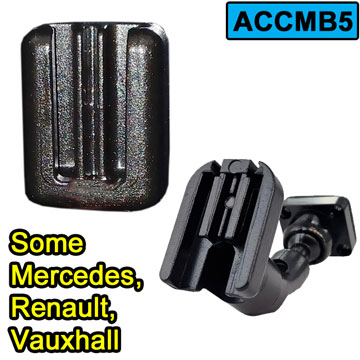

  • Bracket direct to windscreen - ACCMB5 - This option is supplied with a bracket to fit the OEM metal windscreen mirror button/plate that is commonly fitted to the Trafic/Vivaro vans. See the image below to check the fitment info. This option can be selected using the drop-down menu above.
Windscreen mirror mounting option for Renault Trafic and Vauxhall Vivaro vans
  • Bracket direct to windscreen - ACCMB8 - This option is supplied with a bracket to fit the OEM metal windscreen mirror button/plate that is commonly fitted to the Trafic/Vivaro vans. See the image below to check the fitment info. This option can be selected using the drop-down menu above.
Windscreen Swan Neck Stalk Bracket to fit Vauxhall Vivaro and Renault Trafic Vans
Universal windscreen mirror monitor bracket option image

How does the new camera replace the original brake light?

  • Remove the power connector plug to the existing brake light two bolts to the rear of existing brake light
  • Remove the two nuts secured to the bolts at the rear of the original brake light
  • Take the old brake light housing off the door
  • Remove the bulb from the old brake light
  • Insert the old bulb to the new brake light reversing camera housing
  • Position the new reversing camera brake light housing to the door and secure using the original nuts
  • Attach the original brake light power connector plug in to the socket on the new brake light camera
  • Attach the supplied extension lead between the 4 pin plug of the brake light camera and the 4 pin socket of the monitor wiring harness (this will go through the cable protector that goes between the van door and van body - the black plastic corrugated tube).

Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
  • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
Power Supply Options including lighter plug and piggyback fuse taps

Easy-Fit Wiring

  • We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
  • This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
  • It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
  • It keeps contacts clean and dry, plus prevents them from accidental separation.
  • It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
  • All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

Image Sensor for Camera

This particular system uses the PC4089 1/3" Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication.  We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure.  With our camera you can be assured of good performance and long term reliability.

Image sensor key

Monitor has Digital LCD Panel - Not Standard LCD

Our monitor uses a Hi-Res digital panel LCD screen with an 800x480 pixel display.  To complicate matters we have seen a difference in quality between 800x480 pixel panels. We only stock LCD panels that have the brightest backlights, and the best colour replication.  This costs us approx. 50% more than we could buy the monitors for, however, the reliability, picture quality, our reputation in keeping our many return customers happy, means we are willing to pay the extra (you get what you pay for!).


2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.


Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.

FAQ'S

Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".  It is worth noting that the camera faces downwards, so it may not be used as a rear view driving camera.

Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

Yes, absolutely.  You can also choose to hard wire it at a later point.  Some people order the lighter plug option simply to try it out before they wire it in permanently.

Yes it does. The camera outputs its own fixed guidelines (these can be turned off by snipping a small loop of wire that is next to the cameras connector). The monitor can also add guidelines itself, these will only be shown if you connect up the green reverse trigger wire on the monitor wiring. The advantage of using the monitors guideline function instead of the cameras is that you can adjust the position on the monitors guidelines (see the instructions tab for the downloadable PDF on how to do this).

There could be a number of reasons they may be cheaper than us, the most common are below :

  • They may be Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
  • They likely Use Cheaper/Poorer Grade Components - With the cameras, there are different standards of image sensor, support chips, lenses and camera bodies. With the monitors, there are different grades of LCD panels, and main boards. For both camera and monitor, we prioritise quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
  • Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.

In short, trust us to find the best quality and support you for safety and peace of mind.

Detailed Images

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Our guide to the menu system and monitor. Covers the adjustable guidelines that can be added when reverse gear is connected to the green trigger wire on monitor wiring harness.

Rear View Mirror Monitor Instructions

Our extra instructions for the Renault Trafic and Vauxhall Vivaro brake light reversing camera, including guidance on moving the original OEM bulb across to the new camera.

Thumbnail image of fitting instructions for brake light reversing camera for Renault Trafic and Vauxhall Vivaro Vans

Monitor

7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
2x 4 pin Inputs
PAL/NTSC/AUTO

Camera

Sensor: 1/3" PC4089 CMOS
Effective Pixels: 976(H) x 592(V)
TV line: 700 TVL
Lens: 1.9mm
Min illumination: 0.0 LUX (IR LED on)
IR LEDs: 8 pcs
Night vision: 10m
Waterproof: IP68
View angle: V 85 degrees, H 130 degrees D 160 degrees
Camera lens adjustment: 20 degrees up and down
Voltage: 12 volts
Current consumption: 150mA
Operating temperature: -20 to 70 degrees C
Guideline: Optional (some have a trigger wire to select)
Certificates: FCC, CE, E-mark, RoHS
Connector: 4 pin aviation
