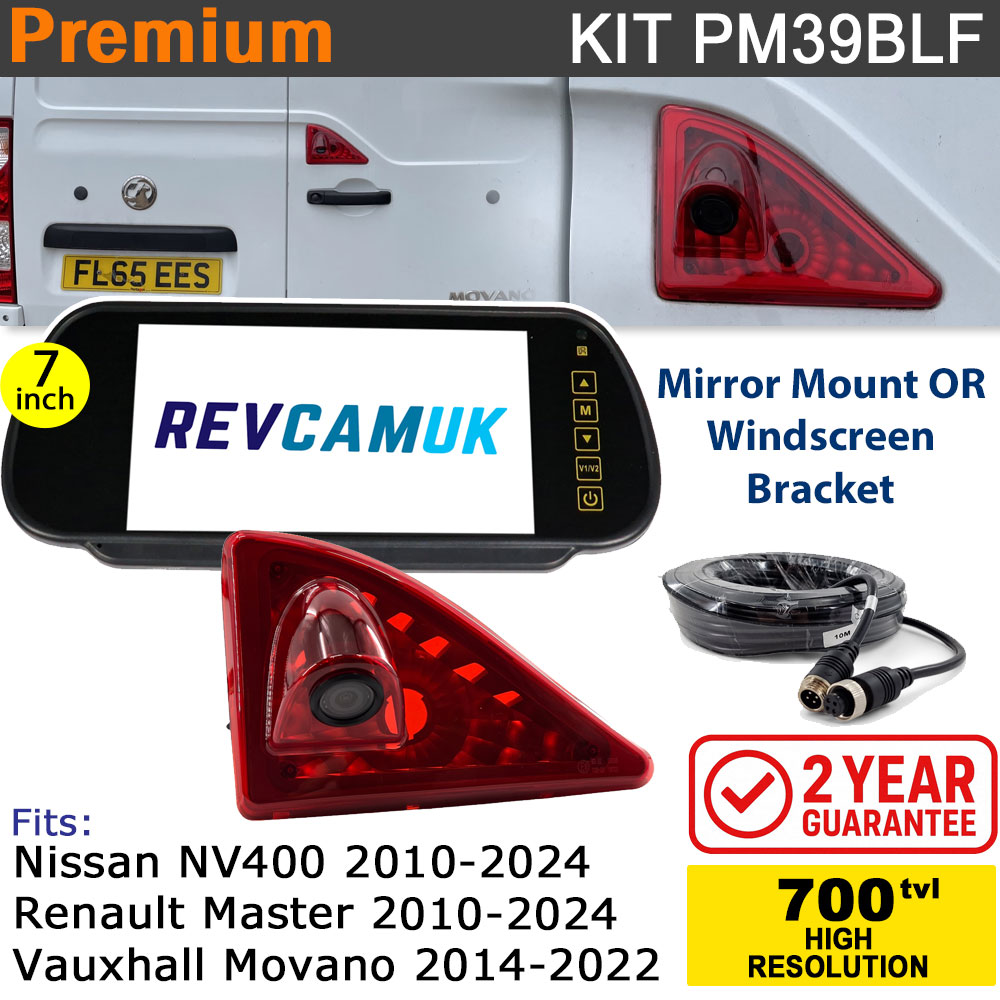

Renault Master / Vauxhall Movano / Nissan NV400 (2010+) Brake Light Reversing Camera kit with 7" Mirror Display - PM39BLF

Price

£190.00

VAT Included £31.67
Availability IN STOCK
Product Code: KIT-PM39BLF
Cable Length
Mirror Mount Option
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 15)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

About the Master/Movano/NV400 brake light reversing camera kit with 7" mirror monitor

Brake light reversing camera kit to fit Renault Master 2010-Present, Nissan NV400 2010-Present, Vauxhall Movano 2010-2022 vans. Comes with our top quality 7" rear view mirror monitor display, optional fitting brackets or clip-over original mirror, two year guarantee, lifetime support, 4089 700tvl image sensor, night vision, factory-fit appearance, quick dispatch, and all the service and support you expect from Reversing Cameras UK Ltd.

  • High Resolution 7" Display - Top quality 7 inch rear view mirror monitor display, with options to either clip over existing mirror, or attach directly to the windscreen fitment (if present), or add a mounting plate with our loctite 319+button fitting kit.
  • Factory Fit Appearance - Exact Fit Replacement Brake Light Camera for 2010+ Renault Master, 2010+ Nissan NV400, and 2010-2022 Vauxhall Movano Vans
  • 2 Year Guarantee - The quality of the system is second to none. We provide a 24 month guarantee period for all the parts that make up this reversing camera kit. Even beyond this time, we are able to provide spares and attempt low cost monitor repairs should something fail in the distant future.
  • Upgraded Image Sensor - The image sensor is one of the most important aspects in achieving good picture quality on a reversing camera. We don't accept the base spec when it comes to our cameras. We opt for improved components that we know work well. This reverse camera is fitted with the 4089 premium 700tvl image sensor. We have used it for many years; it provides great colours, a high resolution, as well as being reliable.
  • All Glass Composite Lens - Often overlooked is the quality of the lens fitted to the camera. This camera is fitted with an all-glass composite lens, giving an excellent image for many years. We steer clear of the cheaper standard plastic+glass lenses, which fade over time due to UV damaging the plastic layers. There is no problem with this camera and the all-glass construction lens.
  • Night Vision IR LED's - When night time comes you will still benefit from this camera due to the ring of fitted IR LED's. The combination of the IR LED's and the sensitive modern 4089 image sensor means that you will still see any obstacles even at night. Don't worry about these shining at anyone following you; the light is visible to the camera but invisible to the human eye.
  • Guidelines ON/OFF - As standard the brake light camera will come with static guidelines being added. There will be a trigger loop that allows you to remove these should you not wish to use them. The Monitor also allows you to use its guidelines (if connecting the green reverse trigger wire to reverse gear). The monitor guidelines have the added bonus of allowing you to adjust where they sit on the screen to make them more useful.
  • Easy to fit - Simply remove your old brake light housing (one bolt at the rear), then pop the brake light housing from the kit in its place, move the bulb from the old housing to the new housing, and that's the camera installed.

What vehicle does this fit?

Renault Master 2010-Present

Nissan NV400 2010-Present

Vauxhall Movano 2010-2022


Choice of kit power options

  • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
  • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
  • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
  • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
  • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
Power Supply Options including lighter plug and piggyback fuse taps

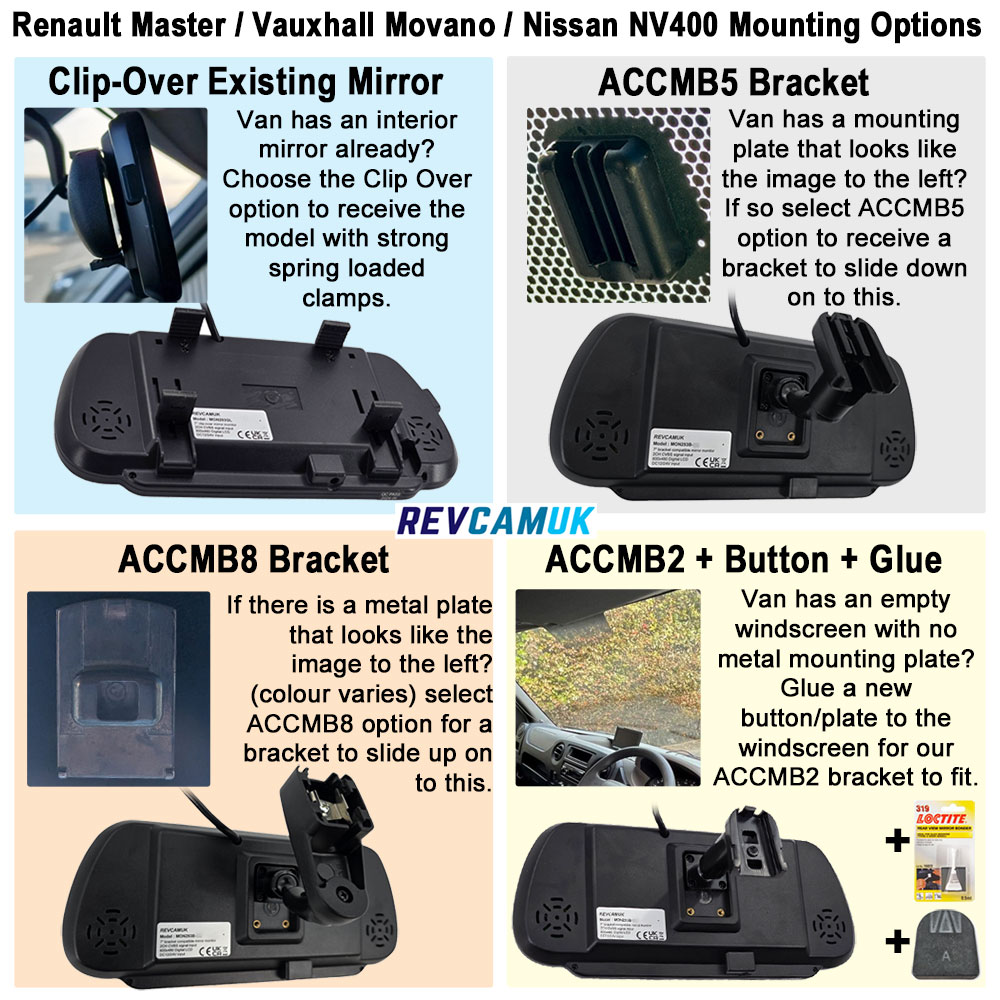

Mirror Monitor Mounting Options

We stock a number of different mounting options for the mirror monitor, depending on what you currently have fitted to your van. Please check the options below, and select the one that you require from the drop down menu above.


Clip over original mirror Mounting

This type of mirror monitor has spring loaded clips on the rear, instead of 4 screw holes for our swan neck brackets to fit. Ideal if you have a van with an interior mirror already fitted.

Standard Clip-over Mirror Monitor Option

ACCMB5 (Fit to existing mounting plate on windscreen)

This rear view mirror mounting bracket has been used on some of the Renault Master, Nissan NV400, and Vauxhall Movano vans. It is very distinctive with the 2 vertical running lines. See below image.

Optional Mirror Mounting Bracket to suit Renault Master Nissan NV400


ACCMB8 (Fit to existing mounting plate on windscreen)

This rear view mirror mounting bracket has been used on a lot of the Renault Master, Nissan NV400, and Vauxhall Movano vans. It projects out, see below image. The metal mount is often seen in either black or silver finish, the bracket fits both.

Renault Master Vauxhall Movano Nissan NV400 Rear View Mirror Monitor Bracket Option

ACCMB2 + Button + Glue (add a button)

If you have any vehicle which is missing a windscreen button then you can order this bracket kit, it comes with Loctite 319 rear view mirror bonder, this was recommended to us by a fitter who installs lots of these.

Mirror Mounting Option for Attaching to Windscreens with no mounting plate present

Easy-Fit Wiring

  • We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
  • This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
  • It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
  • It keeps contacts clean and dry, plus prevents them from accidental separation.
  • It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
  • All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

Image Sensor for Camera

This particular system uses a premium CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication. With our camera you can be assured of good performance and long term reliability.

Image sensor key

Monitor has Digital LCD Panel - Not Standard LCD

Our monitor uses a Hi-Res digital panel LCD screen with an 800x480 pixel display.  To complicate matters we have seen a difference in quality between 800x480 pixel panels. We only stock LCD panels that have the brightest backlights, and the best colour replication.  This costs us approx. 50% more than we could buy the monitors for, however, the reliability, picture quality, our reputation in keeping our many return customers happy, means we are willing to pay the extra (you get what you pay for!).


2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.


Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.

FAQ'S

Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on".  It is worth noting that the camera faces downwards, so it may not be used as a rear view driving camera.

Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

Yes, absolutely.  You can also choose to hard wire it at a later point.  Some people order the lighter plug option simply to try it out before they wire it in permanently.

Yes it does. The camera outputs its own fixed guidelines (these can be turned off by snipping a small loop of wire that is next to the cameras connector). The monitor can also add guidelines itself, these will only be shown if you connect up the green reverse trigger wire on the monitor wiring. The advantage of using the monitors guideline function instead of the cameras is that you can adjust the position on the monitors guidelines (see the instructions tab for the downloadable PDF on how to do this).

There could be a number of reasons they may be cheaper than us, the most common are below :

  • They may be Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
  • They likely Use Cheaper/Poorer Grade Components - With the cameras, there are different standards of image sensor, support chips, lenses and camera bodies. With the monitors, there are different grades of LCD panels, and main boards. For both camera and monitor, we prioritise quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
  • Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.

In short, trust us to find the best quality and support you for safety and peace of mind.

Detailed Images

Our general 4 pin cable based fitting instructions.

4 pin reversing camera kit fitting instructions

Our guide to the menu system and monitor. Covers the adjustable guidelines that can be added when reverse gear is connected to the green trigger wire on monitor wiring harness.

Rear View Mirror Monitor Instructions

Monitor

7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
2x 4 pin Inputs
PAL/NTSC/AUTO

Camera

Image Sensor : 1/3" colour Super CMOS
Effective Pixels : 976(H) x 592(V)
Resolution : 700TVL
IR LED : 8pcs
Minimum illuminations : 0.1 Lux (with IR)
Lens Angle : 160 degrees
Waterproof : IP68
AGC : Auto
Signal to noise ratio : Better than 48dB
White balance : Auto
Electronic Shutter : Auto
Backlight compensation : Auto
Power Supply : DC12V
Operating Temperature : -20C to 70C RH95% MAX
Storage Temperature : -40C to 80C RH95% MAX
