5" Dash Monitor + Sony CCD White Twin Lens Bracket Reversing & Rearview Camera Kit - PM53W

Introducing the 5 inch monitor + white reversing + driving  rear view twin camera kit

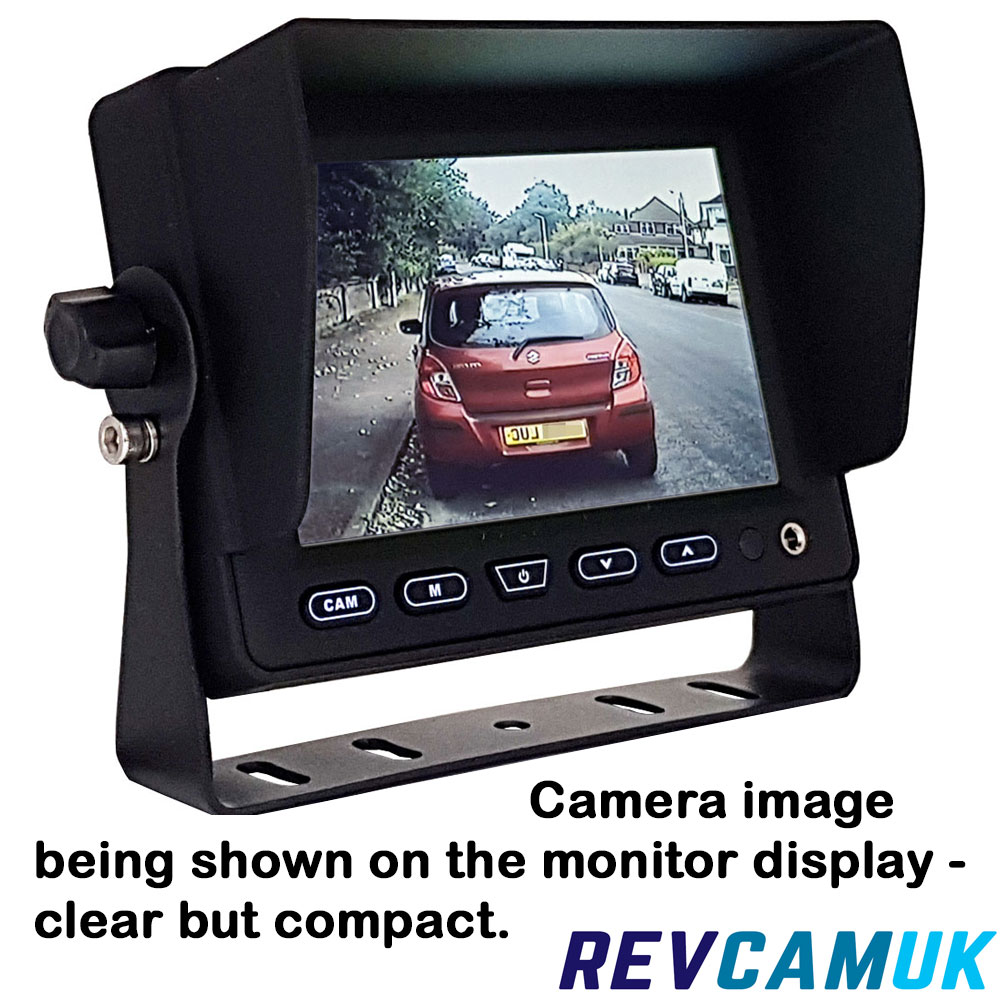

• Comes with a 5 inch high resolution digital panel heavy duty monitor.
• Comes with one of our popular high spec twin cameras, that is fitted with two high performance Sony 1/3" CCD 700TVL image sensors. One with an 8mm lens to provide approx 45 degree narrow angle for driving/rear view, and one with a 2.8mm lens to provide approx 120 degree wide angle for reversing.
• The camera bracket is made from painted stainless steel, which avoids the rusting you will see on mild steel brackets that are commonly sold elsewhere.
• This kit comes with a 2 year guarantee from us - REVCAMUK. Our reputation on forums and groups will show how trusted we are to look after our customers.
• The parts that make up this kit are all sourced from the best factories that we have found across our many years of experience. We don't source the cheapest parts, we source based on reliability and quality.
• This kit can be used with both 12V and 24V vehicles. The voltage to the reverse camera is regulated by the monitor.
• Our extension cables are high quality, with the inner cores consisting of pure copper.

Disconnectable Connectors on Camera Entry for Smaller Cable Entry Holes

We took the step of adding 8mm disconnect points between the 4 pin connectors and the camera. This allows you to drill smaller cable entry holes instead of the 19mm you would need if using the pre-attached cable rubber Grommet (we still have these grommets inserted for those who prefer to use this method).

Please note that the 8mm disconnect point is NOT waterproof and needs to be kept inside to avoid water ingress. It is approximately 30 cm back from the camera. If you cannot ensure the cable will enter the vehicle by this length, please leave us a customer note asking for the non-8mm version (which goes straight to 4 pin and is very waterproof). The customer note box is at the very last stage of checkout.

Add an additional monitor bracket/mount

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

See our video below for details about the brackets in the photo above.

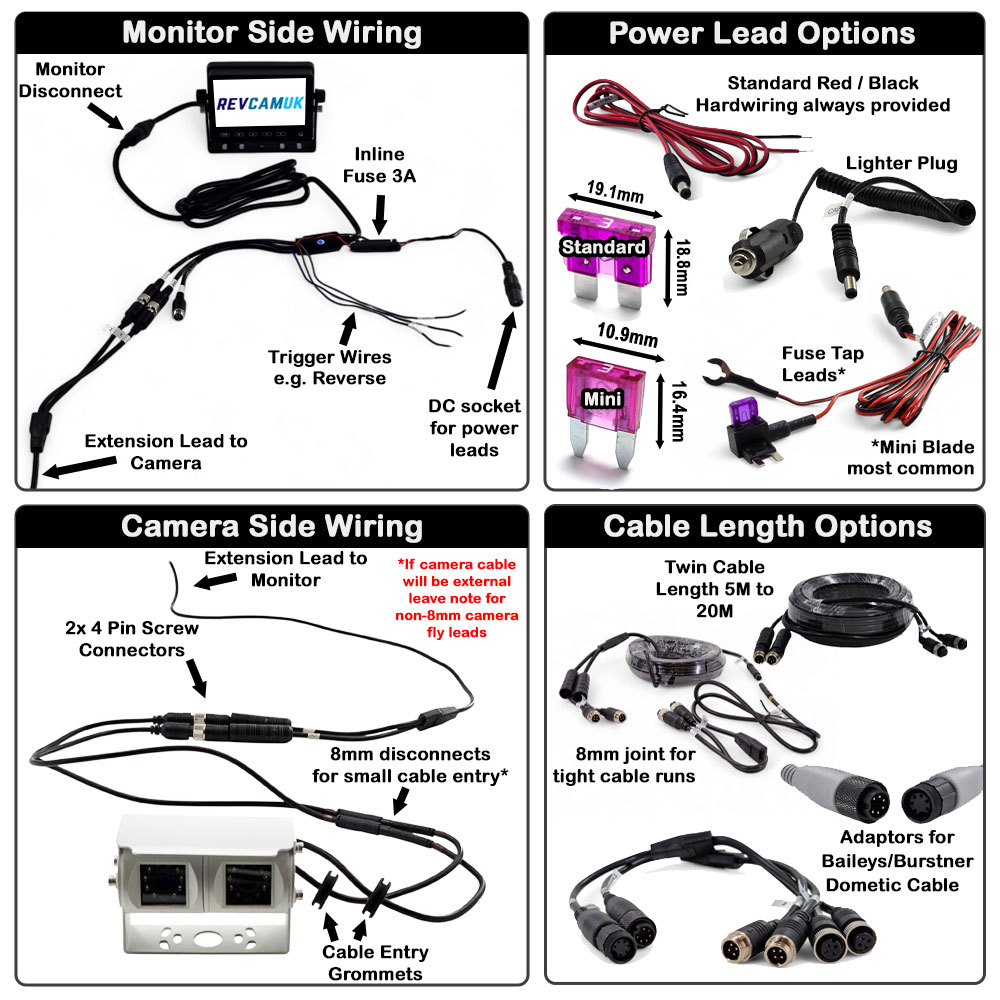

Choice of kit power options

• On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
• The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
• For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
• Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
• Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).

Easy-Fit Wiring

• We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
• This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
• It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
• It keeps contacts clean and dry, plus prevents them from accidental separation.
• It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
• All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

Anti-Corrosion Stainless Steel Camera Bracket

The camera has a stainless steel bracket, which is shown to last a very long time without corrosion unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months.

2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.

Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.
