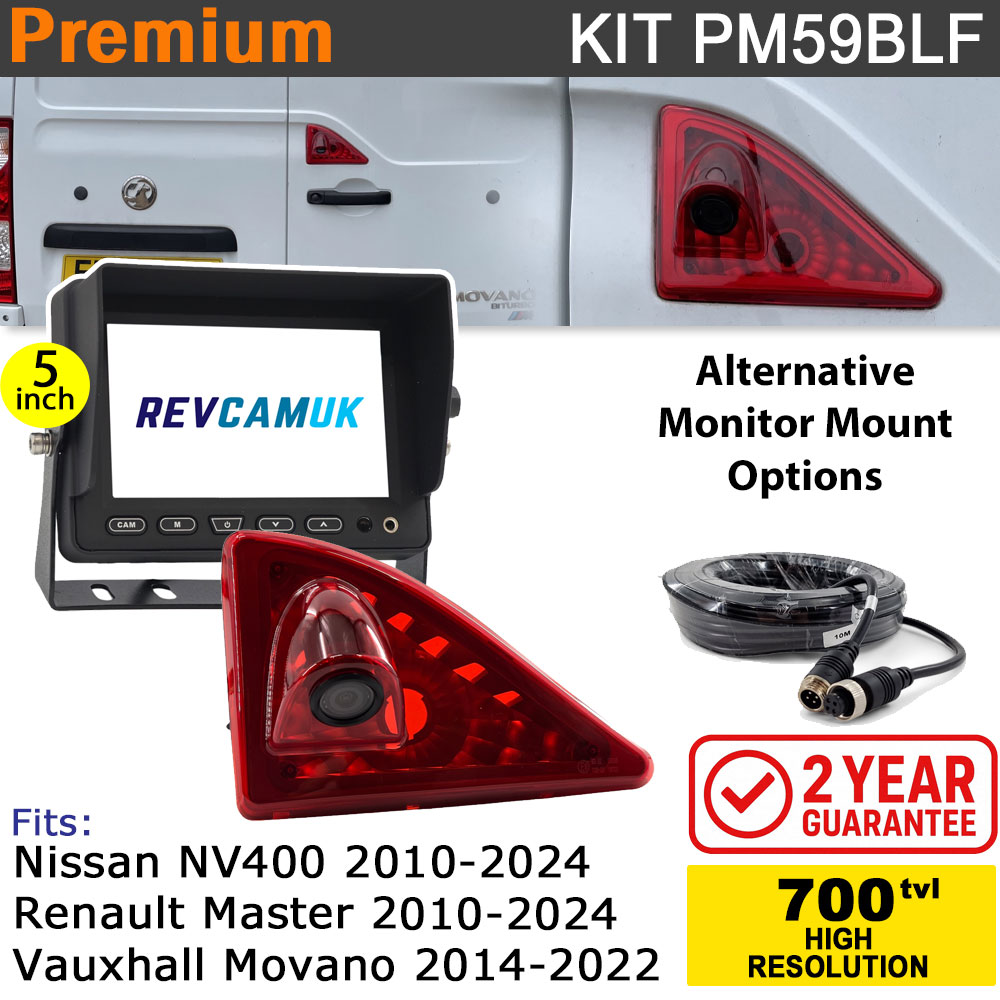

Master/Movano/NV400 (2010+) Brake Light Reversing Camera kit with 5" Monitor Display - PM59BLF
Category: Van Reverse Camera Kits
Description
About the Master/Movano/NV400 brake light reversing camera kit with 5" displayBrake light reversing cameras have quickly become the most popular type of reversing camera system for vans. This particular camera kit is supplied with a 5 inch high resolution dash monitor, this is supplied with a U bracket mount as standard but a variety of other brackets can be selected here. Fitting camera is a case of simply remove your old brake light housing (one bolt at the rear), then install the new brake light housing from the kit in its place, next move the bulb from the old housing to the new housing, and that's the camera installed. What vehicle does this fit?Renault Master 2010-Present Vauxhall Movano 2010-2022 Nissan NV400 2010-Present Add an additional monitor bracket/mountWe can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit. Please see the photo below, and make your selection using the drop down menu above the add to cart button.  See our video below for details about the brackets in the photo above. Choice of kit power options
 Easy-Fit Wiring
 Image Sensor for CameraThis particular system uses the 700TVL new generation CMOS sensor, which is right on the upper scale of picture quality.  Monitor has Digital LCD Panel - Not Standard LCDThe monitor uses a Hi-Res digital panel screen with more than 3 times the amount of pixels of the standard analogue LCD screens most other retailers sell. (Please note some sellers multiply the first number by 3 for RGB, if we were to do that it sounds even more impressive (2400x480). We prefer to keep it simple but check carefully our competitors, the last number is normally better to go by as this is the number of vertical lines of pixels.  2 Year GuaranteeWe supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty. Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.  Parts Tested in the UKThe parts of this kit will have been tested twice, once by the factory and once by us. We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part. Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past. This is why professional fitters love us.  |
FAQ'S
Yes you can, the monitor powers the camera, this means you can choose to watch the camera at any point, you can drive with it "always on". However, most of our single brake light reversing cameras have limited adjustability - so you might only be seeing the ground near the bumper whilst driving (not traffic).
Our easy wire fuse tap options are new for 2023. We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses. The other side has a "piggyback" fuse holder aka fuse tap. You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download). The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit. On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).
 |  |
Rough guide:
- 7.5M is good for shorter wheelbase vans
- 10M is good for a medium to long wheelbase vans (around 6M)
- 12.5M is good for most vans up to around 8.5M long
- 15M is good for even the longest vans on the market
There could be a number of reasons they may be cheaper than us, the most common are below :
- They may be Rejected Production Runs - This is more common on the marketplaces where there are a lot of non-UK businesses (although the stock is often in the UK). When one of the larger factories produces a camera they will age-test a batch to ensure that the quality is sufficiently high to be able to send to their big customers (like us). If a production run fails this test with a high enough number having issues, the whole batch is often sold off for "recycling" the components. Sadly, these get placed in a container setting sail to the UK and other destinations, and eventually listed on a marketplace at crazy low prices - lower than we can buy hundreds at a time for. Sometimes you are lucky, sometimes you are not, depending on how badly the batch failed.
- They likely Use Cheaper/Poorer Grade Components - With the cameras, there are different standards of image sensor, support chips, lenses and camera bodies. With the monitors, there are different grades of LCD panels, and main boards. For both camera and monitor, we prioritise quality; the results speak for themselves. We didn't earn our reputation by buying as cheap as we could; it's not what our customers want. Although at the same time we really do keep our prices as low as possible. The cheaper prices help us to sell more volume, which means we can bring the cameras in by ocean shipping, saving freight costs, which we pass to the consumer.
- Produced by a "Factory for the day" - We have seen some shocking quality cameras sent to us over the years by customers. There is a phenomenon in China where someone can rent factory space for a day or two in order to complete a production run. Often this is a factory employee that is trying to go it alone and start his own business. Sadly, they don't often have the best engineers, they usually buy the lowest price/quality components, have the lowest standard of production line worker, and they can't afford to reject a bad production run. These usually either end up on a Marketplace or sold directly from a Chinese website.
In short, trust us to find the best quality and support you for safety and peace of mind.
Yes, as standard the reversing camera is set to display static coloured guidelines on to the image produced. These can be removed if you prefer. Simply cut the small trigger loop close to the brake light camera connection. See sticker on box for more details as some models have more than one function loop available.
Detailed Images
Thanks Shane for your picture of the brake light camera fitted to your van
Thanks Shane for your picture showing the field of view from the brake light camera. Being low down and off centre has a bit of impact for the passenger side visibility
Monitor Dimensions
Wiring Layout (monitor side)
Our general 4 pin cable reversing camera kit based fitting instructions.
Our compact-sized heavy-duty monitor display. Guide to fitting and the on-screen menu.
Monitor5” Colour LCD screen CameraImage Sensor : 1/3" colour Super CMOS |
