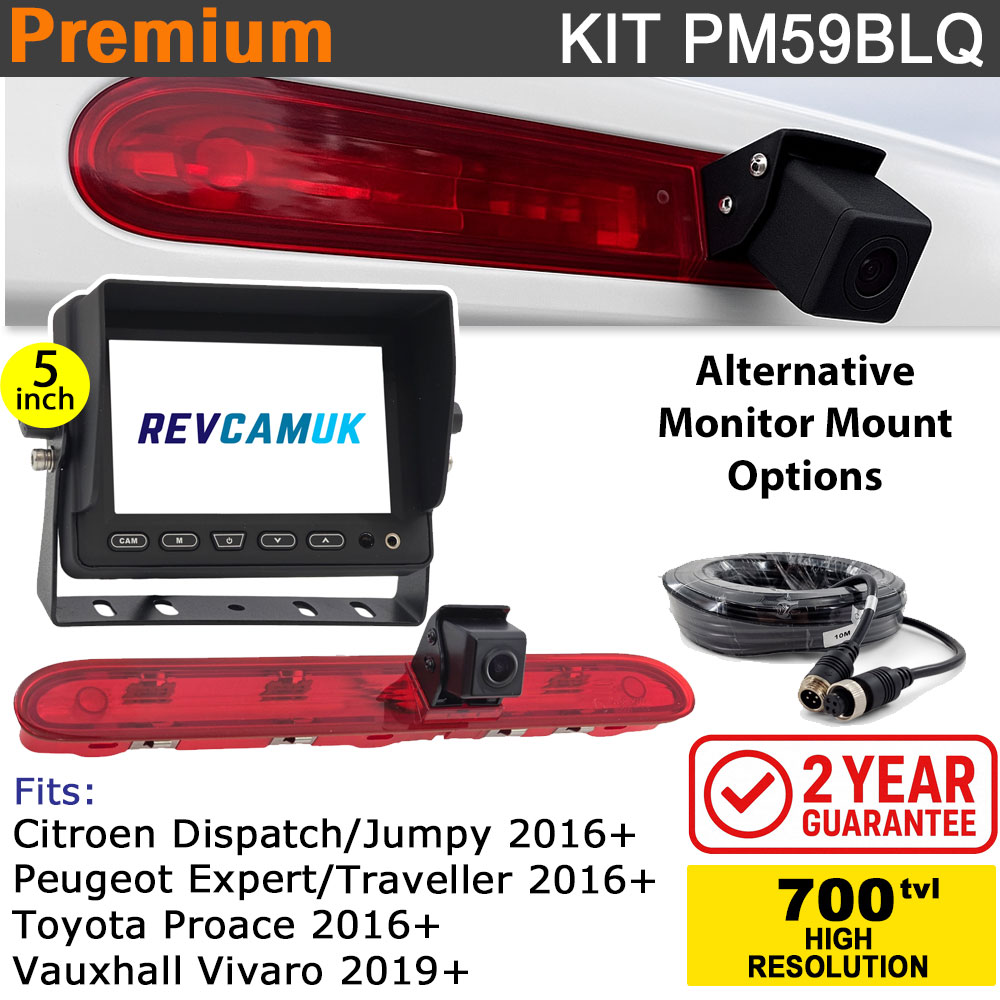

Peugeot Expert / Traveller / Vauxhall Vivaro / Toyota Proace (2016*+) Brake Light Reversing Camera kit with 5" Monitor Display - PM59BLQ

About the Expert / Traveller / Vivaro / ProAce brake light reversing camera kit with 5" display

High quality reversing camera kit to fit the Peugeot Expert / Traveller vans built from 2016, as well as Vauxhall Vivaro C models built after 2019, and Toyota ProAce vans built after 2016. 700tvl high resolution image sensor, great colourful image, two year guarantee. Accepts the original OEM light strip.

• Great Camera Image Quality - We don't settle for the base image sensor when it comes to our cameras. We have had the PC4089 700tvl image sensor installed combined with our all-glass composite lens to ensure a crystal clear, colourful image for many years to come.
• High Resolution Digital Display Monitor - The monitor comes from one of our long term tried-and-tested reliable factories. We have it fitted with a good quality 800x480 digital high resolution LCD panel, which is essential for showing the cameras image of to its best potential.
• Two Year Guarantee - Our brake light factory is one of the best around, with a great reputation for longevity with their cameras. They fully support our two year guarantee on the brake light cameras, which we pass on to you. The cabling and monitor is also covered by the two year guarantee.
• Great OEM Appearance - This brake light camera retains the factory look of the vehicle, whilst adding an additional layer of safety.
• IP69K Waterproof Protection - The maximum ingress protection / waterproof rating you can get. Be assured that this camera will not suffer from being exposed to the Great British weather at its wettest.
• Extra Wide Field Of View - Very wide 170 degrees field of view to give you the maximum visibility to the rear of your van.
• Increased Safety - This camera will help to increase the safety of your vehicle, by giving you greater visibility in a traditionally poor visibility area. Nearly 25% of all vehicle accidents in the UK occur whilst reversing, don't be another statistic and protect yourself and others today with this top spec product.
• No CANBUS Issues - Thanks to the reusing of your OEM light strip (very easy - see instructions tab) and the monitor powering the reverse camera, you won't experience any issues of CANBUS cutting power to the rear light/camera.
• 1st Class Service and Support - We pride ourselves on going above and beyond with service. Expect fast delivery and great support when you purchase with us.

What vehicle does this fit?

Peugeot Expert 2016-Present

Peugeot Traveller 2019-Present

Vauxhall Vivaro 2019-Present

Toyota Proace 2016-Present

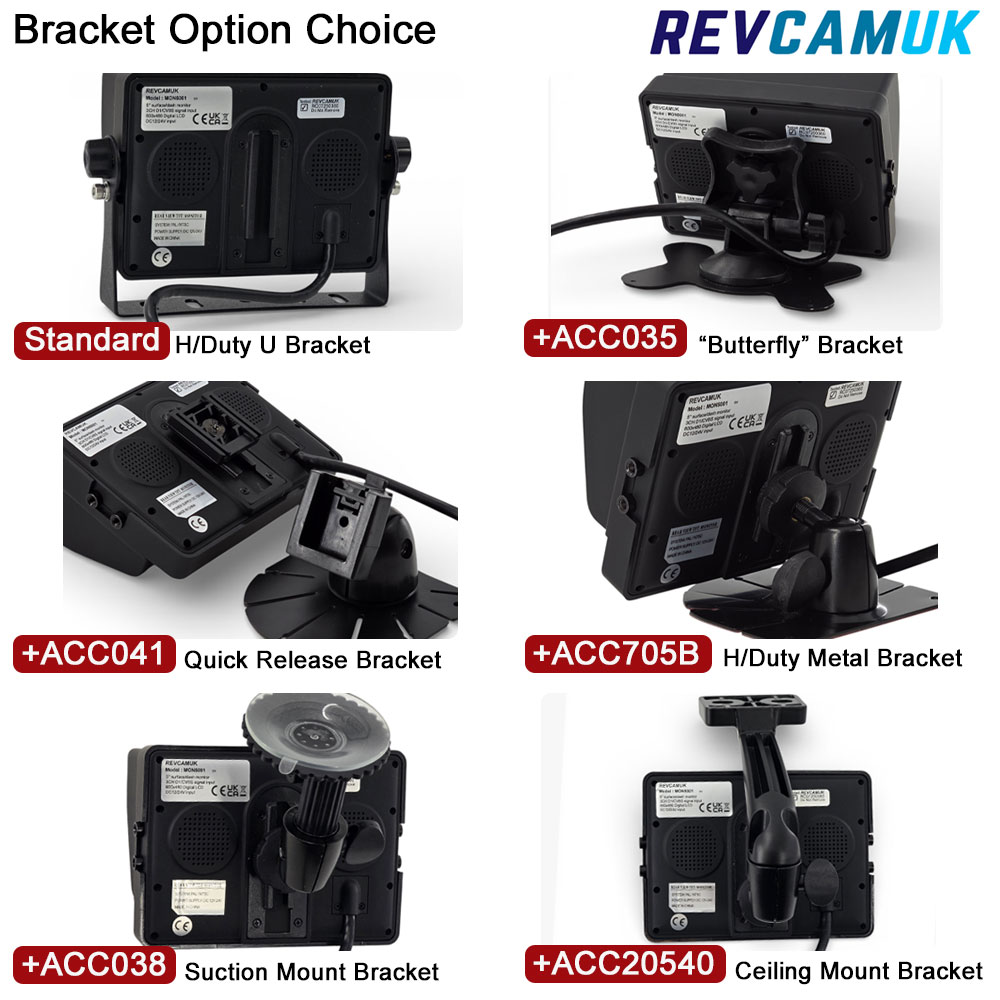

Add an additional monitor bracket/mount

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

See our video below for details about the brackets in the photo above.

Choice of kit power options

• On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
• The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
• For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
• Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
• Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).

Easy-Fit Wiring

• We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
• This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
• It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
• It keeps contacts clean and dry, plus prevents them from accidental separation.
• It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
• All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

Image Sensor for Camera

This particular system uses the PC4089 1/3" Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication.  We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure.  With our camera you can be assured of good performance and long term reliability.

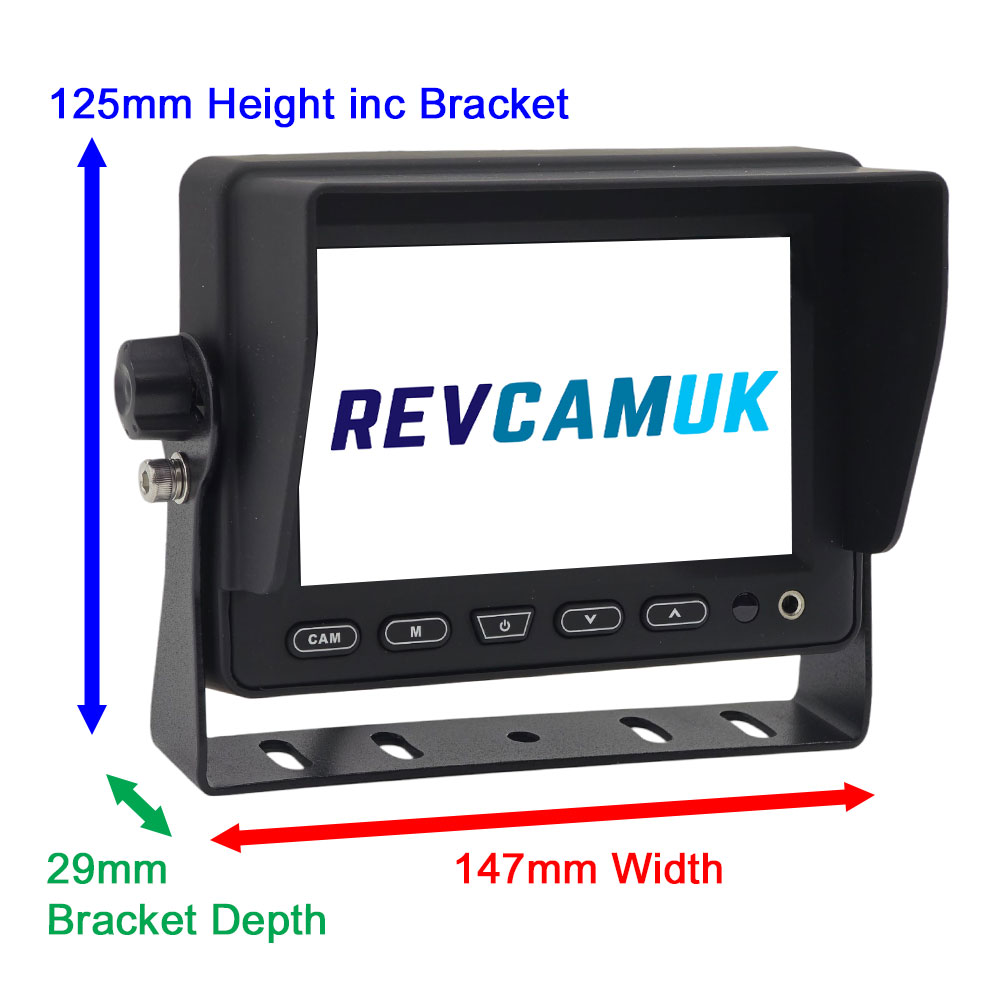

Monitor has Digital LCD Panel - Not Standard LCD

Our monitor uses a Hi-Res digital panel LCD screen with an 800x480 pixel display.  To complicate matters we have seen a difference in quality between 800x480 pixel panels. We only stock LCD panels that have the brightest backlights, and the best colour replication.  This costs us approx. 50% more than we could buy the monitors for, however, the reliability, picture quality, our reputation in keeping our many return customers happy, means we are willing to pay the extra (you get what you pay for!).

2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.

Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.
