7" Dash Monitor + Sony CCD (or optional Sony AHD) White Twin Lens Bracket Reversing & Rearview Camera Kit - PM63W

Price

£245.00

VAT Included £40.83
Availability IN STOCK
Product Code: KIT-PM63W
CCD or AHD (see description)
Length of cable
Add extra monitor bracket?
Add a lighter plug?
Add a fuse tap?
Quantity
(from 1 to 20)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

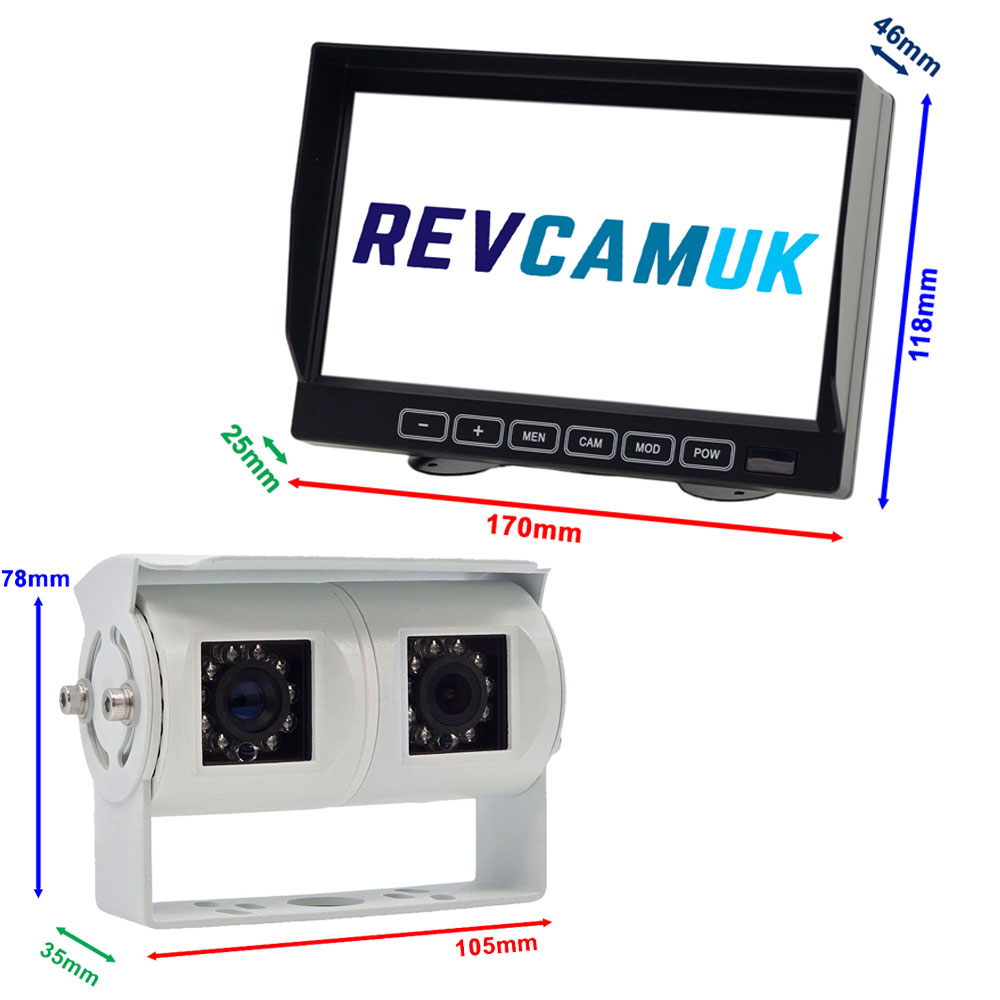

About the 7 inch dash monitor and white twin lens bracket reversing camera kit

  • This reversing camera kit comes with surface mounted monitor display, fitted with a 7" LCD panel. This monitor comes with a dashboard mounting bracket, but also fits other mounting brackets.
  • Comes with a twin lens bracket camera, which houses both a 120° reversing camera for parking, and a 45°rear view camera for driving.
  • Choice of two top specification image sensors - either Sony CCD or Sony 1080P AHD (see more about the upgrade option further down).
  • The camera is fitted with a stainless steel bracket, which has proven itself to protect against rust.
  • Easy to install, with a range of power options. Just one power connection powers the system.
  • 2 Year Guarantee and Lifetime Support from the leading UK specialists.

Upgrade Option - Sony CCD vs Sony AHD 1080P

  • Recent option, introduced in early 2022
  • AHD stands for Analogue High Definition - allows long analogue coax cables to be used to transmit high definition digital signal
  • Increases monitor display resolution by 60% with an IPS panel upgrade
  • Both cameras use an improved Sony 1080P AHD image sensor
  • You will experience improved dynamic range, more vivid colours, and superior low light level performance
  • Please note that AHD systems take a little longer to change channels/load up (approx. 2 seconds) vs standard CVBS systems.

Rest assured that whichever option you select, you will have a lovely, good quality image!

See our AHD (Analogue High Definition) FAQ page for more info

Please take note of an important update for 2024. Our latest production of AHD option cameras includes a change – specifically, the driving rear-view camera in the recent batch is now being manufactured without IR LEDs, while the parking camera will continue to have IR LEDs. This modification is a response to customer feedback regarding the sensitivity of the Sony Starvis sensors used in the AHD cameras. Some customers found that the camera's enhanced brightness as the IR lit up nearby trees and bushes, made the image a bit bright when driving at night in a dark cabin. Following road tests, we concluded that eliminating IR LEDs from the rear-facing camera provides a better balance of functionality. When ordering the AHD upgrade kit, you may receive either the original type (with IR LEDs) or the new batch (without IR LEDs) on the rear-view camera. If you have a preference for a specific version, please leave us a customer note when placing your order.


    Disconnectable Connectors on Camera Entry for Smaller Cable Entry Holes

    We took the step of adding 8mm disconnect points between the 4 pin connectors and the camera. This allows you to drill smaller cable entry holes instead of the 19mm you would need if using the pre-attached cable rubber Grommet (we still have these grommets inserted for those who prefer to use this method).

    Disconnect points for twin lens camera

    Please note that the 8mm disconnect point is NOT waterproof and needs to be kept inside to avoid water ingress. It is approximately 30 cm back from the camera. If you cannot ensure the cable will enter the vehicle by this length, please leave us a customer note asking for the non-8mm version (which goes straight to 4 pin and is very waterproof). The customer note box is at the very last stage of checkout.

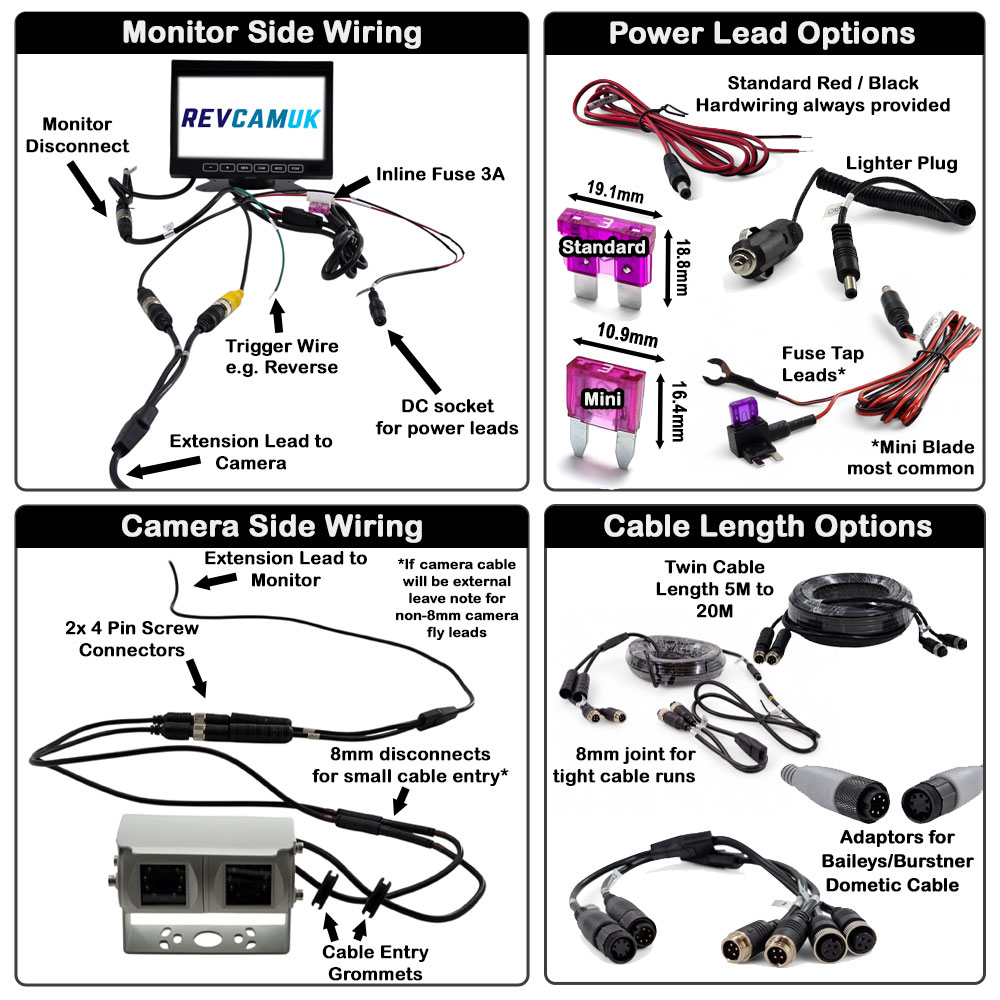

      Choice of kit power options

      • On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
      • The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
      • For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
      • Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
      • Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).
      Power Supply Options including lighter plug and piggyback fuse taps

      Additional monitor bracket/mount options

      We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

      See our video below for details about the brackets in the photo above.


      Easy-Fit Wiring

      • We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
      • This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
      • It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
      • It keeps contacts clean and dry, plus prevents them from accidental separation.
      • It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
      • All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.
      • New for 2024 is our updated twin signal cable rated for HD camera signal.

      Anti-Corrosion Stainless Steel Camera Bracket

      The camera has a stainless steel bracket, which is shown to last a very long time without corrosion unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months.

      stainless steel bracket for reversing camera

      2 Year Guarantee

      We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.


      Parts Tested in the UK

      The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.


      Optional Guidelines displayed when reverse selected

      If you want to see the guidelines you can turn these on and off in the menu, the guidelines will only work on the reversing channel and when the trigger wire for this channel is active, they won't bother you when driving forward and wanting to view the camera on all the time.

      FAQ'S

      Yes you can. This kit has two cameras built in to one bracket. The one camera looks back down the road as your driving camera (acts as a rear view mirror). The other camera points downwards to the ground, you will select this camera when you are reversing/parking.

      Absolutely.  This camera can be mounted both on a vertical surface eg rear wall/door, or on a horizontal surface eg roof/top of door.

      Our easy wire fuse tap options are new for 2023.  We designed a fuse tap that plugs in to a socket that is present on all of our monitor wiring harnesses.  The other side has a "piggyback" fuse holder aka fuse tap.  You identify a fuse in the fuse box that comes on/off with the ignition (see piggyback fuse holder / fuse tap instructions here - PDF download).  The original fuse is placed in to the new fuse tap, plus there is a new fuse already present for the reverse camera kit.  On the same wiring there is an earth terminal connector, simply attach this to a chassis bolt (usually near the fuse box, or add your own).

      Rough guide:

      • 5M is good for a small van
      • 10M is good for a medium length van (around 6M)
      • 10M 8mm joint (same as above but with a small 8mm disconnect point on the front of the cable to allow cable to get through tight spots/bulkheads)
      • 12.5M is good for most vehicles up to around 8.5M long (covers most motorhomes except the super long)
      • 12.5M 8mm joint (same as above but with a small 8mm disconnect point on the front of the cable to allow cable to get through tight spots/bulkheads)
      • 15M is good for vehicles up to around 10/11M eg rigid lorry, small coach.
      • 15M 8mm joint (same as above but with a small 8mm disconnect point on the front of the cable to allow cable to get through tight spots/bulkheads)
      • 20M is good for super long vehicles
      Twin reversing camera cable 8mm disconnect point

      Yes.  Please select the option at the bottom of the cable length drop down menu.  It will be labelled 2010+ Dometic/Waeco adaptors.  Instead of a long cable, you will receive the twin channel Waeco/Dometic adaptor set. Kindly note that these adaptors will not work with the AHD upgrade option - due to the extra separated shielding requirements required for the two high-frequency 1080P AHD signals.

      The standard high resolution camera/monitor is a very nice picture, it gives you everything you need for visibility. The only reason to upgrade to AHD is if you want to see even more detail such as the detail of gravel on the floor, or want the colours of cars etc to "pop" on the screen and be even more vivid. In terms of safety, both are on par with each other.

      There are 3 ways you can change channel between the two inputs.

      1. Press the CAM button on the monitor
      2. Press the Channel button on the remote control
      3. Attach the green trigger wire on the monitor cabling to either a reverse wire or switch (when this has power it will switch to channel 2).
      Detailed Images
      Video

      PM63 AHD upgrade option video.

      A video to show our twin camera with the 7 inch stand on dash monitor. Both options, Sony CCD vs Sony AHD image sensor.

      Our general 4 pin cable based fitting instructions.

      4 pin reversing camera kit fitting instructions

      Instructions for our MON16 dash monitor, supplied with the Sony CCD option.


      Covers the operation of the AHD version of our 7 inch stand on dash monitor

      MON16AHD AHD reversing camera monitor instructions

      Covers the fixing of our twin lens reversing camera to the vehicle

      Standard Kit Sony CCD 700TVL Tech Specs

      Monitor

      7” Colour LCD screen
      Audio Output: 0.5W
      Loudspeaker: one 15x40mm round loudspeaker
      Power supply: 12V/24V
      Power Consumption: 4W Max
      Digital Screen Resolution: 800 x3(RGB)x480
      Contrast: 500:1
      Brightness: 400cd/m2
      Viewing Angle: U: 50 degrees/ D: 60 degrees, R/L: 70 degrees
      Operating Temperature: -10C to +65C
      Storage Temperature: -30C to +80C RH90%
      2 Inputs
      PAL/NTSC/AUTO
      Mirror/Normal Switch on both channels
      Full function Remote Control

      Camera

      Image Sensor :1/3 SONY CCD 960H 700TVL
      TV System: PAL
      Effective Pixels: 976*582
      Minimum Illuminstion: 0.01 LUX
      S/N Ratio: ≥48dB(AGC OFF)
      Horizontal Resolution: 700 TV lines
      Video Output:1.0vp-p,75Ohm
      Backlight compensation: Auto
      Vibration Rate: 4G
      Built-in Lens: 3.6mm / 8.0mm
      Lens Angle: 120° (D) / 85°(H)
      Working Temperature: -20℃ to 80℃ RH95% Max
      Storage Temperature: -30℃ to 85℃ RH95% Max
      Waterproof to Ip68
      18 Infra red LEDs to provide night view (approx 5-10M effective range)
      Mirror image
      Stainless Steel Bracket (painted)

      Upgrade Kit Sony AHD 1080P Tech Specs

      Monitor

      7” Diagonally Measured Colour IPS screen
      Power supply: 12V/24V
      Power Consumption: 7.5W Max
      Audio Output: 0.5W
      Loudspeaker: one 15x40mm round loudspeaker
      Digital Screen Resolution: 1024 x3(RGB)x600
      2 Hybrid Inputs
      PAL/NTSC/AUTO
      Full function Remote Control

      Camera

      Image sensor and chips: FH8550M+C2398
      Resolution: 1920*1080P (2 million pixels)
      Night Vision: Yes
      Wide Dynamic: Support (mobile frame rate 100DB)
      SNR: >52DB (AGC OFF)
      System: PAL
      Image: Mirror image
      Waterproof Level: IP68
      Shockproof Level: 4G
      Connectors: 4 Pin aviation
      Power Supply: 12V (our monitors supply 12V to the camera regardless of their input voltage)
      Power Consumption: Approx 1.8W per camera
      Video Output: 1080P
      Working Temperature: -20°C to +70°C
      Storage Temperature: -30°C to 85°C
      Stainless Steel Bracket (painted)
      Built-in Lens: 3.6mm / 8.0mm
