Fiat Ducato / Citroen Relay / Peugeot Boxer / Vauxhall Movano Brake Light Reversing Camera kit with 7" Monitor Display - PM69BLB

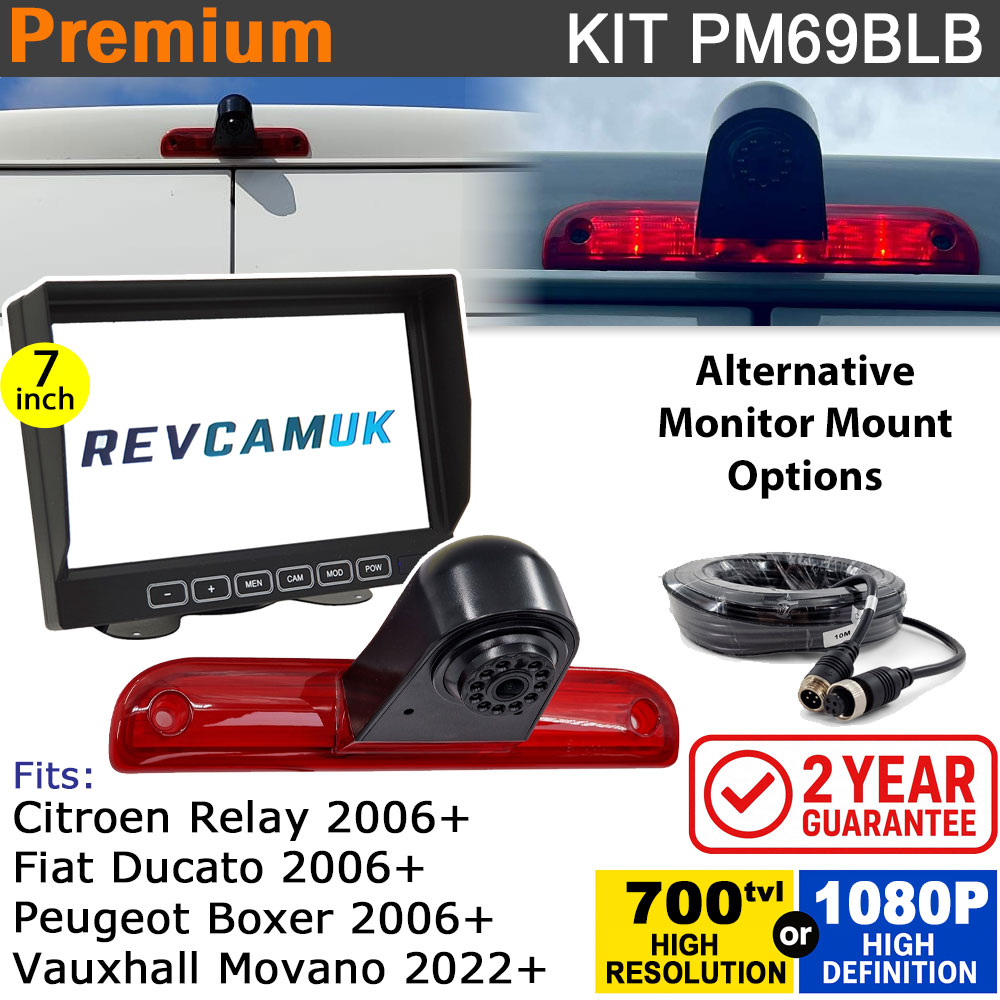

Introducing the Fiat Ducato, Peugeot Boxer, Citroen Relay, Later Vauxhall Movano brake light reverse camera kit with 7" monitor

• This brake light reversing camera supplied in this kit is the most popular type of reverse camera for Fiat Ducato, Peugeot Boxer, Citroen Relay vans built between 2006-present, and more recently 2022+ new model Movano vans.
• Simply remove the existing brake light by pressing down the 3 tabs (top and bottom) with a small flat head screw driver to release the light strip.  Then insert in to the new brake light housing supplied in this kit with the built in reverse camera.
• The 7" display used in this kit is one of the best we have ever seen, it comes from a very reliable and good quality factory - not to be confused with other similar cheap and cheerful monitors sold elsewhere.
• Either use the static guidelines that the brake light reversing camera generates, or turn these off, and use the programmable guideline function of this top of the range monitor (requires connection to reverse light).
• The monitor has a green reverse trigger wire, if you attach this to a reverse light feed, then the monitor/camera will trigger ON/OFF with reverse gear.
• The monitor provides power to the camera, so just one power feed is required to produce a picture.  This also means that you can turn the camera on at any time you wish, including full time.  Please note that the camera will be angled down (optimised for parking), so would not see all the way down the road.
• Avoids CANBUS issues as the monitor powers the camera from the power supply at the front.
• There are half a dozen brake light camera manufacturers.  We use the one that in our experience has the best image sensor, lens quality, and reliability.  They may not be the cheapest option, but quality and reliability is important to both us and our regular customers.
• 2 Year Guarantee with us, in the unlikely event anything should go wrong.

What vehicle does this fit?

Fiat Ducato 2006-Present (with screw from the front fixings)

Citroen Relay 2006-Present (with screw from the front fixings)

Peugeot Boxer 2006-Present (with screw from the front fixings)

Vauxhall Movano 2022-Present (with screw from the front fixings)

Fitting the brake light camera

Fitting the brake light camera is very simple.  The brake light reversing camera re-uses your existing brake light strip.  Simply remove the existing brake light via the two securing cross head screws.  Gently release the three tabs on the top and bottom of the brake light to release the light strip.  Then transplant this in to the new brake light camera.  Re-screw this back to your vehicle with the two original screws.

See our video below for details about fitting the brake light camera

Choice of kit power options

• On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
• The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
• For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring/fuse tap.
• Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. The most common size fuse found in modern vehicles is the mini blade (size = 10.9mm wide x 16.4mm tall), older vehicles are likely to have the standard blade (size = 19.1mm wide x 18.8mm tall). Download and read our Fuse Tap installation instructions PDF for more information.
• Our fuse taps were designed by us, they have a 200cm lead that connects directly to the monitor socket with no soldering / crimping required. There is a black wire with an earth terminal attached - designed to fix to a chassis bolt/screw.  This earth wire/terminal can be separated away from the red wire to enable you to find the most convenient ground/earth (although often this is next to the fuse box).

Additional monitor bracket/mount options

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

See our video below for details about the brackets in the photo above.

Easy-Fit Wiring

• We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
• This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
• It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
• It keeps contacts clean and dry, plus prevents them from accidental separation.
• It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
• All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

Image Sensor for Camera

This particular system uses the PC4089 1/3" Hi-Res CMOS image sensor (not to be confused with the older technology low res CMOS), this runs at 700TVL and gives a really crisp picture with a good colour replication.  We use 4xglass composite lens instead of the cheaper 2xglass, 2xplastic lenses, which cloud/fade over time due to UV exposure.  With our camera you can be assured of good performance and long term reliability.

Monitor has Digital LCD Panel - Not Standard LCD

Our monitor uses a Hi-Res digital panel LCD screen with an 800x480 pixel display.  To complicate matters we have seen a difference in quality between 800x480 pixel panels. We only stock LCD panels that have the brightest backlights, and the best colour replication.  This costs us approx. 50% more than we could buy the monitors for, however, the reliability, picture quality, our reputation in keeping our many return customers happy, means we are willing to pay the extra (you get what you pay for!).

2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.

Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.
