PM99EW: Premium Reversing Camera Kit - 9" Dash Screen + White "diamond" Shape Reversing Camera Kit

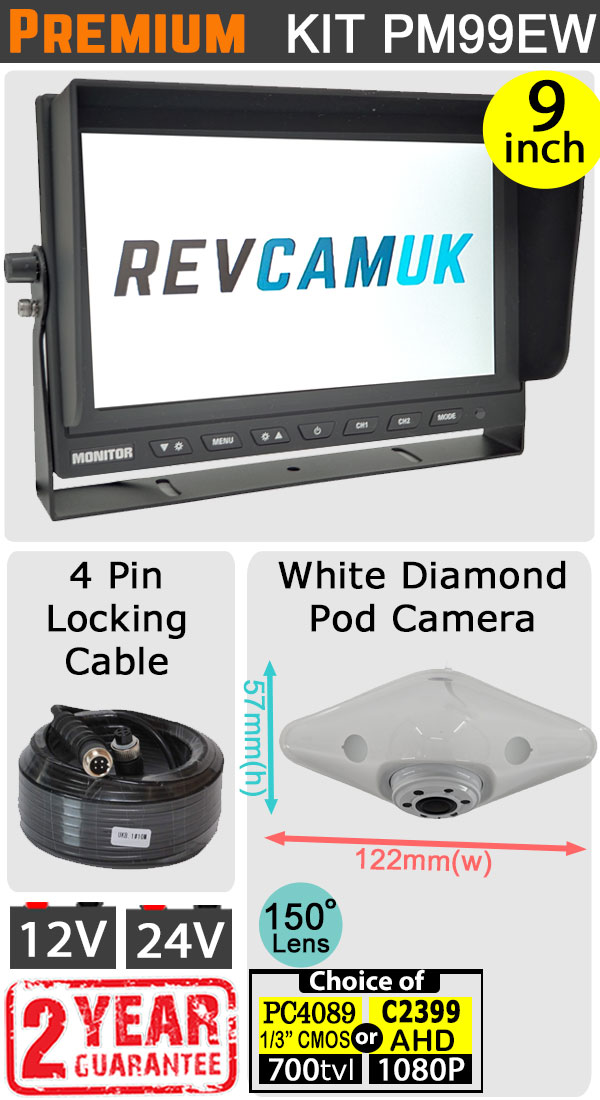

About the 9 inch dash monitor and white "diamond" shape reversing camera kit

• This reversing camera kit comes with a stand on dash monitor display, fitted with a high quality 9" LCD panel. This monitor comes with a "U" bracket side mounting bracket, other mounts can be added using the drop down menu - these other brackets fit the central rear channel.
• Comes with a white diamond shaped reversing camera, fitted with one of two top specification image sensors - either the PC4089 700TVL or C2399 1080P AHD (see more about the upgrade option further down).
• Fitted with a high quality 150 degree wide angle lens - the same all glass composite as we use in our brake light cameras, which avoids the gradual fading over time compared to the cheaper 2xglass, 2xplastic lenses commonly fitted elsewhere.
• Designed to be mounted on the rear wall of a vehicle - ideally high up.
• Can be adjusted to look downwards, or backwards.
• New product for 2023, sure to be popular with Motorhome and Van owners
• Easy to install, with a range of power options. Just one power connection powers the system.
• 2 Year Guarantee and Lifetime Support from the leading UK specialists.

About the C2399 1080P AHD Upgrade Option

• AHD stands for Analogue High Definition - allows long analogue coax cables to be used to transmit high definition digital signal
• Increases monitor display resolution by 60% with an IPS panel upgrade
• Upgraded camera uses an improved C2399 1080P AHD image sensor
• You will experience improved dynamic range, more vivid colours, and superior low light level performance
• Please note that AHD systems take a little longer to change channels/load up (approx. 2 seconds) vs standard CVBS systems.

Rest assured that whichever option you select, you will have a lovely, good quality image!

See our AHD (Analogue High Definition) FAQ page for more info

Choice of kit power options

• On the monitor wiring harness is a 2.1mm DC socket. On the drop down menu of this product, you can select your desired power lead to plug in to this.
• The standard hardwiring is supplied with all options, this terminates in a red wire (+12V/+24V), and black wire (earth).
• For the ultimate quick install is a lighter plug option. Some people also order this just for the initial setup, before changing to the standard hardwiring.
• Fuse taps aka piggyback fuse holders, are the most recent addition to our options. This allows you to "piggyback" off an existing circuit from your fuse box. We have standard blade, mini blade, or micro blade available to match your fuse box. Read our Fuse Tap installation instructions PDF for more information.

Add an additional monitor bracket/mount

We can supply a discounted additional mount/bracket for the monitor when ordered at the same time as the kit.  Please see the photo below, and make your selection using the drop down menu above the add to cart button.

See our video below for details about the brackets in the photo above.

Easy-Fit Wiring

• We have been using this type of cabling since 2007, and it has performed perfectly in all of this time. It is called the 4 pin aviation cable, and uses what is known as a 4 pin GX12 connector.
• This type of connector is very durable, and can be kept outside exposed to rain and freezing temperatures.
• It makes fitting easier, and avoids CANBUS issues due to the monitor powering the camera.
• It keeps contacts clean and dry, plus prevents them from accidental separation.
• It has become the industry standard connector, which means you aren't forced to buy future cameras/cables/upgrades from one retailer - as parts are interchangeable between numerous suppliers (although we are confident you will be impressed enough with us that you will choose us for any future upgrades/spare parts).
• All of our aviation extension cables are high quality, with the inner cores consisting of pure copper. We do not use the cheaper CCA (Copper Coated Aluminium) or CCS (Copper Coated Steel) cables, because they are more prone to failure/degradation over time.

System Suitability

Our systems work on either 12V or 24V, no switches it will adjust to the voltage automatically, this also protects the kit from any surges from the vehicle upto 32V, which is why we have such a good reliability record from these voltage protected kits.

2 Year Guarantee

We supply with a 2 year Guarantee with us, meaning we will repair or replace any non-user damaged parts that are deemed faulty.  Our failure rate is very low even beyond these two years, if you have a problem outside of 2 years we should still have compatible parts and possible repairs for reasonable amounts.

Parts Tested in the UK

The parts of this kit will have been tested twice, once by the factory and once by us.  We check all the items in the kit including all cables, trigger wires, IR leds and menu functions to reduce any chance of having a non working part.  Our fault rate is extremely low, and we just like to ensure that we avoid any imperfection slipping past.  This is why professional fitters love us.
