Quad/Split-Screen 7" Clip-over Rear View Mirror monitor display for 4x reversing camera/side cameras- 4x inputs (720P/960P/1080P/CVBS) | MON293QAHD

Price

£205.00

VAT Included £34.17
Availability IN STOCK
Product Code: MON293QAHD
Quantity
(from 1 to 4)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

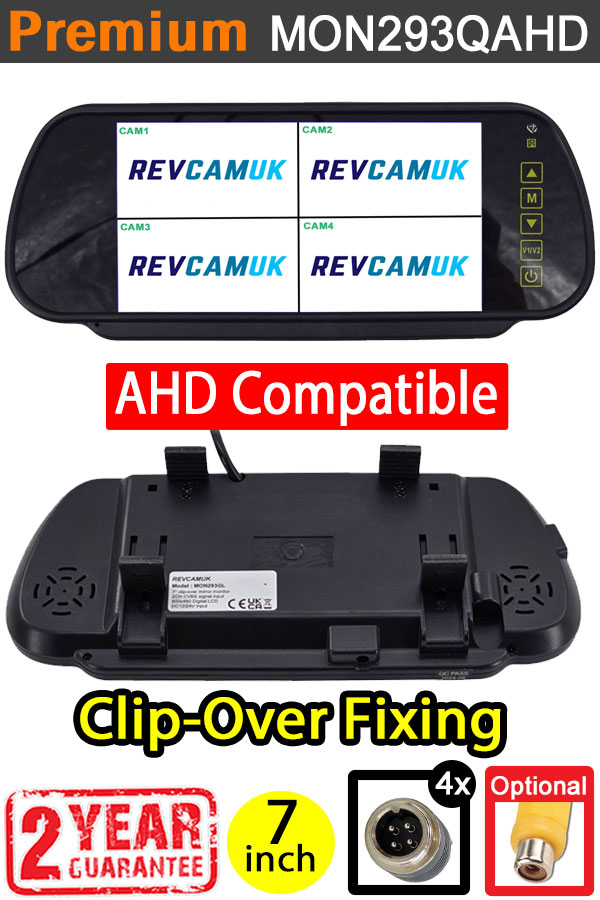

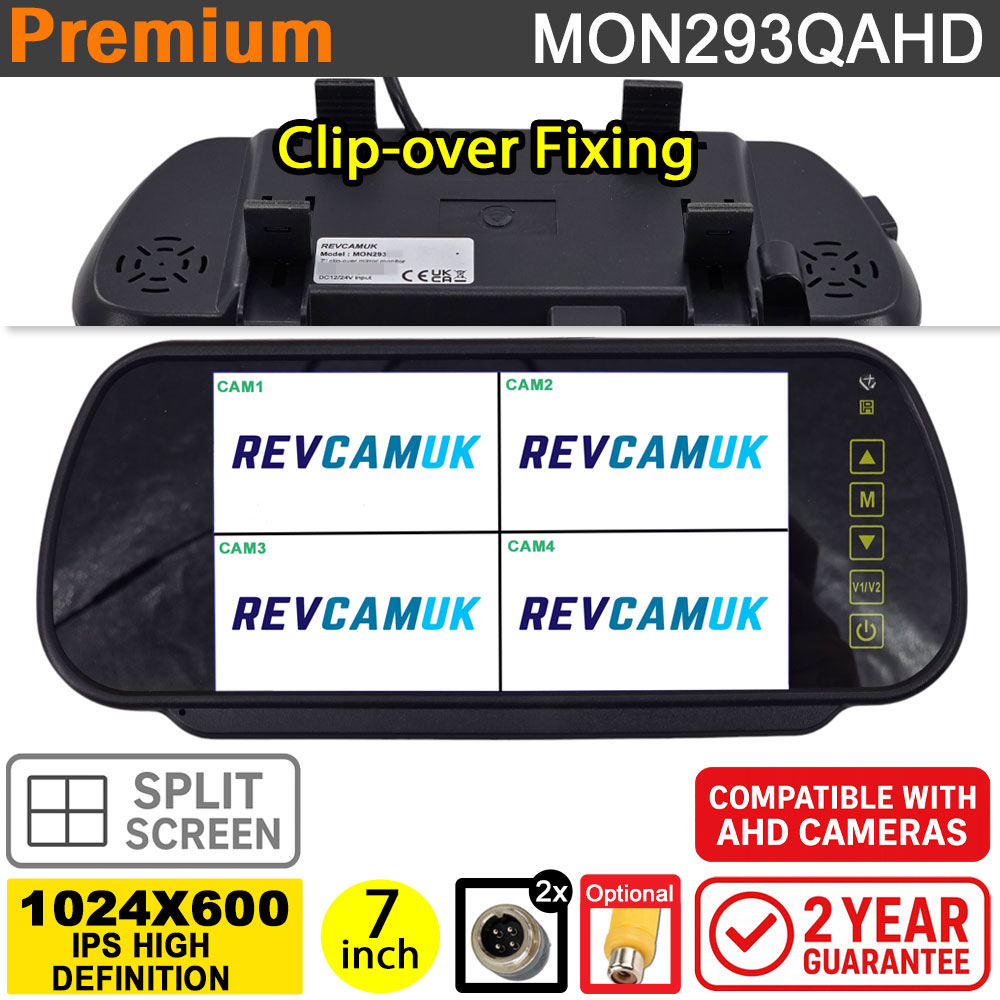

Quad/Split-Screen 7" Clip-over Rear View Mirror monitor display for 4x reversing camera/side cameras

A 4x Channel Split-Screen Mirror Monitor is to be used with our AHD High Definition Range of Side View Blind Spot / Reversing Cameras. Although this can display traditional CVBS cameras, it works better with the newer high-definition AHD series. 1024x600IPS panel, various split screen modes - full channel/two-way splits/three-way splits/four-way splits. This monitor has the strong spring loaded clips/clamps to attach to an existing interior mirror.

  • Works with the latest High Definition AHD Reversing Cameras - The latest model of our AHD high definition reversing camera monitor range. This model allows you to watch multiple cameras simultaneously, arranging them in to either a split screen arrangement or one-at-a-time full screen mode.
  • Great Image Quality with 7" IPS High Definition Display - The monitor is installed with a great quality 1024x600 IPS panel. This type of monitor display technology is popular with the gaming community for monitors. They allow a bright, colourful image, which is visible from a wide array of viewing angles.
  • Multiple Split Screen Modes - The V1/V2 button allows you to cycle through the many split screen modes that the monitor can display. The first 4 are the individual channels in full screen mode, whilst subsequent modes go between the various 2/3/4 channel split arrangements.
  • 4x 4 Pin Aviation Connector Inputs - We always believe in giving customers the most flexible installation possible. We have always avoided using any proprietary connectors to lock you in to only using our equipment, instead we have always opted for universal standard connectors - the 4 pin aviation/screw. We firmly believe this is the best camera connector type and have sold it since the early 2000's. Waterproof, durable and screws together and locks up.
  • Fits to Existing Interior Mirror - The rear of the monitor is fitted with strong, spring loaded clamps that secure against an existing interior mirror.
  • Works on 12V and 24V Vehicles -  The monitor can accept either 12V power or 24V power and adapt automatically to whichever it is provided with. The monitor will always regulate the supply down to 12V to your rear camera(s).
  • Two-Year Guarantee - This monitor is very durable and reliable and comes with our respected two-year guarantee. In the unlikely event anything should go wrong with the monitor during this time period we will either repair or replace the unit.
  • 4x Trigger Wires e.g. Reverse Gear / Indicator Lights (Optional to attach) - Lots of customers like using trigger wires as a handsfree way of checking on an area of interest when an event occurs e.g. reversing. If you link the related trigger wire for the channel you have inserted you reversing camera with a positive power feed for the reverse light, every time you select reverse gear the monitor will full screen that channel. These wires aren't necessary for you to use, after all with a split screen monitor you are able to see multiple channels at once.

Please kindly note :- Although the monitor can be used with traditional standard definition (SD) reversing cameras, we find that the result is not as good as a dedicated standard definition monitor.  This monitor will perform at its best with AHD signal reversing cameras.

Detailed Images
Video

Quad Split Screen Mirror Monitor AHD

Our 4 Channel Split Screen AHD Mirror Monitor for High Definition Blind Spot + Reversing Cameras.

7 inch HD 1080P Quad Mirror Monitor
Video format: AHD/CVBS
Screen size: 7" IPS HD Screen
Resolution: 1024(W)*RGB*600(H)
Display ratio: 16:9
System: PAL/NTSC
Voltage: DC 9-36V
Brightness: LED Luminance 500cd/m2
Contrast: 350:1
Power consumption: 12W
Color: black
Four Video AV input,4 trigger wires
Split modes: 14 types
Adjustable image: Full /2/3/4 image
Viewing angle: L/R 75/75 U/D 75/75
OSD menu, Remote control
Connector: 4Pin aviation
Operating Temperature: -20℃~70℃
Storage Temperature: -30℃~80℃
