RV207 compatible adaptor + driving camera bundle | CAB99M+CAM222W-45

Price

£70.00

VAT Included £11.67
Availability IN STOCK
Product Code: CAB99M+CAM222W-45
Quantity
(from 1 to 6)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

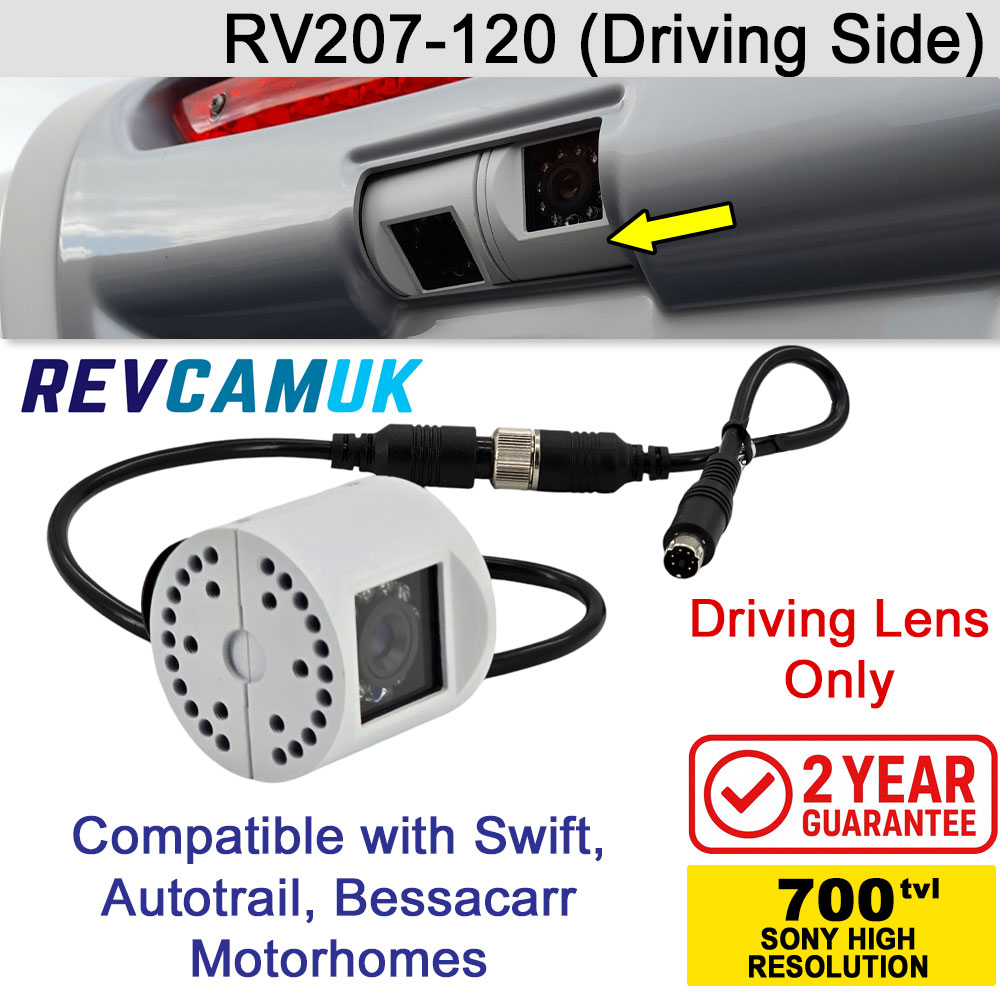

About the Swift, Autotrail, Bessacarr RV-207 compatible reverse camera/adaptor set

  1. The RV-207 reverse camera is often seen on Swift, Autotrail, and Bessacarr motorhomes. It is a twin camera system that runs to a Sargent Electrical EM5 series control box. This discounted bundle includes compatible driving camera, plus an adaptor lead to convert it to the 6 pin connector required.
  2. The camera is fitted with a high spec 1/3" Sony CCD image sensor, and an 8mm lens to give 45 degrees (the best angle for rear view/always on driving).
  3. As our camera uses a 4 pin connector, this bundle includes a discounted adaptor, which converts our 4 pin connector to the same 6 pin connector required on the original cabling.
  4. We have sold many hundreds of these bundles over the years with total success.

Image Sensor for Camera

The image sensor fitted inside the camera is Sony's 1/3" CCD 700TVL version.  We consider this joint best in terms of performance, in non high definition cameras (HD cameras require special monitors). Rest assured that the quality of the image will be very good with this camera.

image sensor inside camera
FAQ'S

Absolutely not. Most cameras only require between 3-4 pins to be in use.  On the reversing camera, the adaptor does have a tail coming off (similar to what is on the original camera), this does allow the reverse light feed to run down one of the 6 pins to the EM 5 Series box at the front of the vehicle.

Many hundreds.  We have had no issues in replacing the cameras with one of ours.  The original supplier is presently referring customers to us for replacements.

Detailed Images
Video

Our Guide to replacing parts on a Sargent Electrical Twin Reverse Camera Kit

Video detailing our compatible bundles that will fit to Swift/Autotrail/Bessacarr motorhomes fitted with the Sargent Electrical Twin Lens Driving / Reversing Camera System

Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Apect Ratio of output: 4:3
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR LEDs on)
Waterproof to Ip68
Infrared LEDs to provide night view
8mm - 45-degree lens
Mirror image
