Sony 1080P AHD Signal Compact Black Reversing Camera with Polished Stainless Steel bracket | 4 pin connector | CAM111B-AHD-120

Price

£89.00

VAT Included £14.83
Availability IN STOCK
Product Code: CAM111B-AHD-120
Extension Cable?
I have read and understood about compatibility *
Quantity
(from 1 to 50)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

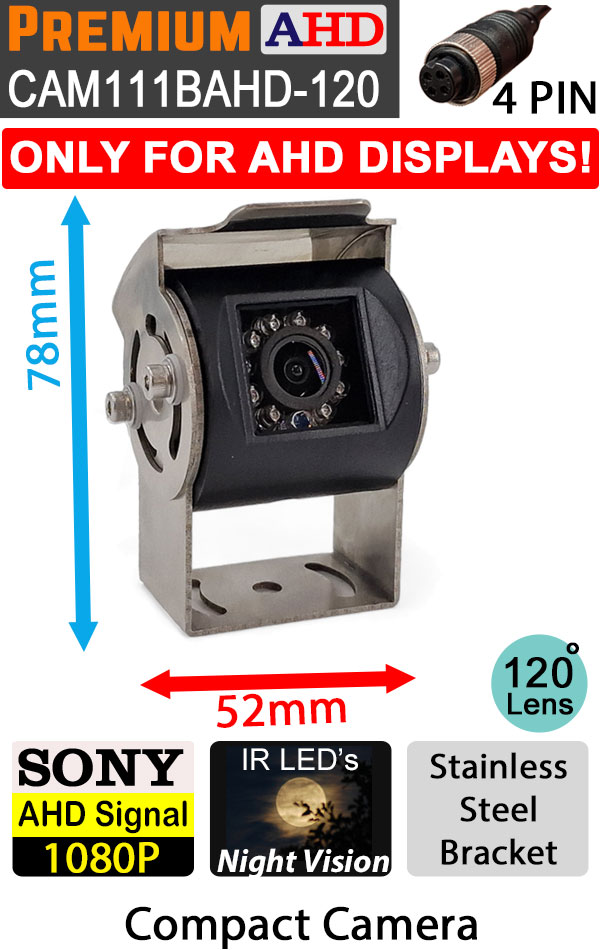

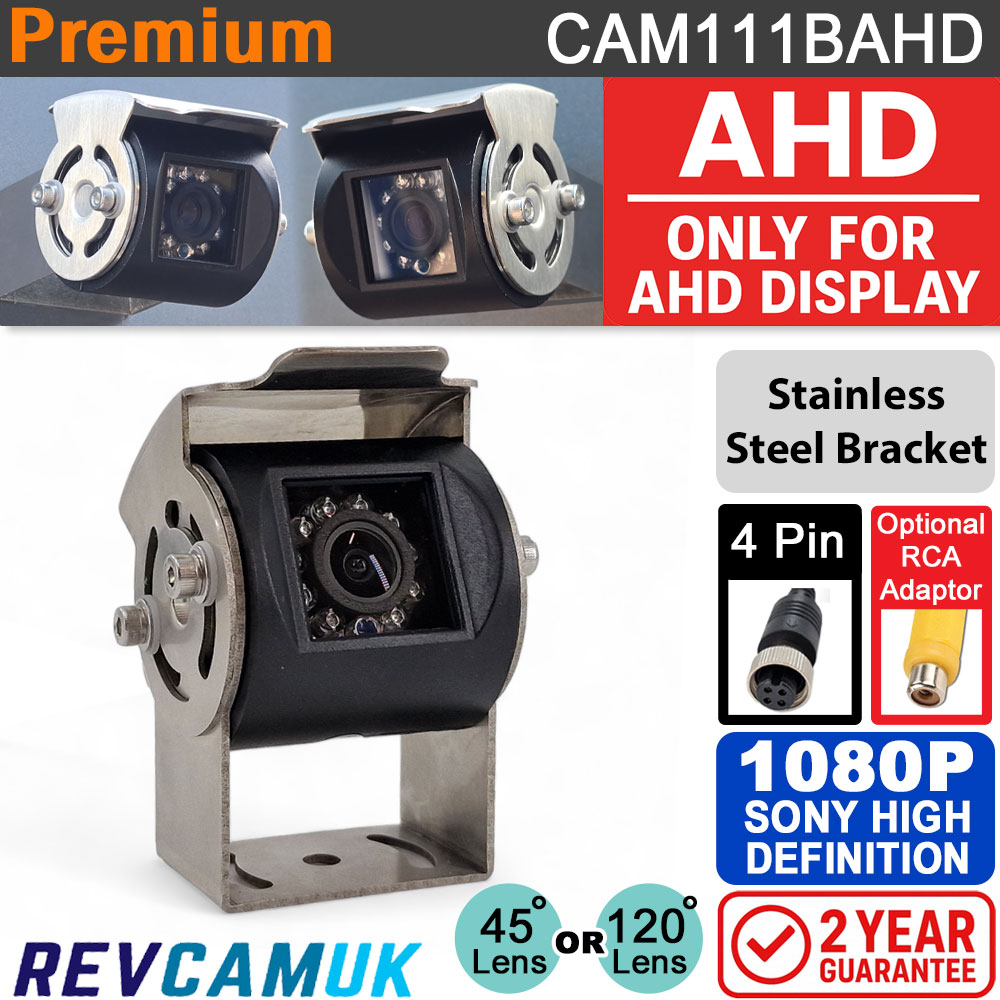

About the Compact Polished Stainless Steel Bracket with Black Sony AHD Reversing Camera with 4 pin Screw Connector

AHD signal reverse cameras will NOT work with 99% of monitors and car stereos currently in use. This camera requires a special AHD monitor that can read the AHD signal produced by the camera. Ensure your AHD monitor or recorder can handle 1080P AHD inputs.  If you do not have a confirmed AHD monitor, then please purchase instead from our large range of high resolution traditional cameras.

We have stocked a twin lens camera for more than a decade that uses two cameras with a compact 50mm width case. Because we frequently get asked by customers if they can use just the one in a small bracket, and because we like to listen and learn from customers, we decided to get a bracket specially produced to house our large selection of twin lens camera units. The unit fitted to the camera provided in this listing is the 120° wide angle parking/reversing camera.

Please note that this can ONLY be used with 1080P AHD PAL signal compatible displays. Most screens available today still aren't compatible with this signal so please double check before ordering.

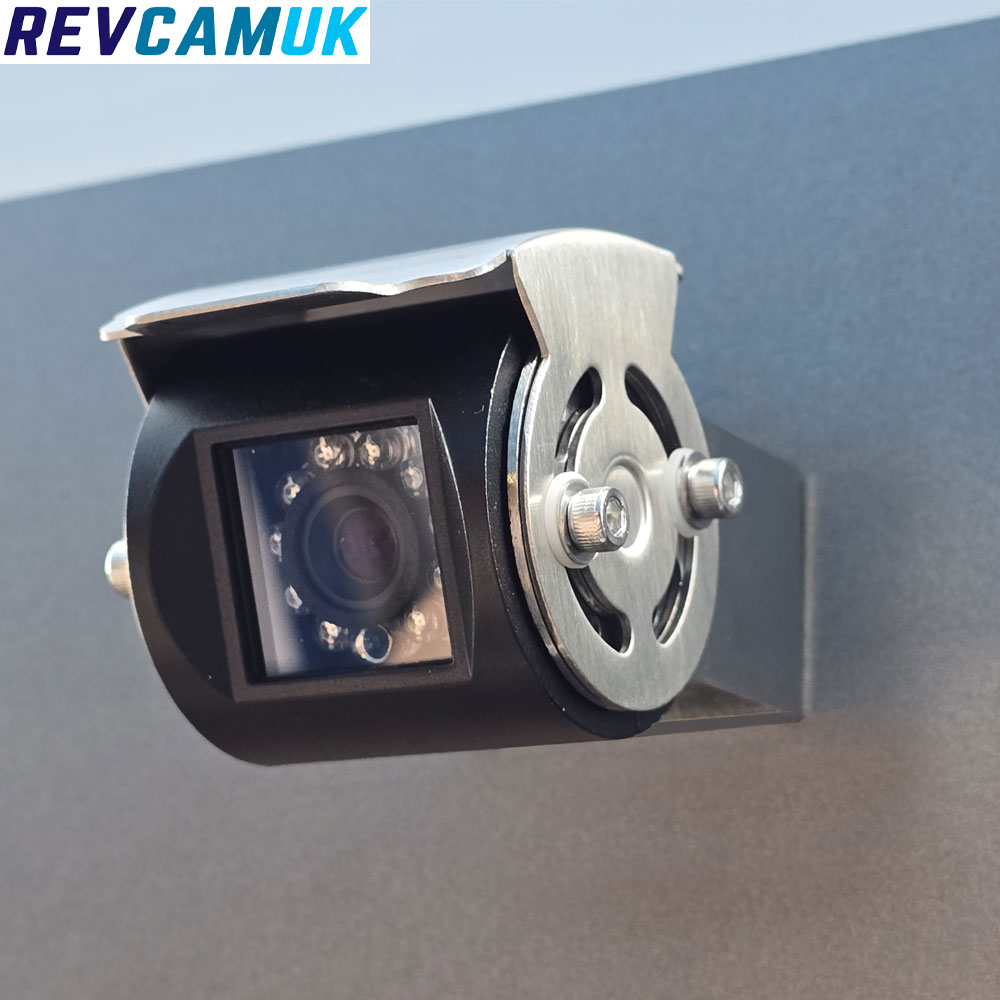

  • Bracket reversing cameras such as this one are still the most popular style of camera, especially with motorhomes, caravans, HGV, and vans.
  • The camera bracket is made from corrosion resistant polished stainless steel.
  • The image sensor is made by Sony, it is a 1/2.9" AHD image sensor.  This means you get good day and night picture.
  • There are night vision IR LED's fitted to allow you to see in the dark when parking.  These come on automatically as the light level drops.  The light is only visible to the camera, it won't shine distracting light at any vehicles behind you.
  • The reversing camera will send a mirror image to the monitor.  This is essential for cameras pointing backwards, to ensure that the obstacles on your left are displayed to the left of the display - like a mirror does.
  • The camera will cope with whatever the weather can throw at it as it is waterproof to IP68.
  • The reversing camera has approximately 120 degree viewing angle (diagonally measured).
  • The camera has a fly lead with a 4 pin screw connector (also known as an aviation connector). This is our preferred type of connector.

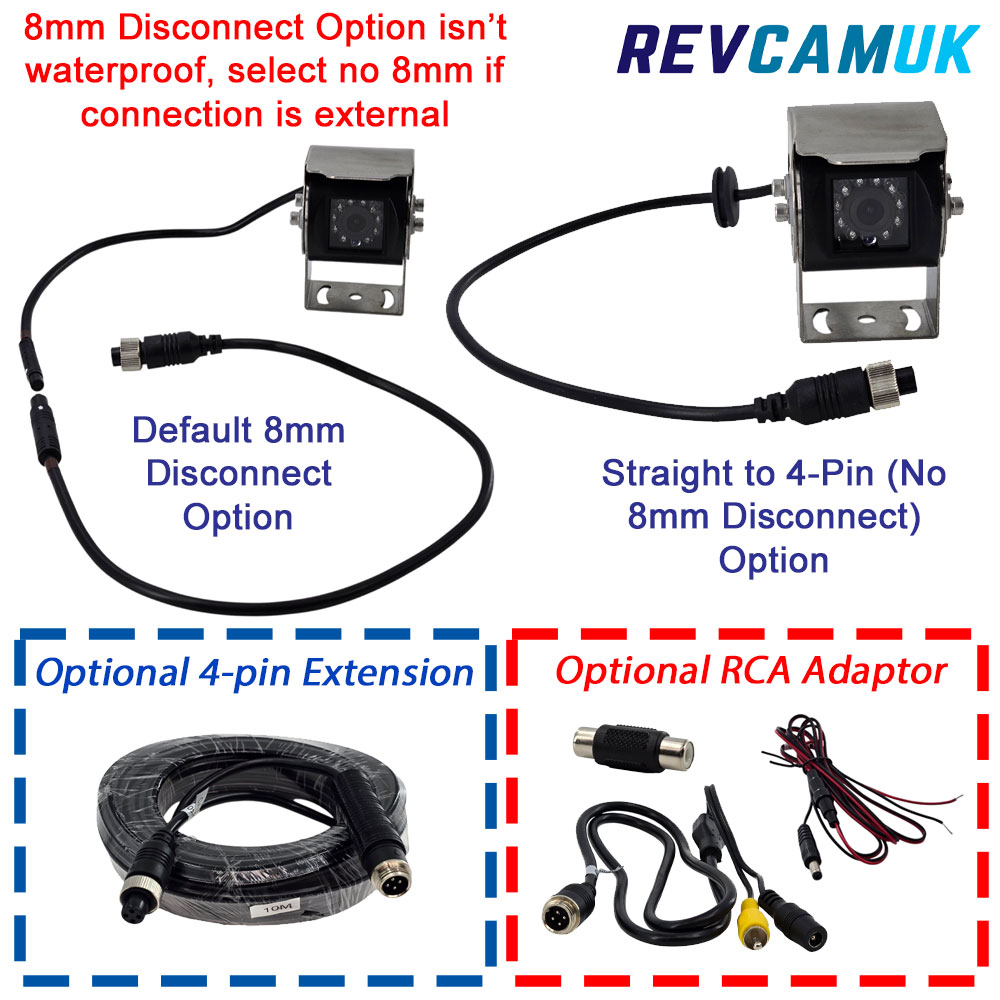

  • We have placed a small 8mm disconnect point on the cable from the camera to the 4 pin screw connector (15mm).  This is so you can reduce the hole size drilled for cable entry. This 8mm disconnect must be inside as it is not waterproof like the 4 pin connector is.  If you plan to run the cable externally, please leave us a customer note on the last page of checkout saying "no 8mm disconnect on camera fly lead", and we will send a version that does not have this feature.

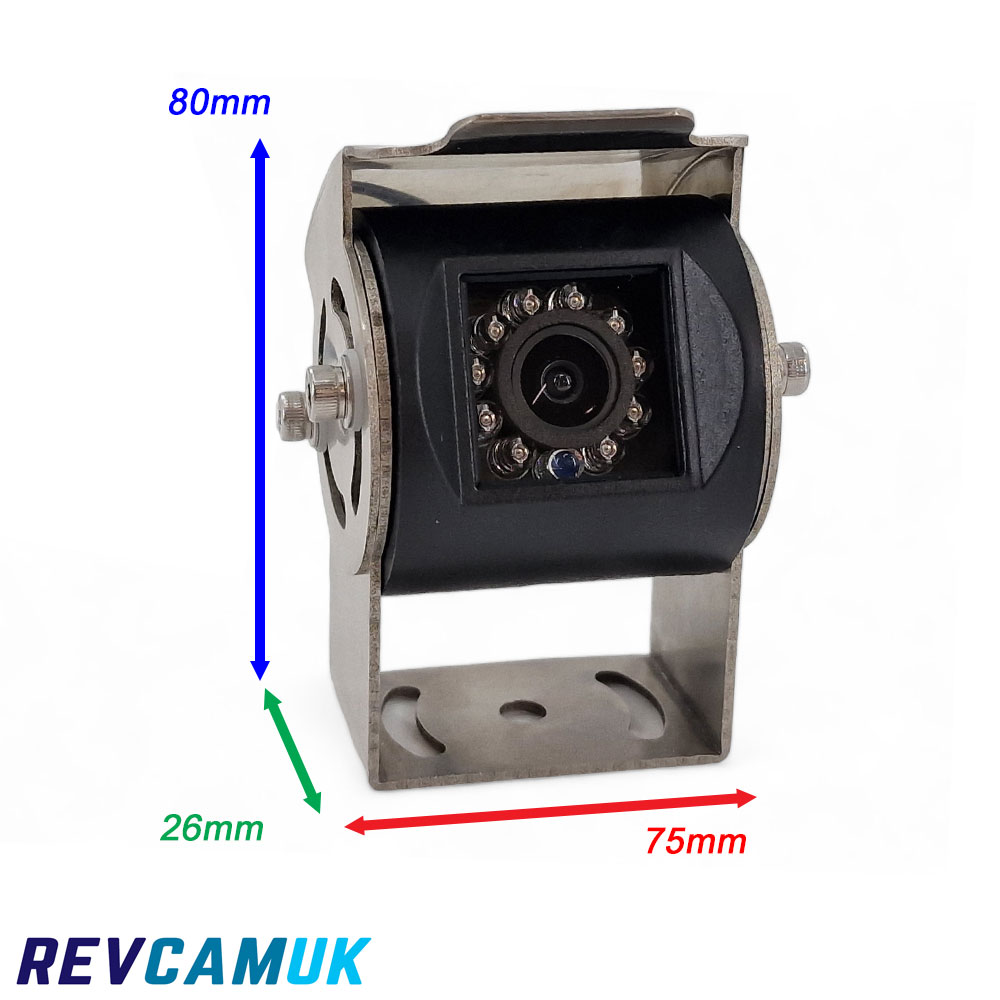

Anti-Corrosion Stainless Steel Camera Bracket

The camera has a stainless steel bracket, which is shown to last a very long time without corrosion, unlike mild steel we have seen from most other retailers, which tends to rust in a matter of a few months.

stainless steel bracket for reversing camera

See our general guide to installing 4 pin reversing cameras.  This includes fitting to stereos inc Kenwood / Sony / Pioneer etc.

Fitting guide for 4 pin reversing cameras including to stereo headunits

Image sensor: Sony IMX307
Resolution: 1920*1080P (2 million pixels)
Night Vision: Yes
Wide Dynamic: Support (mobile frame rate 100DB)
SNR: >52DB (AGC OFF)
System: PAL
Image: Mirror image
Waterproof Level: IP68
Shockproof Level: 4G
Connectors: 4 Pin aviation+8mm disconnect
Power Supply: 12V (our monitors supply 12V to the camera regardless of their input voltage)
Power Consumption: Approx 1.8W per camera
Video Output: 1080P
Working Temperature: -20°C to +70°C
Storage Temperature: -30°C to 85°C
Stainless Steel Bracket (polished)
Built-in Lens: 3.6mm
