Quad/Split-Screen 7" Windscreen Bracket Rear View Mirror monitor display for 4x reversing camera/side cameras- 4x inputs (720P/960P/1080P/CVBS) | MON293BQAHD

Price

£205.00

VAT Included £34.17
Availability IN STOCK
Product Code: MON293BQAHD
Bracket Option? (see pictures)
Quantity
(from 1 to 5)

If you'd like this by

Order within ::

(Please select Next Day Delivery Option - Mainland UK only) Terms Apply

Description

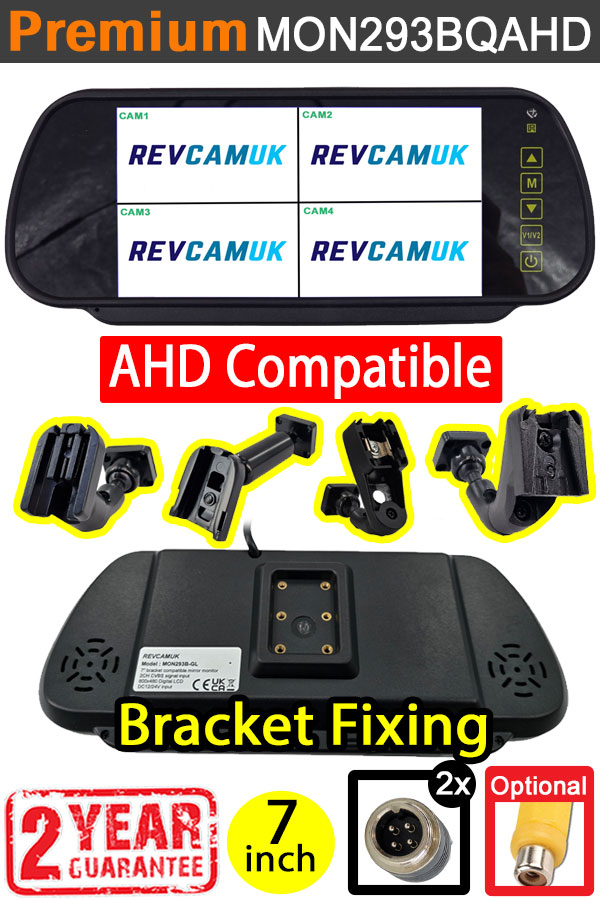

Quad/Split-Screen 7" Windscreen Bracket Rear View Mirror monitor display for 4x reversing camera/side cameras

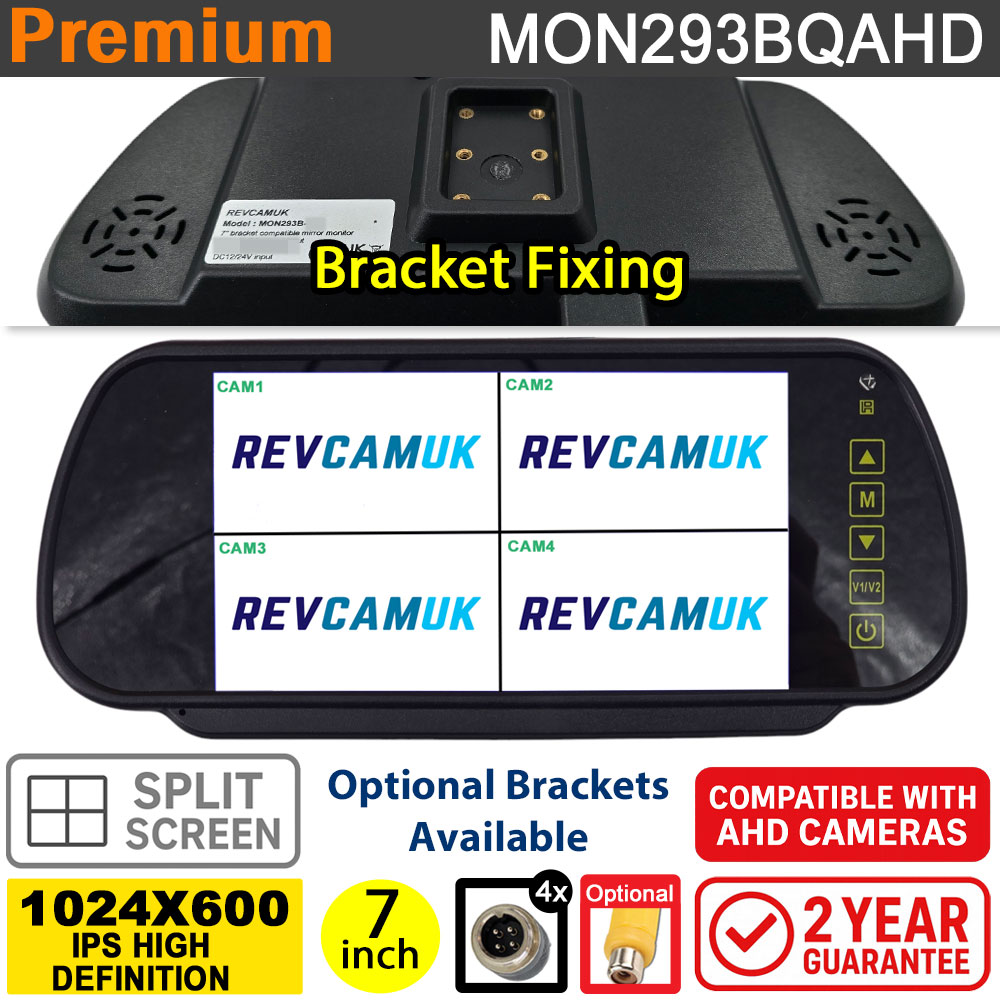

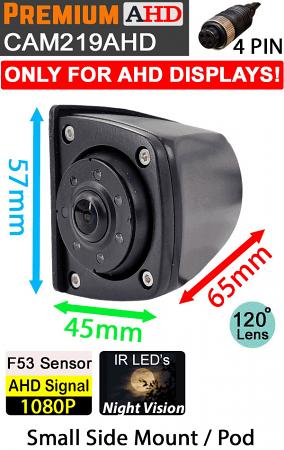

A 4x Channel Split-Screen Mirror Monitor is to be used with our AHD High Definition Range of Side View Blind Spot / Reversing Cameras. Although this can display traditional CVBS cameras, it works better with the newer high-definition AHD series. 1024x600IPS panel, various split screen modes - full channel/two-way splits/three-way splits/four-way splits. This monitor has the rear mounting holes to accept our range of mirror monitor brackets to attach directly to windscreen.

  • Works with the latest High Definition AHD Reversing Cameras - The latest model of our AHD high definition reversing camera monitor range. This model allows you to watch multiple cameras simultaneously, arranging them in to either a split screen arrangement or one-at-a-time full screen mode.
  • Great Image Quality with 7" IPS High Definition Display - The monitor is installed with a great quality 1024x600 IPS panel. This type of monitor display technology is popular with the gaming community for monitors. They allow a bright, colourful image, which is visible from a wide array of viewing angles.
  • Multiple Split Screen Modes - The V1/V2 button allows you to cycle through the many split screen modes that the monitor can display. The first 4 are the individual channels in full screen mode, whilst subsequent modes go between the various 2/3/4 channel split arrangements.
  • 4x 4 Pin Aviation Connector Inputs - We always believe in giving customers the most flexible installation possible. We have always avoided using any proprietary connectors to lock you in to only using our equipment, instead we have always opted for universal standard connectors - the 4 pin aviation/screw. We firmly believe this is the best camera connector type and have sold it since the early 2000's. Waterproof, durable and screws together and locks up.
  • Fits our range of Windscreen Stalk Mount Brackets - The rear of the monitor is fitted with screw holes that allow our wide range of rear view mirror monitor mounting brackets to secure the monitor directly to the windscreen.
  • Works on 12V and 24V Vehicles -  The monitor can accept either 12V power or 24V power and adapt automatically to whichever it is provided with. The monitor will always regulate the supply down to 12V to your rear camera(s).
  • Two-Year Guarantee - This monitor is very durable and reliable and comes with our respected two-year guarantee. In the unlikely event anything should go wrong with the monitor during this time period we will either repair or replace the unit.
  • 4x Trigger Wires e.g. Reverse Gear / Indicator Lights (Optional to attach) - Lots of customers like using trigger wires as a handsfree way of checking on an area of interest when an event occurs e.g. reversing. If you link the related trigger wire for the channel you have inserted you reversing camera with a positive power feed for the reverse light, every time you select reverse gear the monitor will full screen that channel. These wires aren't necessary for you to use, after all with a split screen monitor you are able to see multiple channels at once.

Bracket Ordering Guide (see images for more info)

The monitor has 6 screw holes to the rear, of which 4 can be used to mount any of our direct to windscreen mirror monitor mounting brackets below :

ACCMB1

We usually see this on Mercedes Sprinter vans with auto wipers and/or lights. If the van does not have this function then please see ACCMB5 further down.


ACCMB2

We usually see this on Ford Transits, although we have seen it fitted to others.  This stub is sometimes known as "the universal button" because it is the easiest windscreen button to glue up.  Plus it is the perfect size to add mounting plates on - see below options.

Swan neck bracket to fit Ford button for rear view mirror monitor

ACCMB2 + MP35

This fits to a type of windscreen button typically found on later versions of Fiat Ducato, Peugeot Boxer, and Citroen Relay vans (those fitted without rain sensors). It usually has a black circular cover over it, as well as a spring clip, both of these need removing prior to install.  We used to stock a twist version of the swan neck bracket, but we much prefer this method due to the ease of fitting.

Mirror swan neck bracket for rear view mirror monitor to fit Fiat Ducato, Peugeot Boxer, and Citroen Relay

ACCMB2+button+glue

If you have any vehicle which is missing a windscreen button then you can order this bracket kit, it comes with Loctite 319 rear view mirror bonder, this was recommended to us by a fitter who installs lots of these.

Add a Ford windscreen button to the windscreen for a rear view mirror monitor with loctite 319 glue

ACCMB3

This is usually seen on some Volkswagens (not the Crafter), Transporters, and 2017+ Crafters tend to come with this style button.

Volkswagen rear view mirror swan neck mount for rear view mirror lcd screen

ACCMB5

This has been seen on a range of vehicles, the most popular use is the Mercedes Sprinter (up until today) and VW Crafters (up until 2017).

Mercedes and VW crafter windscreen mount for rear view mirror monitor

ACCMB6

A universal ceiling mount, for installing on any vehicle with the spare space to screw in to.

Ceiling bracket for mirror monitor

ACCMB7

Often seen on earlier models of the Fiat Ducato/Peugeot Boxer/Citroen Relay vans.

Ducato/Boxer/Relay earlier van windscreen swan neck bracket mount

ACCMB8

Often seen on Renault Master, Vauxhall Viaro/Movano, and Nissan NV400 vans.

Rear View Mirror Monitor Mount option for Renault Master Nissan NV400 Vauxhall Vivaro Movano


Please kindly note :- Although the monitor can be used with traditional standard definition (SD) reversing cameras, we find that the result is not as good as a dedicated standard definition monitor.  This monitor will perform at its best with AHD signal reversing cameras.

Detailed Images
Video

Quad Split Screen Mirror Monitor AHD

Our 4 Channel Split Screen AHD Mirror Monitor for High Definition Blind Spot + Reversing Cameras.

7 inch HD 1080P Quad Mirror Monitor
Video format: AHD/CVBS
Screen size: 7" IPS HD Screen
Resolution: 1024(W)*RGB*600(H)
Display ratio: 16:9
System: PAL/NTSC
Voltage: DC 9-36V
Brightness: LED Luminance 500cd/m2
Contrast: 350:1
Power consumption: 12W
Color: black
Four Video AV input,4 trigger wires
Split modes: 14 types
Adjustable image: Full /2/3/4 image
Viewing angle: L/R 75/75 U/D 75/75
OSD menu, Remote control
Connector: 4Pin aviation
Operating Temperature: -20℃~70℃
Storage Temperature: -30℃~80℃
